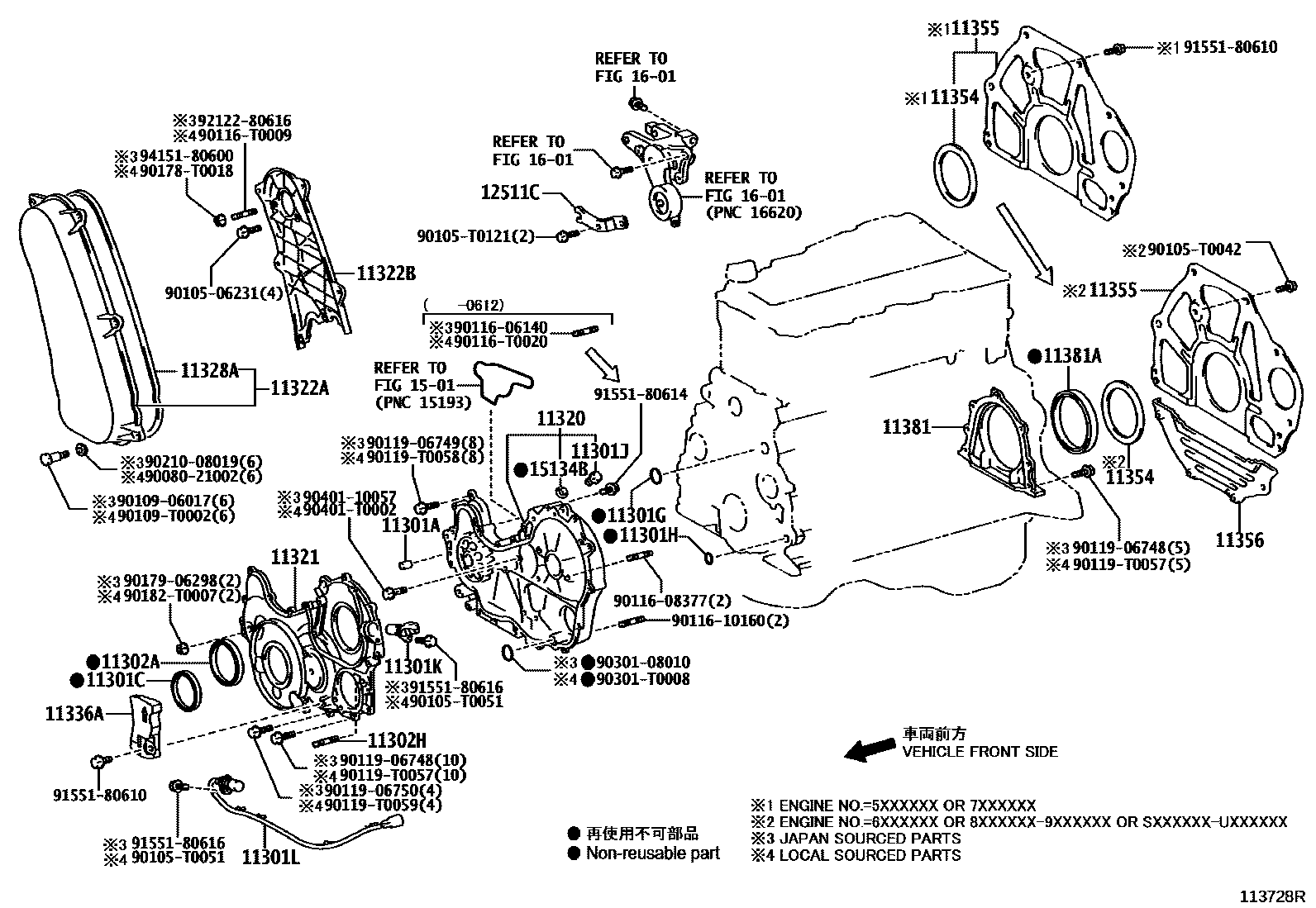

TIMING GEAR COVER & REAR END PLATE

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i2KDFTV..KUN25..DCB,SCB200507-201108

L=18,OD=8,*163 OR *184

main90250-T0007i2KDFTV..KUN25..XTR200507-200610

L=18,OD=8,*130

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90080-31096i2KDFTV..KUN25..XTR200507-200610

*130

sub90311-T0054

main90311-50017i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

*163 OR *184

sub90311-50051

main90311-50017i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

sub90311-50051

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90301-22007i2KDFTV..KUN25..DCB,SCB200507-201108

*163 OR *184

main90301-T0010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-09018i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200507-201108

*163 OR *184

main90301-T0012i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-18015i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

main90341-18015i1KDFTV..KUN26..5F,5FC200808-201108

*163 OR *184

11301KSENSOR, CRANK POSITION

main90919-05025i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

*163 OR *184

main90919-05025i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

11301LSENSOR, CRANK POSITION NO.2

main90919-05050i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

main90919-05050i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

*163 OR *184

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90080-31098i2KDFTV..KUN25..XTR200507-200610

*130

main90311-65003i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

main90311-65003i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

*163 OR *184

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08374i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200608-200810

*163 OR *184

sub92122-80828

main90116-08374i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-200901

sub92122-80828

main90116-08376i2KDFTV..KUN25..XTR200507-200610

*130

sub90116-08377

main90116-08377i1KDFTV,2KDFTV..KUN15,2#200901-201108

11320CASE ASSY, TIMING GEAR

main11320-0L030i2KDFTV..KUN15,25..XTR200507-200608

*130

main11320-0L050i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main11320-30040i2KDFTV..KUN15,25200507-200603

*163 OR *184

sub11320-30060

main11320-30060i2KDFTV..KUN25..DCB,SCB200603-201108

*163 OR *184

main11320-30070i1KDFTV..KUN26..4FC,5F200610-201108

*163 OR *184

11321CASE, TIMING GEAR

main11321-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main11321-30020i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

*163 OR *184

main11321-30020i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

11322ACOVER, TIMING BELT, NO.1

main11332-0L010i2KDFTV..KUN15,25..XTR200507-200608

*130

main11332-0L020i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

sub11332-30020

main11332-30020i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

main11332-30020i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-201108

11322BCOVER, TIMING BELT, NO.2

main11322-0L010i2KDFTV..KUN15,25..XTR200507-200608

*130

main11322-0L020i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main11322-30010i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-201108

main11322-30010i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

11328AGASKET, TIMING BELT COVER, NO.1

main11328-30020i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

11336AINSULATOR, TIMING GEAR COVER

main11336-30010i2KDFTV..KUN25..DCB,SCB,XTR;1KDFTV,2KDFTV..KUN2#..LHD..(THDCB,THSCB);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB)..(5F,5FC)200608-201108

11354SEAL, FLYWHEEL HOUSING DUST

main11354-30010i2KDFTV..KUN25..XTR200507-200610

*130

main11354-30010i2KDFTV..KUN25..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN15,26..4FC,5F200507-201108

*163 OR *184

11355PLATE, REAR END

main11355-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main11355-67011i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200507-201108

*163 OR *184

11356PLATE, REAR END, NO.2

main11356-0L010i1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR200507-201107

sub11356-0L011

main11356-0L020i1KDFTV,2KDFTV..KUN15,2#..DCB,SCB200507-201108

sub11356-0L021

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0K010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main11381-67020i2KDFTV..KUN25..DCB,SCB200507-201108

*163 OR *184

11381ASEAL, ENGINE REAR OIL

main90080-31100i2KDFTV..KUN25..XTR200507-200610

*130

sub90311-T0046

main90311-95008i2KDFTV..KUN25..DCB,SCB200507-201108

*163 OR *184

12511CBRACKET, ALTERNATOR

main12511-0L010i1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR200507-201107

sub12511-30030

main12511-0L020i1KDFTV,2KDFTV..KUN15,2#..DCB,SCB200507-201108

1501

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main15134-67010i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

*163 OR *184

main15134-67010i2KDFTV..KUN25..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN15,26..4FC,5F200507-200810

ENGINE NO.=7XXXXXX

1601

9008021002

main90080-21002

9010506231

main90105-06231

90105T0042

main90105-T0042

90105T0051

main90105-T0051

90105T0121

main90105-T0121

9010906017

main90109-06017

90109T0002

main90109-T0002

9011606140

main90116-06140

9011608377

main90116-08377

9011610160

main90116-10160

90116T0009

main90116-T0009

90116T0020

main90116-T0020

9011906748

main90119-06748

9011906749

main90119-06749

9011906750

main90119-06750

90119T0057

main90119-T0057

90119T0058

main90119-T0058

90119T0059

main90119-T0059

90178T0018

main90178-T0018

9017906298

main90179-06298

90182T0007

main90182-T0007

9021008019

main90210-08019

9030108010

main90301-08010

90301T0008

main90301-T0008

9040110057

main90401-10057

90401T0002

main90401-T0002

9155180610

main91551-80610

9155180614

main91551-80614

9155180616

main91551-80616

9212280616

main92122-80616

9415180600

main94151-80600
