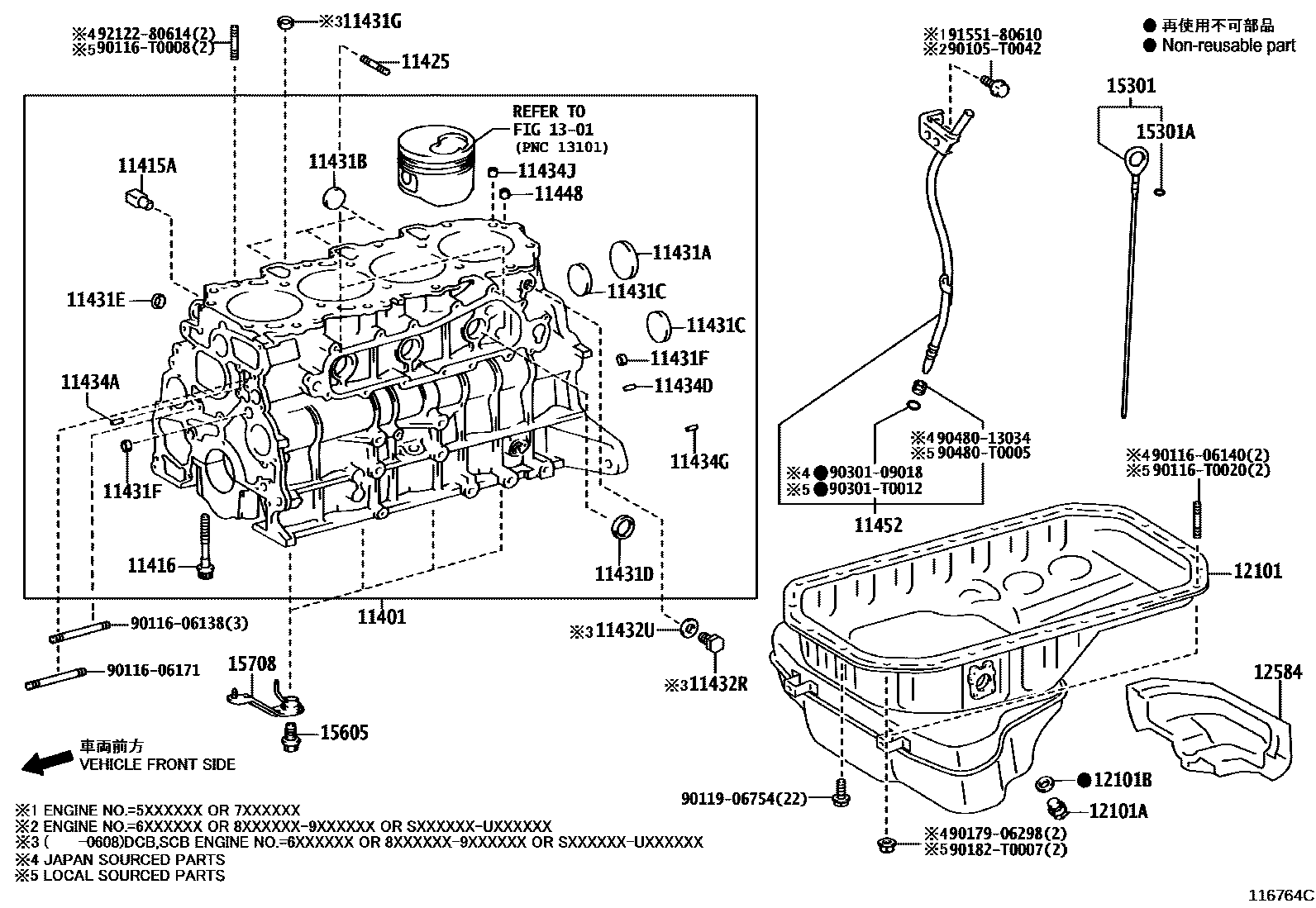

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-09360i2KDFTV..KUN25..XTR200507-200610

sub11401-09491

main11401-39895i1KDFTV..KUN26..5F,5FC200610-200908

sub11401-39896

main11401-39896i1KDFTV..KUN26200908-201103

sub11401-39897

main11401-39897i1KDFTV..KUN26201103-201108

sub11401-39898

main11401-80762i2KDFTV..KUN15,25200608-200903

sub11401-80778

main11401-80778i2KDFTV..KUN15,25200903-200908

sub11401-80782

main11401-80780i2KDFTV..KUN25200908-201108

main11401-80782i2KDFTV..KUN15200908-201108

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90334-14002i2KDFTV..KUN15200903-201108

*163 OR *184

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02113i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

main90910-T2003i2KDFTV..KUN15,25..XTR200507-200608

*130

sub90910-T2009

11425BOLT, STUD(FOR OIL FILTER)

main90116-06171i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200507-201108

*163 OR *184

main90116-T0012i2KDFTV..KUN15,25..XTR200507-200608

*130

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-T0008i2KDFTV..KUN15,25..XTR200507-200608

*130

main96411-64500i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200507-201108

*163 OR *184

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-T0005i2KDFTV..KUN15,25..XTR200507-200608

*130

main96411-63500i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90331-T0007i2KDFTV..KUN15,25..XTR200507-200608

*130

main96411-64000i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200507-201108

*163 OR *184

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-35004i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

main90331-T0002i2KDFTV..KUN15,25..XTR200507-200608

*130

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-T0003i2KDFTV..KUN15,25..XTR200507-200608

*130

main96411-62000i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main90331-T0006i2KDFTV..KUN15,25..XTR200507-200608

*130

main96411-61800i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

11431GPLUG, TIGHT

main90331-14006i2KDFTV..KUN15,25..DCB,SCB200507-200608

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

main90341-12006i2KDFTV..KUN15,25..DCB,SCB200507-200608

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-12221i2KDFTV..KUN15,25..DCB,SCB200507-200608

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

L=18,OD=8,*163 OR *184

main90250-T0007i2KDFTV..KUN15,25..XTR200507-200608

L=18,OD=8,*130

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

L=11,OD=6,*163 OR *184

main90250-T0012i2KDFTV..KUN15,25..XTR200507-200608

L=11,OD=6,*130

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10192i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

main90250-T0008i2KDFTV..KUN15,25..XTR200507-200608

*130

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15016i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

main90253-T0002i2KDFTV..KUN15,25..XTR200507-200608

*130

11448ORIFICE, CYLINDER BLOCK OIL

main11448-0L010i2KDFTV..KUN15,25..XTR200507-200608

*130

main11448-67010i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200507-201108

*163 OR *184

11452GUIDE, OIL LEVEL GAGE

main11452-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main11452-30070i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200507-201108

*163 OR *184

12101PAN SUB-ASSY, OIL

main12101-0L040i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main12101-30090i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

main12101-30090i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

*163 OR *184

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

main90341-T0004i2KDFTV..KUN25..XTR200507-200610

*130

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main90430-12031i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-0L010i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0L030i2KDFTV..KUN25..XTR200507-200610

*130

main15301-30070i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

15301ARING, O(FOR OIL LEVEL GAGE)

main90301-T0018i2KDFTV..KUN25..XTR200507-200610

*130

main96741-19005i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

15605VALVE SUB-ASSY, OIL CHECK

main15605-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main15605-17030i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0L011i2KDFTV..KUN25..XTR200507-200610

*130

main15708-30011i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

*163 OR *184

90105T0042

main90105-T0042

9011606138

main90116-06138

9011606140

main90116-06140

9011606171

main90116-06171

90116T0008

main90116-T0008

90116T0020

main90116-T0020

9011906754

main90119-06754

9017906298

main90179-06298

90182T0007

main90182-T0007

9030109018

main90301-09018

90301T0012

main90301-T0012

9048013034

main90480-13034

90480T0005

main90480-T0005

9155180610

main91551-80610

9212280614

main92122-80614

43 parts on this diagram · 1 diagram in section
