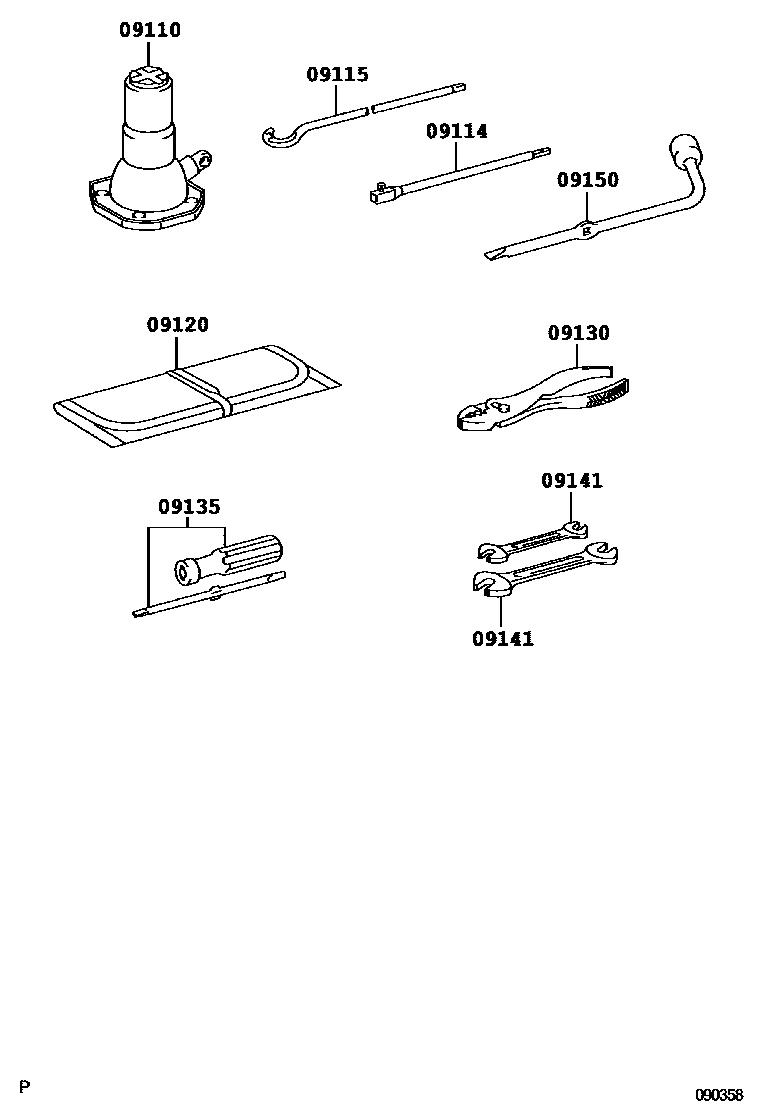

STANDARD TOOL

09110JACK ASSY

main09111-0K010iKUN15..THDCB,THSCB,XTR200507-200907

sub09111-0K011

main09111-0K011iKUN15..THDCB,THSCB,XTR200908-201105

sub09111-0K071

main09111-0K020iKUN2#..THDCB,THSCB,XTR200507-200907

sub09111-0K021

main09111-0K021iKUN2#..THDCB,THSCB,XTR200908-201105

sub09111-0K080

main09111-0K050iKUN15..DCB,SCB200507-200909

sub09111-0K051

main09111-0K051iKUN15..DCB,SCB200910-201106

sub09111-0K071

main09111-0K060iKUN2#..DCB,SCB200507-200909

sub09111-0K061

main09111-0K061iKUN2#..DCB,SCB200910-201106

sub09111-0K081

main09111-0K070iKUN15..DCB,SCB201106-201108

sub09111-0K071

main09111-0K080iKUN2#..RHD..(THDCB,THSCB)201106-201108

sub09111-0K081

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K010iKUN15,2#..4FC,5F200507-201107

main09114-0K100iKUN15,2#..DCB,SCB200903-201108

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K080iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

09120BAG, TOOL

main09120-02080iKUN15,2#..DCB,SCB201008-201108

main09120-0K010iKUN15,2#..THDCB,THSCB,XTR200507-201107

sub09120-0K160

main09120-0K040iKUN15,2#..DCB,SCB200507-201007

sub09120-02080

09130PLIERS

main90089-99010iKUN15,2#..4FC,5F200507-200810

09135DRIVER, SCREW

main90089-99009iKUN15,2#..4FC,5F200507-201108

09141SPANNER

main09141-0K030iKUN15,2#..THDCB,THSCB,XTR201001-201107

8 X 10

main09141-0K040iKUN15,2#..THDCB,THSCB,XTR201001-201107

12 X 14

main90089-99006iKUN15,2#..4FC,5F200507-201108

8 X 10

main90089-99007iKUN15,2#..4FC,5F200507-201108

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0B050iKUN15,2#..DCB,SCB200507-201108

main09150-0K010iKUN15,2#..THDCB,THSCB,XTR200507-201107

8 parts on this diagram · 1 diagram in section
