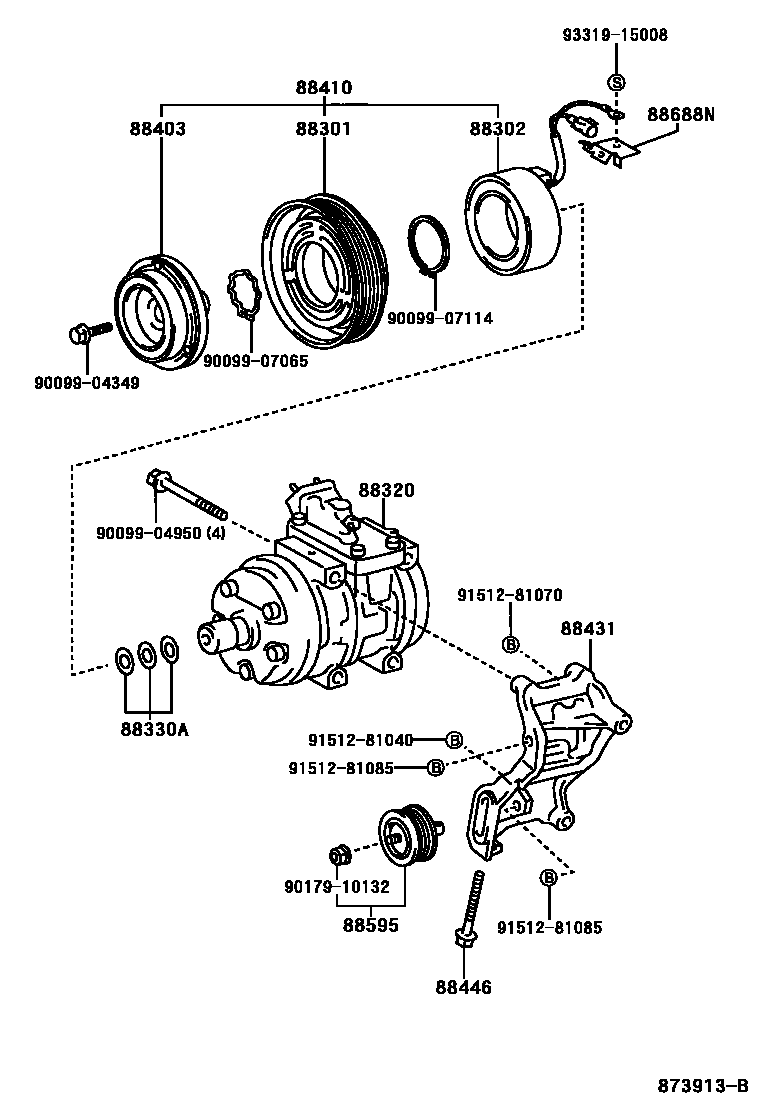

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1COMPONENT OF COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iRZN168,173199708-200108

main88412-30430iLN145,150,165,170,190..LHD199708-200108

sub88412-2A060

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iLN145,150,165,170,190,RZN168,173..LHD199708-200108

88320COMPRESSOR ASSY, COOLER

main88320-35620iLN145,150,165,170,190..LHD199708-200108

sub88320-35H92

main88320-35640iRZN168..SCB199708-200108

sub88320-35H92

main88320-35680iKDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU200108-200508

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iKDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU199708-200508

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iLN145,150,165,170,190,RZN168,173..LHD199708-200108

88410CLUTCH ASSY, MAGNET

main88410-22480iLN145,150,165,170,190..LHD199708-200108

main88410-28200iKDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU200108-200508

main88410-34040iRZN168..SCB199708-200108

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-25240iKDN145..SR200108-200308

W(AIR CONDITIONER (DEALER OPTION))

sub88420-35161

main88431-25240iKDN190;KDN145,150,165..RHD200304-200308

sub88420-35161

main88431-35200iRZN168,173199708-200108

main88431-35250iKDN145,150,165,170..(DCB,XTR)..IV3200308-200508

main88431-60180iLN145,150,165,170,190..LHD199708-200108

88446BOLT, IDLE PULLEY

main88446-35010iRZN168,173199708-200108

main88446-60020iLN145,150,165,170,190..LHD199708-200108

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-25060iKDN190;KDN145,150,165..RHD200108-200304

main88440-35030iLN145..LHD..DLX;LN150,165,170..LHD199708-200108

main88440-35080iRZN168,173199708-200108

main88440-35120iKDN170..CBU;KDN145,150,165..LHD200108-200508

88688NBRACKET, COOLER

main88688-25200iRZN168..SCB199708-200108

main88688-2D770iLN145,150,165,170,190..LHD199708-200108

9009904349

main90099-04349

9009904950

main90099-04950

9009907065

main90099-07065

9009907114

main90099-07114

9017910132

main90179-10132

9151281040

main91512-81040

9151281070

main91512-81070

9151281085

main91512-81085

9331915008

main93319-15008

19 parts on this diagram · 5 diagrams in section
