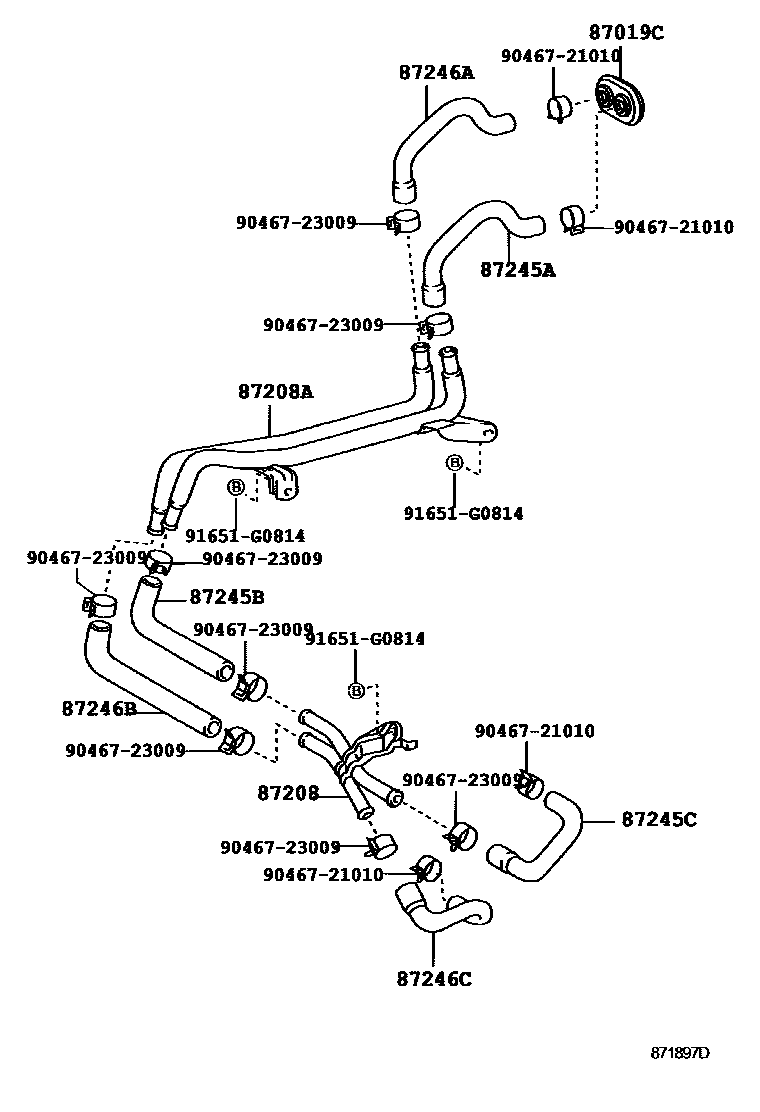

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

87019CGROMMET, HEATER HOSE

main90480-01405iLN145,150,165,170,190,RZN168,173199708-200108

87208PIPE SUB-ASSY, HEATER WATER

main87208-35280iLN145,150199708-200108

main87208-35310iLN165,170,190199708-200108

main87208-35430iKDN145,150,165..RHD200108

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-35290iLN165,170,190199708-200108

main87208-35300iLN145,150199708-200108

87245AHOSE, HEATER WATER, INLET A

main87245-35840iLN145..RHD199708-200108

main87245-35860iLN145,150..LHD199708-200108

main87245-3D060iLN165..RHD199708-200108

main87245-3D070iLN165,170,190..LHD199708-200108

main87245-3D370iKDN145,150,165..RHD200108

main87245-3D390iKDN145,150,165,170,190..LHD200108

main87246-35030iRZN168,173199708-200108

87245BHOSE, HEATER WATER, INLET B

main87245-3D380iKDN145,150,165..RHD200108

main87254-35010iLN145,150,165,170,190199708-200108

87245CHOSE, HEATER WATER ,INLET C

main87244-35010iLN145,150,165,170,190199708-200108

87246AHOSE, HEATER WATER, OUTLET A

main87245-35860iLN145,150..LHD199708-200108

main87245-3D020iRZN168,173199708-200108

main87245-3D360iKDN145,150,165..RHD200108

main87246-35020iLN145..RHD199708-200108

main87246-35040iLN165..RHD199708-200108

main87246-35050iLN165,170,190..LHD199708-200108

main87246-35070iKDN145,150,165,170,190..LHD200108

87246BHOSE, HEATER WATER, OUTLET B

main87242-35010iLN145,150,165,170,190199708-200108

87246CHOSE, HEATER WATER, OUTLET C

main87243-35010iLN145,150,165,170,190199708-200108

9046721010

main90467-21010

9046723009

main90467-23009

91651G0814

main91651-G0814

12 parts on this diagram · 5 diagrams in section
