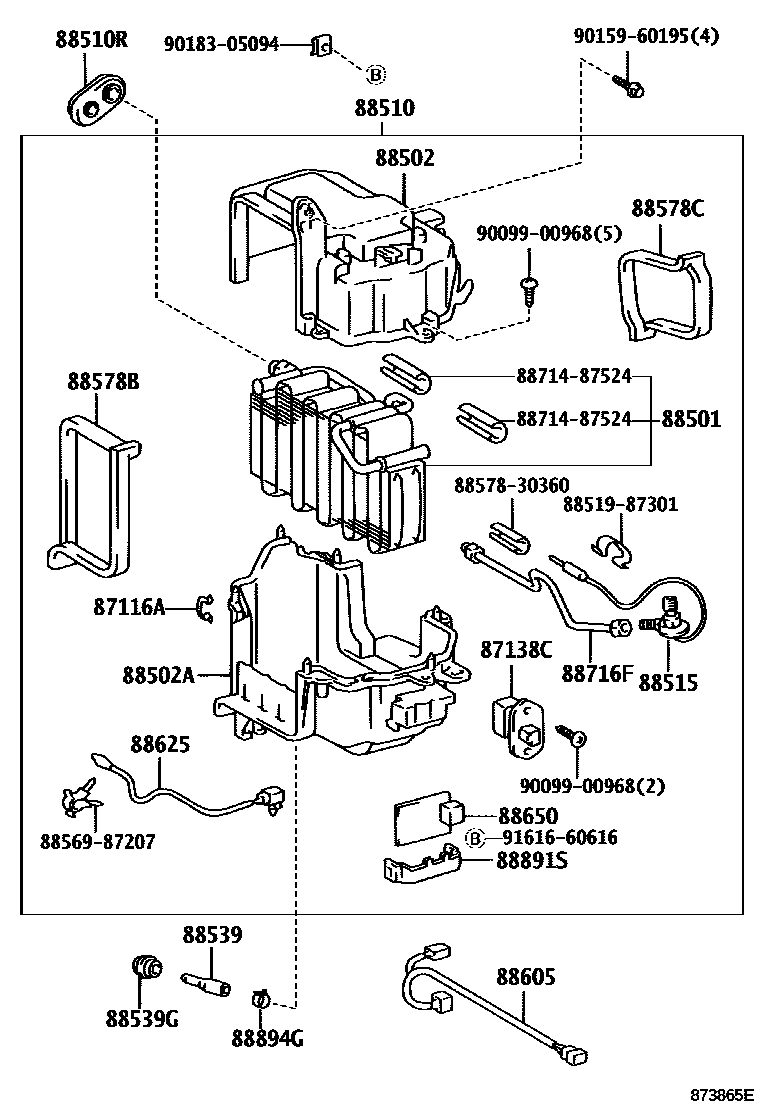

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1DEALER OPTION 0004 1 0005 1 0006 1O RING

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iLN145..SR;RZN168..SCB199708-200108

87138CRESISTOR, BLOWER

main87138-35080iLN145,165..LHD..SCB;LN145,150,165,170..LHD..(DCB,XTR)..CBU199708-199908

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-35060iKDN145,150,165..RHD200108-200208

main88501-35070iRZN168..DCB;LN145,150,165,170,190,RZN173..LHD199708-200208

main88501-35080iKDN145,150,165..RHD200208-200508

main88501-35110iKDN145,150,165,170..(DCB,XTR)..IV3200208-200508

88502CASE SUB-ASSY, COOLING UNIT

main88502-35050iRZN168..SCB199708-200208

main88502-35080iKDN145,150,165..RHD200108-200208

main88521-35230iKDN145,150,165..RHD200208-200508

main88521-35240iKDN145,150,165,170..(DCB,XTR)..IV3200208-200508

88502ACASE SUB-ASSY, COOLING UNIT

main88502-35060iRZN168..SCB199708-200208

main88502-35090iKDN145,150,165..RHD200108-200208

main88521-35250iKDN145,150,165..RHD200208-200508

main88521-35270iKDN145,150,165,170..(DCB,XTR)..IV3200208-200508

88510UNIT ASSY, COOLER

main88510-35590iKDN145,150,165..RHD200108-200208

sub88510-3D050

main88510-35610iLN145,165..LHD..SCB;LN145,150,165,170..LHD..(DCB,XTR)..CBU199708-199908

MAKER OPTION

main88510-35640iLN145..LHD..DLX;LN150,165,170,RZN168,173..LHD199708-199908

DEALER OPTION

main88510-35790iLN145,165..LHD..SCB;LN145,150,165,170,190..LHD..(DCB,XTR)..CBU199908-200108

DEALER OPTION

sub88510-3D060

main88510-35790iKDN145,165..LHD..SCB;KDN145,150,165,170,190..LHD..(DCB,XTR)..CBU200108-200208

sub88510-3D060

main88510-35820iLN145..LHD..DLX;LN150,165,170,RZN168,173..LHD199908-200108

MAKER OPTION

main88510-3D050iKDN145,150,165..RHD200208-200508

main88510-3D060iKDN145,165..LHD..SCB;KDN145,150,165,170,190..LHD..(DCB,XTR)..CBU200208-200508

main88510-3D100iKDN145,150,165,170..LHD200309-200508

DEALER OPTION

88510RGROMMET (FOR COOLER UNIT)

main90480-24008iKDN145,150,165,170,190199708-200508

sub90099-32137

88515VALVE, COOLER EXPANSION

main88515-35010iLN145..SR;RZN168..SCB199708-200508

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-89113iLN145..SR199708-200508

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26022iLN145,150,165,170,190,RZN168,173..LHD199708-200508

88578BPACKING, COOLING UNIT, NO.1

main88578-35040iRZN168..DCB;LN145..LHD..DLX;LN150,165,170,RZN173..LHD199708-200108

88578CPACKING, COOLING UNIT, NO.2

main88578-35050iLN145..SR;RZN168..SCB199708-200108

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-35220iLN145,150,165,170,190..LHD199708-200508

88625THERMISTOR, COOLER, NO.1

main88625-16210iLN145,150,165,170,RZN168,173..LHD199708-199802

main88625-35040iLN145..SR;RZN168..SCB199802-200306

main88625-35070iKDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU200306-200508

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-35060iRZN168..DCB;LN145,150,165,170,190,RZN173..LHD199708-200108

main88650-35060iKDN145,150,165..RHD200108-200508

W(AIR CONDITIONER (DEALER OPTION))

main88650-35170iKDN145,150,165..RHD200108-200508

main88650-35180iKDN145,150,165,170..(DCB,XTR)..IV3200108-200508

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88726-35050iKDN145,150,165..RHD200108-200208

main88726-35060iLN145,150,165,170,RZN168,173..LHD199708-199908

main88726-35100iLN145,150,165,170,190,RZN168,173..LHD199908-200208

main88726-35210iKDN145,150,165..RHD200208-200508

main88726-35220iKDN145,165..LHD..SCB;KDN145,150,165,170,190..LHD..(DCB,XTR)..CBU200208-200508

88891SCOVER, COOLER, NO.1

main88891-35010iRZN168..DCB;LN145..LHD..DLX;LN150,165,170,RZN173..LHD199708-200108

88894GCONNECTOR, DRAIN HOSE

main88894-35060iKDN145,150,165,170..(DCB,XTR)..IV3199708-200508

main88894-35070iKDN145,150,165..RHD200108-200508

8851987301HOLDER, REMOTE BULB

main88519-87301

8856987207CLAMP (FOR COOLER RELAY)

main88569-87207

8857830360PAKING, COOLER AIR DUCT

main88578-30360

8871487524HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-87524

9009900968

main90099-00968

9015960195

main90159-60195

9018305094

main90183-05094

9161660616

main91616-60616
