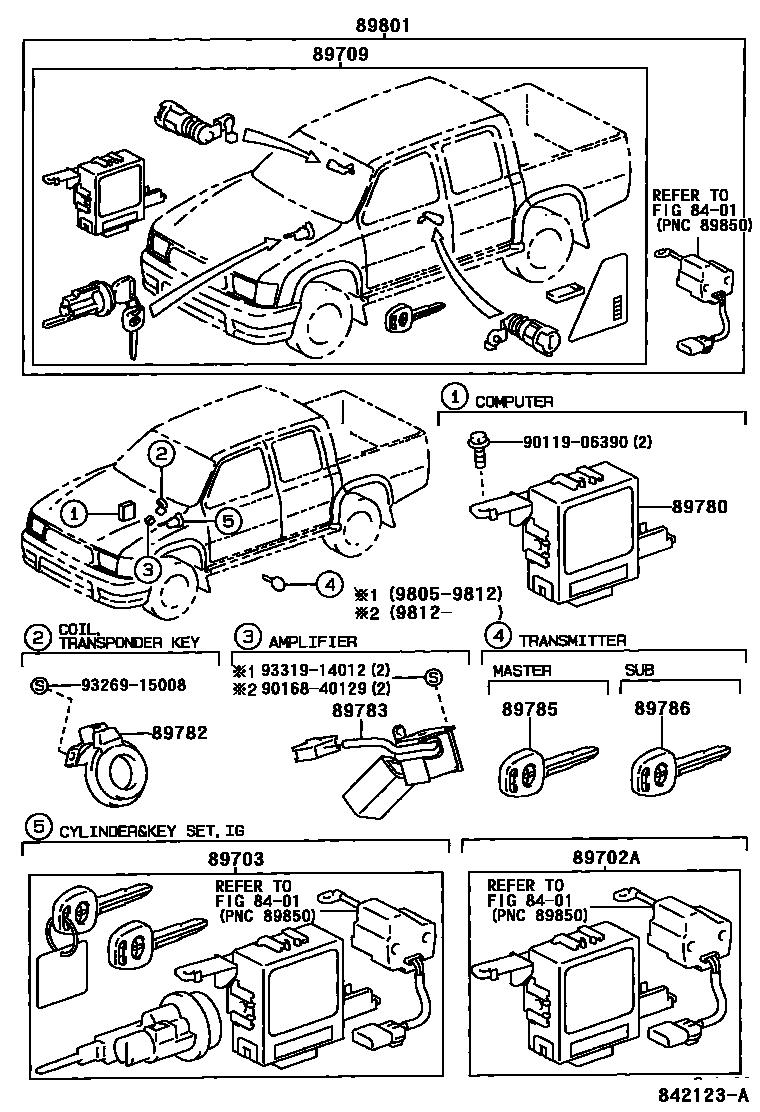

ANTI-THEFT DEVICE

0001 1 0002 1

8401

89702ACOMPUTER SET, TRANSPONDER W/VALVE CONTROL

main89702-35010iLN145,165..RHD199805-200108

main89702-35020iLN145,150,165,170,190..LHD199805-200108

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-35020iRZN168,173199805-200108

main89703-35030iLN145,165..RHD199805-200108

main89703-35040iLN145,150,165,170,190..LHD199805-200108

main89703-35100iKDN145,150,165..RHD200108

main89703-35110iKDN145,150,165,170,190..LHD200108

89709COMPUTER SET, TRANSPONDER KEY

main89709-35041iRZN168,173..(SCB,XTR)..CBU199805-200108

main89709-35050iRZN168..IV3;RZN168..DCB199805-200108

main89709-35200iKDN145,150,165..RHD..(SCB,XTR)200108

main89709-35210iKDN165..RHD..DCB200108

main89709-35220iKDN145,150,165,170..LHD..(SCB,XTR)..CBU200108

main89709-35230iKDN145,150,165,170..IV3;KDN145,165,190..LHD..DCB..CBU200108

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-35020iRZN168,173199805-200108

main89780-35030iLN145,165..RHD199805-200108

main89780-35040iLN145,150,165,170,190..LHD199805-200108

main89780-35060iKDN145,150,165..RHD200108

main89780-35070iKDN145,150,165,170,190..LHD200108

89782COIL, TRANSPONDER KEY

main89782-44010iLN145,150,165,170,190,RZN168,173199805-200108

89783AMPLIFIER, TRANSPONDER KEY

main89783-35010iLN145,150,165,170,190,RZN168,173199805-200108

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-35020iLN145,150,165,170,190,RZN168,173199805-200108

main89785-35060iKDN145,150,165,170,190200108

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-35030iLN145,150,165,170,190,RZN168,173199805-200108

main89786-35080iKDN145,150,165,170,190200108

89801COMPUTER SET, TRANSPONDER KEY DIESEL

main89801-35011iLN145,165..RHD..SCB..CBU199805-200108

main89801-35020iLN145..RHD..IV3;LN165..RHD..DCB199805-200108

main89801-35031iLN145,150,165,170..LHD..(SCB,XTR)..CBU199805-200108

main89801-35040iLN145,150,165,170..LHD..IV3;LN145,165,190..LHD..DCB..CBU199805-200108

9011906390

main90119-06390

9016840129

main90168-40129

9326915008

main93269-15008

9331914012

main93319-14012

14 parts on this diagram · 2 diagrams in section
