ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02012iKDN145,150,165,170,190200108

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20210iKDN145,150,165,170,190200108-200501

main89421-71020iKDN145,150,165,170,190200502

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iKDN145,150,165,170,190200108

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iKDN145,150,165,170,190200108

89454SENSOR, FUEL TEMPERATURE

main89454-60010iKDN145,150,165,170,190200108-200508

89455ASENSOR, EGR VALVE POSITION

main89455-35020iKDN145,150,165,170,190200312-200508

89661ACOMPUTER, ENGINE CONTROL

main89666-35250iKDN150..LHD;KDN145..LHD..DLX200108

main89666-35260iKDN145..SR;KDN145,150..RHD200108

W(ANTI-THEFT DEVICE)

main89666-35270iKDN165,170..LHD200108

main89666-35280iKDN165..RHD200108

W(ANTI-THEFT DEVICE)

main89666-35440iKDN190200108

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-35110iKDN145,150,165,170,190200108

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35160iKDN145,150,165,170,190200108

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35070iKDN145,150,165,170,190200108

89870DRIVER ASSY, SPILL VALVE CONTROL

main89870-35020iKDN145,150,165,170,190..LHD200108

main89870-35030iKDN145,150,165..RHD200108

9043012221

main90430-12221

9043016010

main90430-16010

9161660616

main91616-60616

91621J0614

main91621-J0614

91631G0614

main91631-G0614

9331915010

main93319-15010

9356055014

main93560-55014

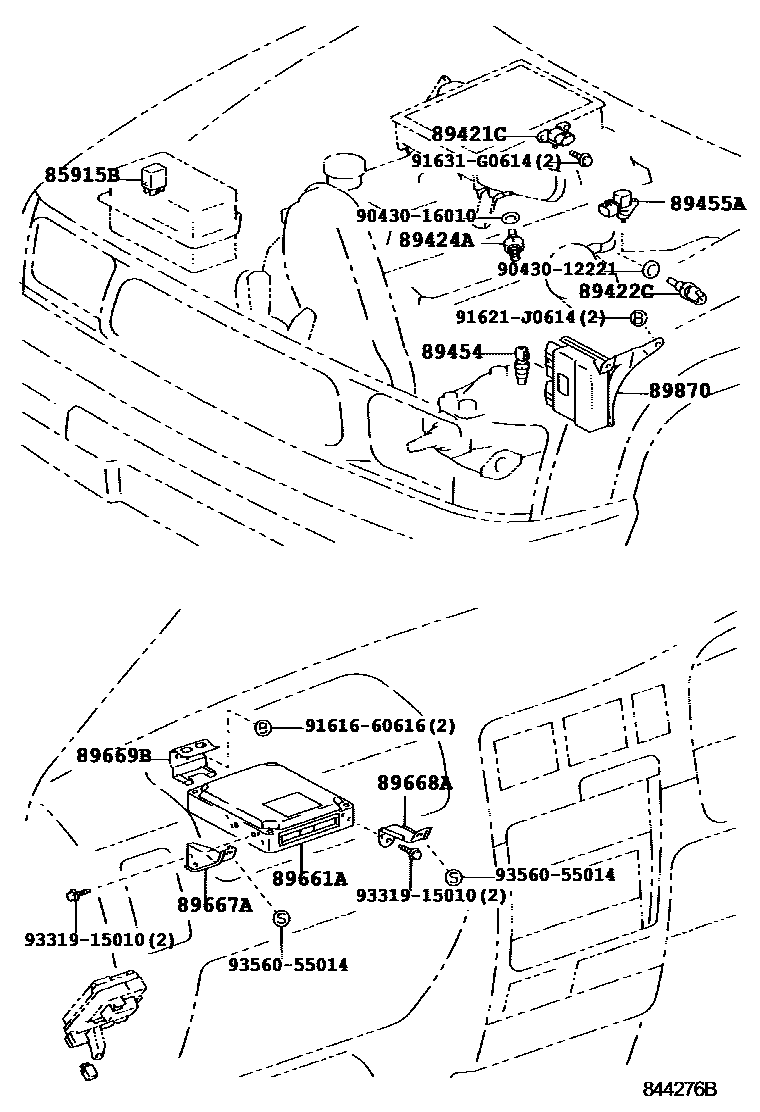

18 parts on this diagram · 1 diagram in section
