METER

0001 1COMBINATION METER, W/O(TACHOM0002 1COMBINATION METER, W/O(TACHOM0003 1COMBINATION METER, W(TACHOMET0004 1SPEEDOMETER DRIVE CABLE 0005 1SPEEDOMETER DRIVE CABLE 0006 1CLOCK & REVOLUTION DETECTOR

83100BBULB, COMBINATION METER, NO.1

main83109-24020iRZN168..SCB;LN145..RHD..IV3199708-199908

12V3.4W W(GREEN CAP),TYPE B:REFER ILLUST.

main83109-24030iLN150,170;LN165..SR199708-199805

12V3.4W W(GREEN CAP),W(TACHOMETER)

main83120-60020iLN165..RHD..DCB199805-200108

12V 1.4W,W(SOCKET),SP PACKAGE

main90010-06006×3iRZN173199711-200108

12V3.4W,W(GREEN CAP)

main90010-06007iKDN190;KDN150,165..RHD..(DCB,XTR)200108-200508

12V 3.4W,W(SOCKET),W(TACHO METER)

main90981-11018iLN145,150,165,170..(DCB,XTR)..IV3199708-200108

12V 1.2W W/O SOCKET,TYPE A:REFER ILLUST.

main99132-12034iKDN150..SR..CBU200108-200208

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iKDN150..SR..CBU200108-200208

TYPE B:REFER ILLUST.

main83101-14040iRZN173199711-200108

TYPE A:REFER TO ILLUSTRATION

main83101-20070iLN150,170;LN165..SR199708-199805

TYPE B:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-35110iRZN168,173199708-199805

main83220-35111iRZN168,173199805-200108

main83220-35140iLN145,150,165,170..LHD..DLX199708-199805

main83220-35141iLN145,150,165,170..LHD..DLX199805-200108

main83220-35170iLN145,165..RHD199708-199805

main83220-35171iLN145,165..RHD199805-200108

W/O(TACHOMETER)

main83220-35250iRZN173199711-200108

W(TACHOMETER)

main83220-35270iLN150,170;LN145,165,190..SR199805-200108

W(TACHOMETER)

main83220-35280iLN150199711-199805

W(TACHOMETER)

main83220-35390iLN165..RHD..DCB199805-200108

W(TACHOMETER)

main83220-35590iKDN165..RHD..DCB..DLX200108

IRELAND SPEC

main83220-35600iKDN145,150,165..RHD..(SCB,XTR)200405

main83220-35730iKDN150,170..LHD;KDN145,165,190..LHD..SR200108

W(TACHOMETER)

main83220-35740iKDN150,165..RHD..(DCB,XTR)200108

W(TACHOMETER)

83132CASE, COMBINATION METER

main83841-35380iRZN168,173199708-200108

main83841-35470iLN145,165..LHD..SCB;LN145,150,165,170..LHD..(DCB,XTR)..DLX..CBU199805-200108

W/O(TACHOMETER)

main83841-35540iLN145,150,165,170..DLX199708-199805

main83841-35580iLN165..SR;LN150,170,RZN173..CBU199708-200108

W(TACHOMETER)

main83841-3D890iKDN150..SR..CBU200108-200208

W/O(TACHOMETER)

main83841-3G260iKDN150,170;KDN165..RHD..DCB;KDN145,165,190..LHD..SR200108-200508

83133PLATE, COMBINATION METER, NO.1

main83811-35380iLN145,150,165,170,RZN168,173..DLX199708-200108

83138GLASS, SPEEDOMETER

main83852-35380iLN145,150,165,170,RZN168,173..DLX199708-200108

W/O(TACHOMETER)

main83852-35580iLN165..SR;LN150,170,RZN173..CBU199708-200108

W(TACHOMETER)

main83852-3D890iKDN150..SR..CBU200108-200208

W/O(TACHOMETER)

main83852-3G260iKDN150,170;KDN165..RHD..DCB;KDN145,165,190..LHD..SR200108-200508

W(TACHOMETER)

83147GCONNECTOR, COMBINATION METER

main83147-28010iLN145,150,165,170..DLX199708-200108

83147JCONNECTOR, COMBINATION METER NO.2

main83147-16010iLN165,170..DLX199708-199805

83149APLATE, METER CIRCUIT, NO.2

main83149-1G610iLN165,170..DLX199708-199805

83159BRELAY ASSY, METER

main83159-22370iKDN145,150,165,170,190200108-200508

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-35380iLN145,150,165,170,RZN168,173..DLX199708-199805

main83882-35580iLN165..SR;LN150,170,RZN173..CBU199708-200108

W(TACHOMETER)

main83882-3D110iLN145,165..RHD;LN170,RZN168,173;LN145,150,165..(DCB,XTR)..IV3199805-200108

W/O(TACHOMETER)

main83882-3D750iKDN150..SR..CBU200108-200208

W/O(TACHOMETER)

main83882-3G030iKDN150,170;KDN165..RHD..DCB;KDN145,165,190..LHD..SR200108-200508

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-35380iLN145,150,165,170,RZN168,173..DLX199708-199805

main83883-35580iLN165..SR;LN150,170,RZN173..CBU199708-200108

W(TACHOMETER)

main83883-3D110iLN145,165..RHD;LN170,RZN168,173;LN145,150,165..(DCB,XTR)..IV3199805-200108

W/O(TACHOMETER)

main83883-3D750iKDN150..SR..CBU200108-200208

W/O(TACHOMETER)

main83883-3G260iKDN150,170;KDN165..RHD..DCB;KDN145,165,190..LHD..SR200108-200508

83247PLATE, METER CIRCUIT

main83861-35460iRZN168,173199708-200108

main83861-35560iLN145,150,165,170..DLX199708-199805

main83861-35690iRZN173199711-200108

W(TACHOMETER)

main83861-35780iLN145..SR;LN150..IV3199805-200108

main83861-35790iLN170;LN165..SR199708-199805

W(TACHOMETER)

main83861-3D130iLN145,150,165,170..DLX199805-200108

W/O(TACHOMETER)

main83861-3D160iLN165..RHD..DCB199908-200108

main83861-3D161iLN170;LN165,190..SR199908-200108

main83861-3D890iKDN150..SR..CBU200108-200208

W/O(TACHOMETER)

main83861-3G260iKDN150,170;KDN165..RHD..DCB;KDN145,165..LHD..SR200108-200508

main83861-3G270iKDN190200108-200508

main83862-35120iLN165..SR199708-199805

9009900226

main90099-00226

9009900917

main90099-00917

9009900929

main90099-00929

9356855014

main93568-55014

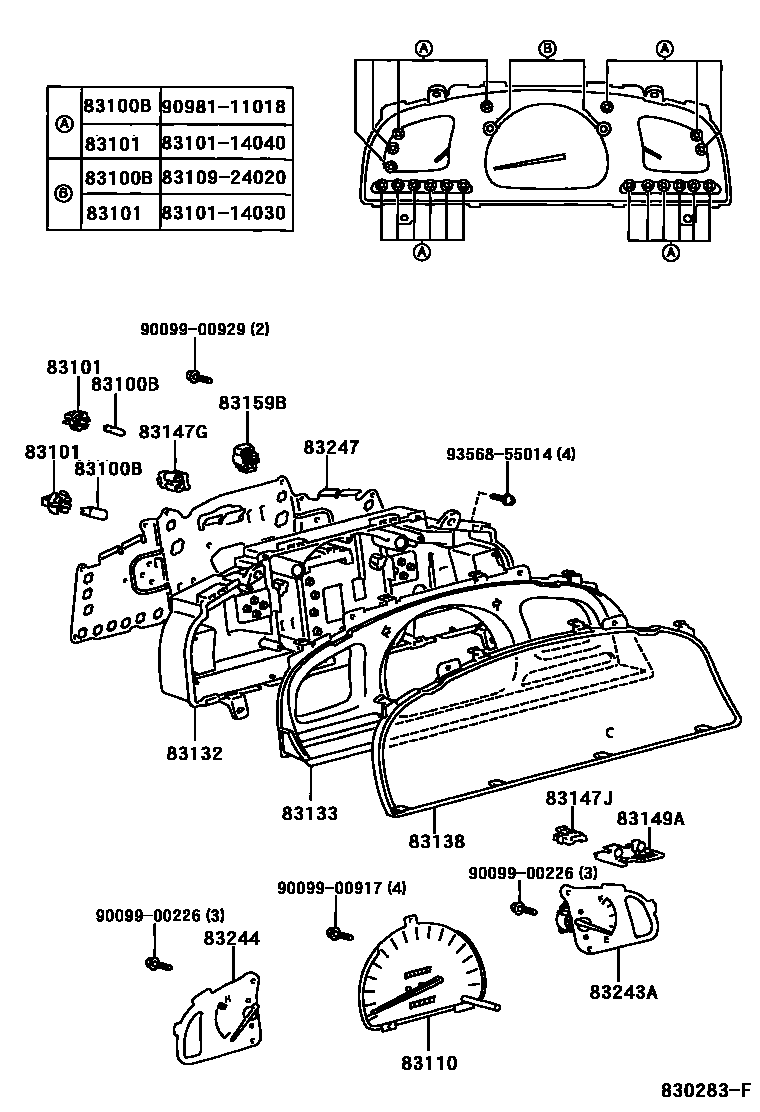

17 parts on this diagram · 6 diagrams in section
