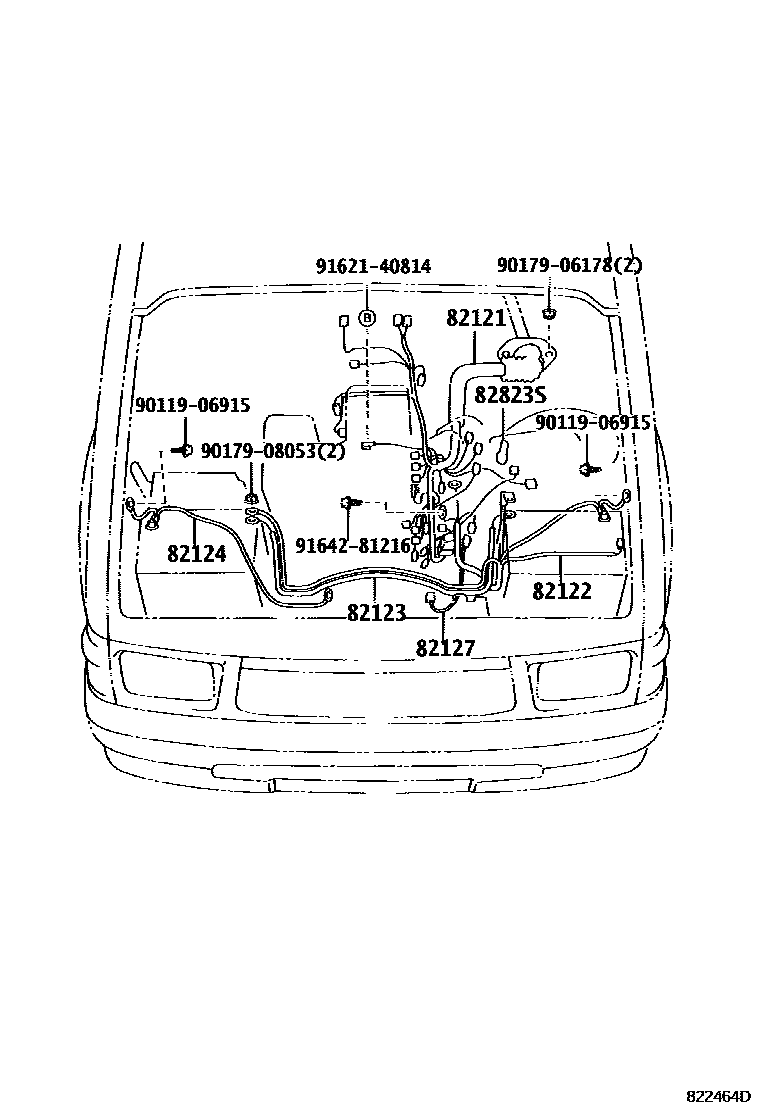

WIRING & CLAMP

0001 1ENGINE WIRE 0002 1ENGINE WIRE 0003 1ENGINE WIRE 0004 1ENGINE WIRE 0005 1ENGINE WIRE 0006 1ENGINE WIRE 0007 1ENGINE WIRE 0008 1ENGINE ROOM 0009 1ENGINE ROOM 0010 1ENGINE ROOM 0011 1ENGINE ROOM 0012 1COWL WIRE 0013 1COWL WIRE 0014 1ROOF,DOOR,FRAME & DIFF. WIRE 0015 1CABLE BOND 0016 1CONNECTOR

82121WIRE, ENGINE

main82121-3D620iLN145..RHD199708-199805

main82121-3D621iLN145..RHD199805-200108

main82121-3D650iLN150199711-199805

W(TACHOMETER)

main82121-3D660iLN165..RHD199708-199805

main82121-3D661iLN165..RHD199805-200108

main82121-3D670iLN165,170..LHD199708-199805

main82121-3D671iLN165,170..LHD199805-200108

main82121-3D810iRZN168,173199708-200108

main82121-3G070iLN145,150..LHD199708-199805

main82121-3G071iLN145,150..LHD..DLX199805-200108

main82121-3G130iLN145,150..LHD199805-200108

W(ENGINE IMMOBILIZER SYSTEM)

main82121-3G140iLN165,170..LHD199805-200108

W(ENGINE IMMOBILIZER SYSTEM)

main82121-3G540iLN190199908-200108

main82121-3M110iKDN145,150..RHD200108-200508

main82121-3M120iKDN165..RHD200108-200508

main82121-3M130iKDN145,150..LHD200108-200508

main82121-3M140iKDN165,170..LHD200108-200508

main82121-3M150iKDN190200108-200508

82122WIRE, ENGINE, NO.2

main82122-35500iLN145,150..LHD199708-200108

main82122-35520iLN145,150199708-200108

COLD SPEC

main82122-35530iLN165,170..LHD199708-200108

main82122-35540iLN165,170..LHD199708-199908

W(A.D.D)

sub82122-35541

main82122-35541iLN165,170..LHD..(DCB,XTR)199908-200108

W(A.D.D)

main82122-35580iLN190199908-200108

main82122-35580iLN165,170199708-200108

COLD SPEC

main82122-35590iLN165,170..LHD199708-199908

COLD SPEC & W(A.D.D.)

sub82122-35591

main82122-35591iLN165,170..LHD199908-200108

COLD SPEC & W(A.D.D.)

main82122-35640iRZN168,173199708-199908

main82122-35641iRZN168,173199908-200108

main82122-35650iRZN173199711-199908

W(A.D.D)

sub82122-35651

main82122-35651iRZN173199908-200108

W(A.D.D)

main82122-35740iRZN173199711-199908

COLD SPEC & W(A.D.D.)

sub82122-35741

main82122-35741iRZN173199908-200108

COLD SPEC & W(A.D.D.)

main82122-35830iKDN165,170..LHD..(DCB,XTR)200108

main82122-35840iKDN165,170..LHD..(DCB,XTR)200108

W(A.D.D)

main82122-35850iKDN165..RHD200108

main82122-35870iRZN168,173199708-199908

COLD SPEC

sub82122-35871

main82122-35871iRZN168,173199908-200108

COLD SPEC

main82122-3D010iKDN165,170..LHD..(DCB,XTR)200108

COLD SPEC

main82122-3D040iKDN165..LHD..SCB200108

COLD SPEC & W(A.D.D.)

main82122-3D060iKDN145,150..LHD200108

main82122-3D070iKDN150;KDN145..DLX200108

COLD SPEC

main82122-3D130iKDN190200108

82123WIRE, ENGINE, NO.3

main82123-35070iLN145,150,165,170,190199708-200108

main82123-35110iKDN145..DLX;KDN150,165,170200108

82124WIRE, ENGINE, NO.4

main82124-35090iLN145..SCB;LN145..DCB..DLX..CBU199708-200108

COLD SPEC

main82124-35090iLN150;LN145..SR;LN145..DCB..IV3199711-200108

main82124-35110iLN165..SCB;LN165..DCB..CBU199708-200108

COLD SPEC

main82124-35110iLN170,190;LN165..DCB..IV3199711-200108

main82124-35210iKDN150;KDN145..DLX200108

main82124-35220iKDN165,170200108

82127WIRE, DIFFERENTIAL

main82127-35140iLN165,170,RZN173..LHD199708-200108

main82127-35190iKDN165,170200108

82823SCAP, STARTER TERMINAL

main82823-35040iRZN168,173199708-200108

MARK 82823-35040

main82823-35050iRZN173199711-200108

MARK 82823-35050

main82823-35060iKDN165..LHD..DCB;KDN145,150,170..LHD199708-200508

main82823-35060iLN165..LHD..DCB;LN145,150,170..LHD199708-200108

MARK 82823-35060

main82823-35070iKDN145..DLX;KDN150,165,170,190200108-200508

COLD SPEC

main82823-35070iLN145,150,165,170,190199708-200108

MARK 82823-35070

9011906915

main90119-06915

9017906178

main90179-06178

9017908053

main90179-08053

9162140814

main91621-40814

9164281216

main91642-81216

11 parts on this diagram · 16 diagrams in section
