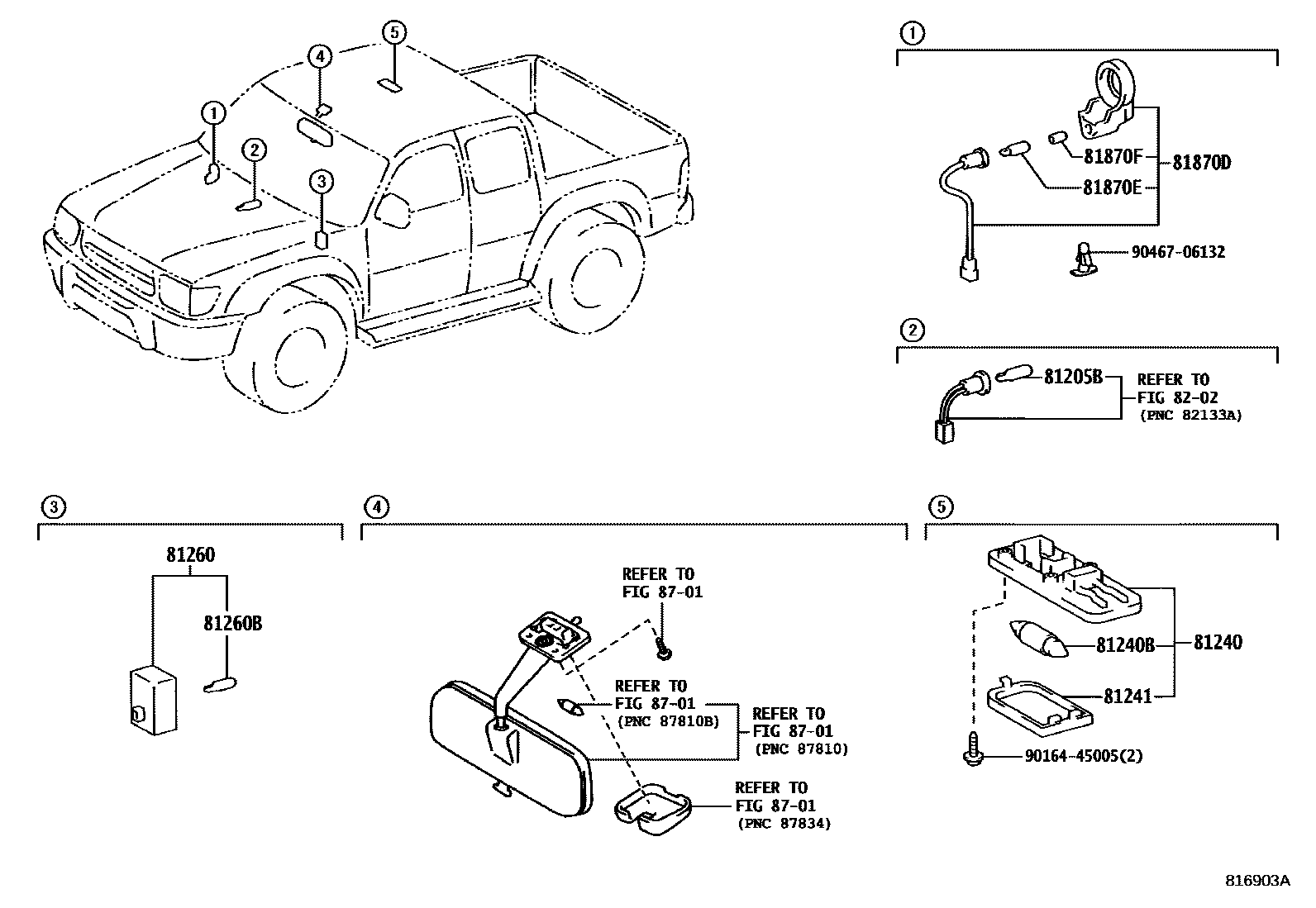

INTERIOR LAMP

81205BBULB, ASH RECEPTACLE LAMP

main90981-11041iLN145,165,190..SR199708-200108

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-89103-B0iLN145,150,165,170,RZN168,173..DCB,XTR199708-199805

MOON MIST,TRIM1#

sub81240-89103

main81240-89103-B1iLN145,150,165,170,190,RZN168,173..DCB,XTR199805-200108

LT.BLUISH GRAY,TRIM1#

sub81240-89103

81240BBULB, ROOM LAMP, NO.1

main99132-12100iLN145,150,165,170,190,RZN168,173..DCB,XTR199708-200108

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iLN145,150,165,170,190,RZN168,173..DCB,XTR199708-200108

81260LAMP ASSY, GLOVE BOX

main81260-33010iLN145,165,190..SR199708-200508

81260BBULB(FOR GLOVE BOX)

main90981-11018iLN165..SR199708-200108

12V 1.2W W/O SOCKET

81870DLAMP ASSY, KEY CYLINDER

main81870-35040iLN145,165..SR199708-200108

81870EBULB, KEY CYLINDER LAMP

main90981-11014iLN145,165..SR199708-200108

14V 1.4W

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iLN145,165..SR199708-200108

8202

8701

9016445005

main90164-45005

9046706132

main90467-06132

13 parts on this diagram · 1 diagram in section
