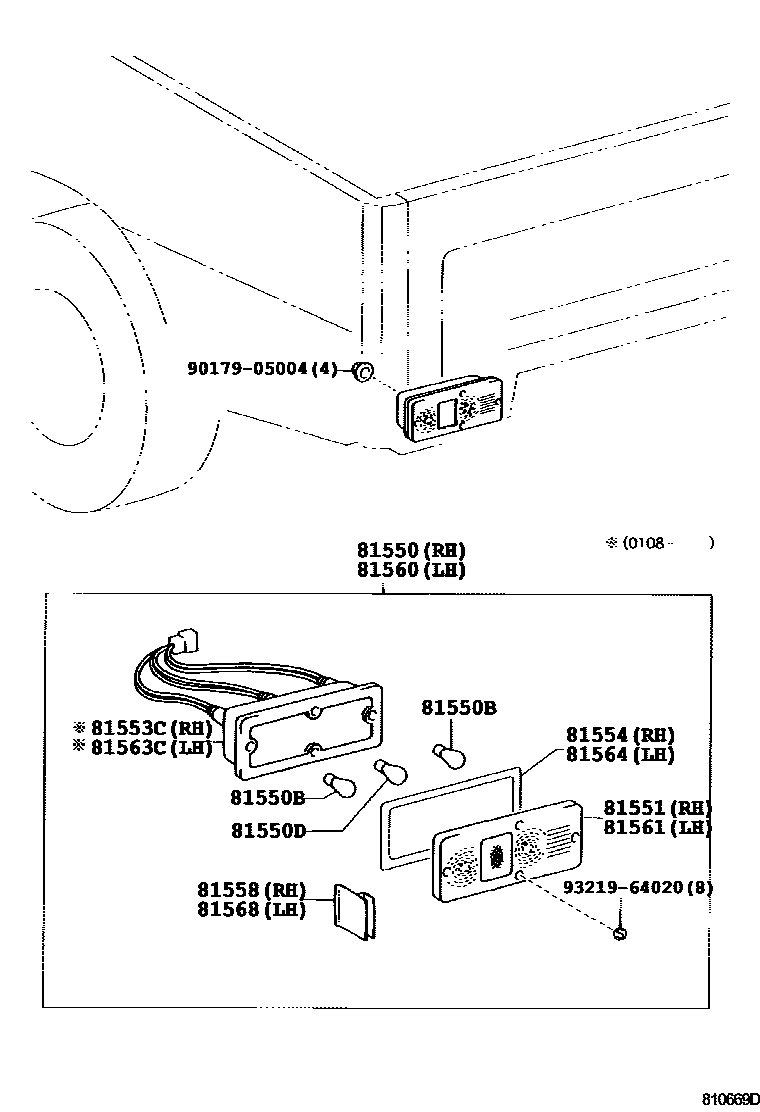

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-35061iKDN145,150,165,170..IV3¥11,500199708-200108

main81550-35140iLN145,150..CBU199708-200108

main81550-35150iLN165,170,190,RZN168,173..CBU¥14,700199708-200108

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059iKDN145,150,165,170,190..SR..CBU¥200200108-200508

12V 16W

main90981-15009iRZN168..DCB;LN145,150,165,170,190,RZN173..CBU¥350199708-200108

12V 21W,AMBER,TURN SIGNAL

main90981-15009iKDN145,150,165,170..DLX..CBU¥350200108-200508

12V 21W,AMBER

main99132-11210iRZN168..IV3;LN145..RHD..IV3¥170199708-200508

12V 21W

main99132-11210iRZN168..DCB;LN165,170,190,RZN173..CBU¥170199708-200108

12V 21W,BACK

main99132-21210iRZN168..SCB..CBU¥190199708-200108

12V 21/5W

81550DBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLN145,150..CBU¥170199708-200508

12V 21W

main99132-21210iRZN168..IV3;LN145..RHD..IV3¥190199708-200508

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-35061iKDN145,150,165,170..IV3¥1,070199708-200108

main81551-35140iLN145,150..CBU¥3,440199708-200108

main81551-35150iKDN165,170..DLX..CBU¥3,440199708-200108

main81551-35280iKDN145,150..SR..CBU¥3,440200108

main81551-35290iKDN165,170,190..SR..CBU¥3,440200108

81553CBODY, REAR COMBINATION LAMP, RH

main81553-35061iKDN145,150,165,170..IV3200108

main81553-35250iKDN145,150,165,170..DLX..CBU¥8,800200108

main81553-35280iKDN145,150,165,170,190..SR..CBU¥8,800200108

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-26040iLN145,150,165,170,RZN168..IV3¥630199708-200108

main81554-35130iKDN145,150,165,170,190..CBU¥580199708-200108

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-26040iKDN145,150,165,170..IV3¥270199708-200108

main81557-35130iLN145,150,165,170,190,RZN168,173..CBU¥620199708-200108

main81557-35280iKDN145,150,165,170,190..SR..CBU¥310200108

81560LAMP ASSY, REAR COMBINATION, LH

main81560-35061iKDN145,150,165,170..IV3¥11,500199708-200108

main81560-35140iLN145,150..CBU¥14,700199708-200108

main81560-35150iLN165,170,190,RZN168,173..CBU¥14,700199708-200108

81561LENS, REAR COMBINATION LAMP, LH

main81561-35061iLN145,150,165,170,RZN168..IV3¥1,070199708-200108

main81561-35140iLN145,150..CBU¥3,440199708-200108

main81561-35150iLN165,170,190,RZN168,173..CBU¥3,440199708-200108

main81561-35240iKDN145,150..SR..CBU¥3,440200108

main81561-35250iKDN165,170,190..SR..CBU¥3,440200108

81563CBODY, REAR COMBINATION LAMP, LH

main81563-35061iKDN145,150,165,170..IV3200108

main81563-35210iKDN145,150,165,170..DLX..CBU¥8,800200108

main81563-35240iKDN145,150,165,170,190..SR..CBU¥8,800200108

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-35130iLN145,150,165,170,190,RZN168,173..CBU¥580199708-200108

main81562-26040iLN145,150,165,170,RZN168..IV3¥630199708-200108

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-26040iLN145,150,165,170,RZN168..IV3¥270199708-200108

main81567-35130iLN145,150,165,170,190,RZN168,173..CBU¥620199708-200108

main81567-35240iKDN145,150,165,170,190..SR..CBU¥310200108

9017905004

main90179-05004¥130

9321964020

main93219-64020¥130

14 parts on this diagram · 3 diagrams in section
