BODY STRIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1TURKEY SPEC 0008 1 0009 1 0010 1

75975DSTRIPE, FRONT DOOR OUTSIDE, FRONT RH

main75975-35270iLN145,150..(SCB,XTR)..CBU199708-200108

main75975-35300iLN145..DCB..CBU199708-200108

main75975-35310iLN165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

main75975-35330iLN165,190,RZN168..DCB..CBU199708-200108

main75975-35410iLN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

main75975-35450iKDN165,170..(SCB,XTR)..CBU200108

main75975-35460iKDN165,190..DCB..CBU200108

main75975-35470iKDN145,150..(SCB,XTR)..CBU200108

FOR BODY COLOR = MONO TONE

main75975-35480iKDN145..SR200108

FOR BODY COLOR = MONO TONE

main75975-35500iKDN145..SR200108

main75975-35510iKDN150..SR..CBU200108

75976DSTRIPE, FRONT DOOR OUTSIDE, FRONT LH

main75976-35280iLN145,150..(SCB,XTR)..CBU199708-200108

main75976-35310iLN145..DCB..CBU199708-200108

main75976-35320iLN165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

main75976-35340iLN165,190,RZN168..DCB..CBU199708-200108

main75976-35420iLN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

main75976-35460iKDN165,170..(SCB,XTR)..CBU200108

main75976-35470iKDN165,190..DCB..CBU200108

main75976-35480iKDN145,150..(SCB,XTR)..CBU200108

FOR BODY COLOR = MONO TONE

main75976-35490iKDN145..SR200108

FOR BODY COLOR = MONO TONE

main75976-35510iKDN145..SR200108

main75976-35520iKDN150..SR..CBU200108

75981BSTRIPE, FENDER, RH

main75981-35250iLN145,150..CBU199708-200108

main75981-35260iLN165,170,190,RZN168,173..CBU199708-200108

main75981-35330iLN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

main75981-35360iKDN165,170,190..CBU200108

main75981-35370iKDN165,170,190..SR..CBU200108

W(OVER FENDER)

main75981-35380iKDN145,150..CBU200108

FOR BODY COLOR = MONO TONE

main75981-35420iKDN145,150..SR..CBU200108

75982BSTRIPE, FENDER, LH

main75982-35240iLN145,150..CBU199708-200108

main75982-35250iLN165,170,190,RZN168,173..CBU199708-200108

main75982-35320iLN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

main75982-35350iKDN165,170,190..CBU200108

main75982-35360iKDN165,170,190..SR..CBU200108

W(OVER FENDER)

main75982-35370iKDN145,150..CBU200108

FOR BODY COLOR = MONO TONE

main75982-35410iKDN145,150..SR..CBU200108

75991ASTRIPE, QUARTER, RH

main75991-35390iLN145..SCB..CBU199708-200108

main75991-35400iLN150..CBU199711-200108

main75991-35420iLN145..DCB..CBU199708-200108

main75991-35440iLN165,RZN168..SCB..CBU199708-200108

main75991-35450iLN170,RZN173..CBU199711-200108

main75991-35460iLN165,190,RZN168..DCB..CBU199708-200108

main75991-35600iLN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

main75991-35640iKDN165..SCB..CBU200108

main75991-35650iKDN170..CBU200108

main75991-35660iKDN165,190..DCB..CBU200108

main75991-35680iKDN165,190..SR200108

W(OVER FENDER)

main75991-35700iKDN145..DLX..CBU200108

main75991-35710iKDN150..CBU200108

FOR BODY COLOR = MONO TONE

main75991-35720iKDN145..SR200108

FOR BODY COLOR = MONO TONE

main75991-35730iKDN145..SR200108

main75991-35740iKDN150..SR..CBU200108

75992ASTRIPE, QUARTER, LH

main75992-35390iLN145..SCB..CBU199708-200108

main75992-35400iLN150..CBU199711-200108

main75992-35420iLN145..DCB..CBU199708-200108

main75992-35430iLN165,RZN168..SCB..CBU199708-200108

main75992-35440iLN170,RZN173..CBU199711-200108

main75992-35450iLN165,190,RZN168..DCB..CBU199708-200108

main75992-35550iLN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

main75992-35580iKDN165..SCB..CBU200108

main75992-35590iKDN170..CBU200108

main75992-35600iKDN165,190..DCB..CBU200108

main75992-35610iKDN165,190..SR200108

W(OVER FENDER)

main75992-35620iKDN145..DLX..CBU200108

main75992-35630iKDN150..CBU200108

FOR BODY COLOR = MONO TONE

main75992-35640iKDN145..SR200108

FOR BODY COLOR = MONO TONE

main75992-35650iKDN145..SR200108

main75992-35660iKDN150..SR..CBU200108

75996CSTRIPE, REAR BODY, RH

main75996-35680iLN145..SCB..CBU199708-200108

main75996-35720iLN150..CBU199711-200108

main75996-35730iLN145..DCB..CBU199708-200108

main75996-35800iLN165,RZN168..SCB..CBU199708-200108

main75996-35810iLN170,RZN173..CBU199711-200108

main75996-35820iLN165,190,RZN168..DCB..CBU199708-200108

main75996-3D160iLN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

main75996-3D200iKDN165..SCB..CBU200108

main75996-3D220iKDN170..CBU200108

main75996-3D240iKDN170..SR..CBU200108

W(OVER FENDER)

main75996-3D260iKDN165,190..DCB..CBU200108

main75996-3D270iKDN165,190..SR200108

W(OVER FENDER)

main75996-3D290iKDN145..DLX..CBU200108

main75996-3D300iKDN150..CBU200108

FOR BODY COLOR = MONO TONE

main75996-3D310iKDN145..SR200108

FOR BODY COLOR = MONO TONE

main75996-3D350iKDN145..SR200108

main75996-3D360iKDN150..SR..CBU200108

75997CSTRIPE, REAR BODY, LH

main75997-35500iLN145..SCB..CBU199708-200108

main75997-35540iLN150..CBU199711-200108

main75997-35550iLN145..DCB..CBU199708-200108

main75997-35580iLN165,RZN168..SCB..CBU199708-200108

main75997-35590iLN170,RZN173..CBU199711-200108

main75997-35680iLN165,190,RZN168..DCB..CBU199708-200108

main75997-35810iLN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

main75997-35860iKDN165..SCB..CBU200108

main75997-35870iKDN170..CBU200108

main75997-35880iKDN170..SR..CBU200108

W(OVER FENDER)

main75997-35890iKDN165,190..DCB..CBU200108

main75997-3D010iKDN165,190..SR200108

W(OVER FENDER)

main75997-3D030iKDN145..DLX..CBU200108

main75997-3D040iKDN150..CBU200108

FOR BODY COLOR = MONO TONE

main75997-3D050iKDN145..SR200108

FOR BODY COLOR = MONO TONE

main75997-3D080iKDN145..SR200108

main75997-3D090iKDN150..SR..CBU200108

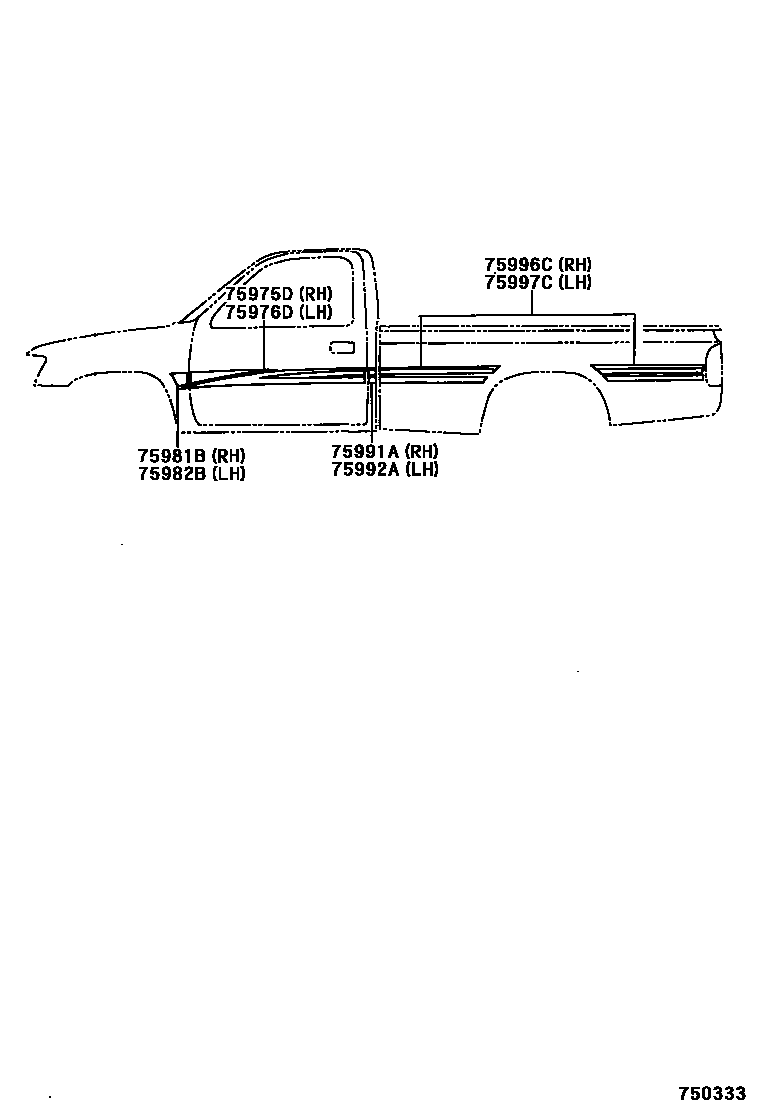

8 parts on this diagram · 10 diagrams in section
