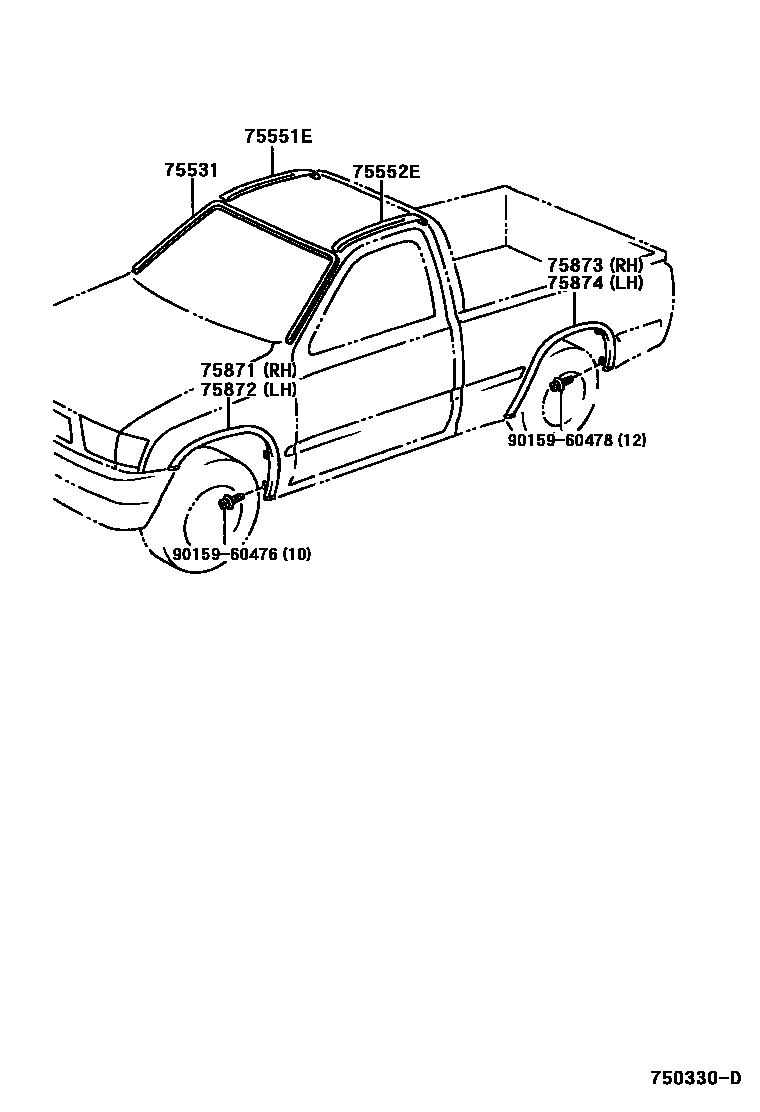

MOULDING

0001 1 0002 1 0003 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-35120iLN145,150,165,170,190,RZN168,173..LHD..(DCB,XTR)200105-200108

CHROME PLATED PACKAGE

main75531-35130iLN165..LHD..DCB;LN145,150,170,190,RZN168,173..LHD199708-200105

sub75531-35160

main75531-35140iLN165,RZN168..LHD;LN145,150,170,RZN173..DCB,XTR199708-200105

CHROME PLATED PACKAGE

sub75531-35120

main75531-35150iLN165..LHD..CBU;LN165..DCB..IV3;LN145,150,170,190,RZN168,173..LHD199708-200105

COLD SPEC

sub75531-35170

main75531-35160iKDN165..LHD..DCB;KDN145,150,170,190..LHD200105-200108

main75531-35170iKDN145..DLX;KDN150,165,170200105-200108

COLD SPEC

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-35010-B0iLN145,165,RZN168..SCB199708-199905

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

sub75551-35011

main75551-35010-D0iLN145,165,RZN168..SCB199708-199905

RED MM,3K4

sub75551-35011

main75551-35010-D2iLN145,165,RZN168..SCB199708-199905

SUPER RED 2,3L5

sub75551-35011

main75551-35010-G0iLN145,165,RZN168..SCB199708-199905

GREEN ME.OP.,6P4

sub75551-35011

main75551-35011-B0iLN145,165,RZN168..SCB199905-200108

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

main75551-35011-D0iLN145,165,RZN168..SCB199905-200108

RED MM,3K4

main75551-35011-D2iLN145,165,RZN168..SCB199905-200108

SUPER RED II,3L5

main75551-35011-G0iLN145,165,RZN168..SCB199905-200108

GREEN ME.OP.,6P4

main75551-35020-B0iLN150,170,RZN173199711-199905

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

sub75551-35020

sub75551-35021

main75551-35020-D0iLN150,170,RZN173199711-199905

RED MM,3K4

sub75551-35020

sub75551-35021

main75551-35020-D2iLN150,170,RZN173199808-199905

SUPER RED II,3L5

sub75551-35020

sub75551-35021

main75551-35020-G0iLN150,170,RZN173199711-199905

GREEN ME.OP.,6P4

sub75551-35020

sub75551-35021

main75551-35021-B0iLN150,170,RZN173199905-200108

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

main75551-35021-D0iLN150,170,RZN173199905-200108

RED MM,3K4

main75551-35021-D2iLN150,170,RZN173199905-200108

SUPER RED II,3L5

main75551-35021-G0iLN150,170,RZN173199905-200108

GREEN ME.OP.,6P4

main75551-35030-B0iLN145,165,RZN168..DCB199708-199905

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

sub75551-35031

main75551-35030-D0iLN145,165,RZN168..DCB199708-199905

RED MM,3K4

sub75551-35031

main75551-35030-D2iLN145,165,RZN168..DCB199708-199905

SUPER RED 2,3L5

sub75551-35031

main75551-35030-G0iLN145,165,RZN168..DCB199708-199905

GREEN ME.OP.,6P4

sub75551-35031

main75551-35031-B0iLN145,165,190,RZN168..DCB199905-200108

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

main75551-35031-D0iLN145,165,190,RZN168..DCB199905-200108

RED MM,3K4

main75551-35031-D2iLN145,165,190,RZN168..DCB199905-200108

SUPER RED II,3L5

main75551-35031-G0iLN145,165,190,RZN168..DCB199905-200108

GREEN ME.OP.,6P4

main75551-35040iKDN145,165..SCB200108

main75551-35050iKDN150,170200108

main75551-35060iKDN145,165,190..DCB200108

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-35010-B0iLN145,165,RZN168..SCB199708-199905

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

sub75552-35011

main75552-35010-D0iLN145,165,RZN168..SCB199708-199905

RED MM,3K4

sub75552-35011

main75552-35010-D2iLN145,165,RZN168..SCB199708-199905

SUPER RED 2,3L5

sub75552-35011

main75552-35010-G0iLN145,165,RZN168..SCB199708-199905

GREEN ME.OP.,6P4

sub75552-35011

main75552-35011-B0iLN145,165,RZN168..SCB199905-200108

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

main75552-35011-D0iLN145,165,RZN168..SCB199905-200108

RED MM,3K4

main75552-35011-D2iLN145,165,RZN168..SCB199905-200108

SUPER RED II,3L5

main75552-35011-G0iLN145,165,RZN168..SCB199905-200108

GREEN ME.OP.,6P4

main75552-35020-B0iLN150,170,RZN173199711-199905

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

sub75552-35020

sub75552-35021

main75552-35020-D0iLN150,170,RZN173199711-199905

RED MM,3K4

sub75552-35020

sub75552-35021

main75552-35020-D2iLN150,170,RZN173199808-199905

SUPER RED II,3L5

sub75552-35020

sub75552-35021

main75552-35020-G0iLN150,170,RZN173199711-199905

GREEN ME.OP.,6P4

sub75552-35020

sub75552-35021

main75552-35021-B0iLN150,170,RZN173199905-200108

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

main75552-35021-D0iLN150,170,RZN173199905-200108

RED MM,3K4

main75552-35021-D2iLN150,170,RZN173199905-200108

SUPER RED II,3L5

main75552-35021-G0iLN150,170,RZN173199905-200108

GREEN ME.OP.,6P4

main75552-35030-B0iLN145,165,RZN168..DCB199708-199905

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

sub75552-35031

main75552-35030-D0iLN145,165,RZN168..DCB199708-199905

RED MM,3K4

sub75552-35031

main75552-35030-D2iLN145,165,RZN168..DCB199708-199905

SUPER RED 2,3L5

sub75552-35031

main75552-35030-G0iLN145,165,RZN168..DCB199708-199905

GREEN ME.OP.,6P4

sub75552-35031

main75552-35031-B0iLN145,165,190,RZN168..DCB199905-200108

DK.GRAY ME.,058 ,204 ,6N7 ,8L7 ,926

main75552-35031-D0iLN145,165,190,RZN168..DCB199905-200108

RED MM,3K4

main75552-35031-D2iLN145,165,190,RZN168..DCB199905-200108

SUPER RED II,3L5

main75552-35031-G0iLN145,165,190,RZN168..DCB199905-200108

GREEN ME.OP.,6P4

main75552-35040iKDN145,165..SCB200108

main75552-35050iKDN150,170200108

main75552-35060iKDN145,165,190..DCB200108

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75085-35030iLN165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

main75085-35040iLN150..CBU199711-200108

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75086-35030iKDN165,170..(SCB,XTR)..CBU199708-200108

main75086-35040iKDN150..CBU199711-200108

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-35030iLN150,165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-35030iLN150,165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

9015960476

main90159-60476

9015960478

main90159-60478

9 parts on this diagram · 3 diagrams in section
