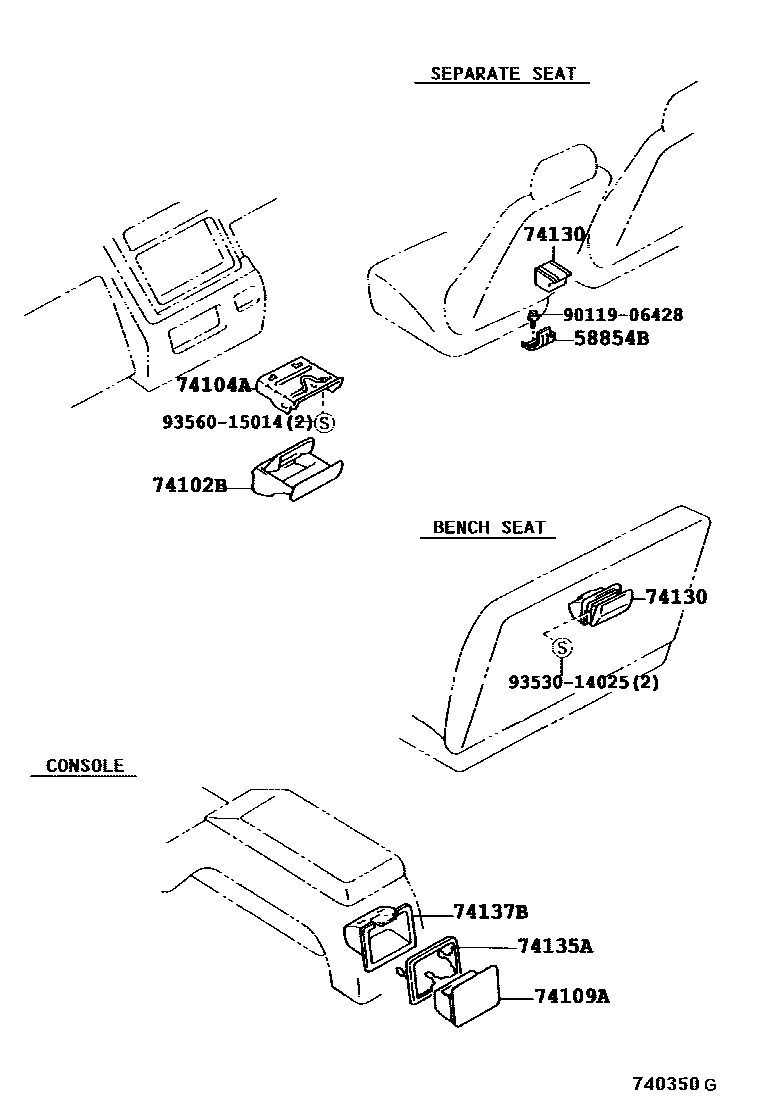

ASH RECEPTACLE

58854BBRACKET, REAR ASH RECEPTACLE MOUNTING

main58854-35010iKDN145,165..DCB..DLX199708-200108

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-89107iKDN145,150,165,170..DLX199708-200108

sub74104-89108

main74104-89108iLN165..RHD..DCB;LN145,165,190..SR199708-200108

W(ILLUMINATION)

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-32010-B4iLN145,165,190,RZN168..DCB199708-200108

MD.MOON MIST,TRIM1#

sub74109-20080

sub74109-32010

74130RECEPTACLE ASSY, REAR ASH

main74130-14020-B2iLN145,165,RZN168..LHD..DCB..DLX199810-199908

MD.MOON MIST,TRIM10

sub74130-14020

sub74130-95401

main74130-14020-B2iLN145,165,RZN168..LHD..DCB..DLX199708-199810

MD.MOON MIST,TRIM1#

sub74130-14020

sub74130-95401

main74130-14020-C0iKDN145,165..LHD..DCB..DLX199908-200508

BLACK,TRIM1#

sub74130-14020

sub74130-95401

main74130-14020-C0iLN145,165,RZN168..LHD..DCB..DLX199810-199908

BLACK,TRIM10

sub74130-14020

sub74130-95401

main74130-35010iKDN145,165..DCB..DLX199708-200508

SEPARATE SEAT

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-12020iLN145,165,190,RZN168..DCB199708-200108

sub74135-12040

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iLN145,165,190,RZN168..DCB199708-200108

9011906428

main90119-06428

9353014025

main93530-14025

9356015014

main93560-15014

9 parts on this diagram · 1 diagram in section
