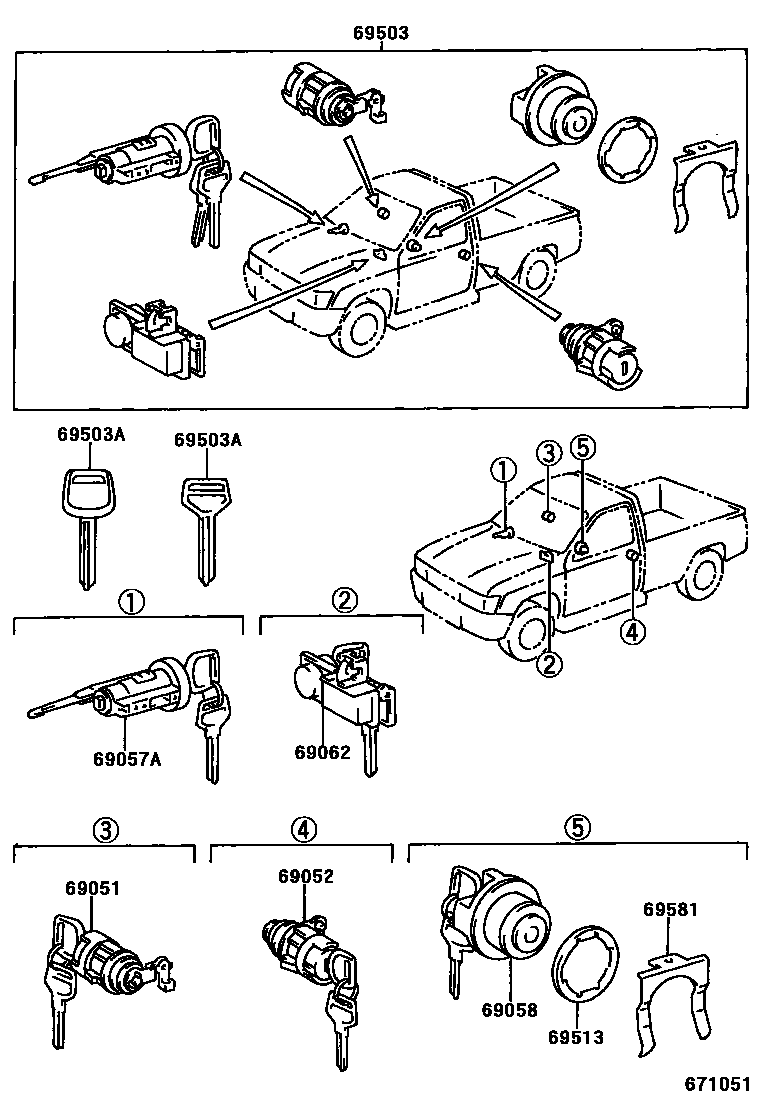

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-35110iKDN145,150,165,170,190199708-200508

main69051-35120iLN165..SR199708-200508

GERMANY SPEC

main69051-35130iRZN168;LN145..SCB;LN145..DCB..DLX..CBU;LN150,165,170,RZN173..CBU199708-199808

VW BRAND

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-35110iLN145,150,165,170,190,RZN168,173199708-200508

main69052-35120iLN165..SR199708-200508

GERMANY SPEC

main69052-35130iRZN168;LN145..SCB;LN145..DCB..DLX..CBU;LN150,165,170,RZN173..CBU199708-199808

VW BRAND

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-35110iLN145,165..RHD199708-200508

main69057-35120iLN165..LHD..SCB..CBU;LN145,170..LHD..(SCB,XTR)199708-199805

GERMANY SPEC

main69057-35130iLN145,165..RHD199708-199808

VW BRAND

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-35040iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-199805

sub69058-35170

main69058-35050iLN145,165,170..LHD..(SCB,XTR)..CBU199708-199805

GERMANY SPEC

sub69058-35180

main69058-35060iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-199805

VW BRAND

sub69058-35190

main69058-35090iLN145,150,165,170..IV3;LN145,165,190..DCB..CBU199708-200108

sub69058-35130

main69058-35090iLN150,170199711-199805

PORTUGAL SPEC

sub69058-35130

main69058-35100iLN145..SCB..IV3;LN165..DCB..CBU;LN145..DCB..DLX..CBU199708-199808

VW BRAND

main69058-35100iLN150,170199711-199805

PORTUGAL SPEC & VW BRAND

main69058-35110iRZN168..IV3;RZN168..DCB199708-200108

sub69058-60141

main69058-35120iRZN168..IV3;RZN168..DCB199708-199808

VW BRAND

main69058-35130iLN165..SR;LN145..LHD..SCB..IV3199708-200108

GERMANY SPEC

main69058-35170iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199805-200108

sub69058-35180

main69058-35180iKDN145,170..LHD..(SCB,XTR)..CBU199805-200208

GERMANY SPEC

main69058-35190iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199805-199808

VW BRAND

main69058-35200iKDN145..SCB..IV3;KDN165..LHD..DCB..CBU200108

GERMANY SPEC

main69058-35210iKDN165..DCB;KDN145,190..SR;KDN165..SCB..IV3;KDN145,150,170..IV3200108

sub69058-35200

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-35060iKDN145,150,165,170,190200108

sub69056-35070

main69056-35070iKDN165..LHD..SCB..CBU200108-200208

GERMANY SPEC

69503CYLINDER SET, LOCK

main69005-35490iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-199805

VW BRAND

sub69005-35491

main69005-35491iLN145,150,165,170,RZN168,173..LHD..(SCB,XTR)..CBU199805-199808

VW BRAND

main69005-35500iLN150,170199711-199805

PORTUGAL SPEC & VW BRAND

main69005-35500iLN145..IV3;LN145,165..DCB199708-199808

VW BRAND

main69005-35521iKDN145,150,165,170..LHD..(SCB,XTR)..CBU200108

main69005-35530iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-199805

sub69005-35531

main69005-35531iLN145,150,165,170,RZN168,173..LHD..(SCB,XTR)..CBU199805-200108

main69005-35580iLN145,165..IV3;LN145,165..DCB199708-200108

main69005-35580iLN150,170199711-199805

PORTUGAL SPEC

main69005-35590iRZN168..IV3;RZN168..DCB199708-200108

main69005-35670iLN145,165,170..LHD..(SCB,XTR)..CBU199708-199805

GERMANY SPEC

main69005-35680iLN145..LHD..IV3199708-199805

GERMANY SPEC

main69005-35690iRZN168..IV3;RZN168..DCB199708-199808

VW BRAND

main69005-3D020iKDN165..LHD..DCB..CBU;KDN145,150,165,170..IV3200108

69503AKEY, BLANK

main90999-00130iKDN145,190..SR;KDN145,150,165..RHD199708-200508

MASTER KEY

sub90999-00153

main90999-00132iLN145..SR199708-200508

MASTER KEY,W(*68)

sub90999-00174

main90999-00137iKDN145,150,165,170..LHD..(SCB,XTR)..CBU200108-200203

SUB KEY

sub90999-00165

main90999-00149iLN165..LHD..SCB..CBU;LN145,170..LHD..(SCB,XTR)199708-199805

MASTER KEY,W(*68),GERMANY SPEC

sub90999-00175

main90999-00156iRZN168;LN145..LHD..SCB;LN165..LHD..CBU;LN145,150,170,RZN173..(DCB,XTR)..DLX..CBU199708-199808

MASTER KEY,W(*68),VW BRAND

main90999-00165iKDN145..LHD..DLX;KDN150,165,170..LHD200203-200508

SUB KEY

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iLN165..RHD..SCB;LN145,150,170,RZN168,173..(SCB,XTR)..CBU199708-200108

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

9 parts on this diagram · 1 diagram in section
