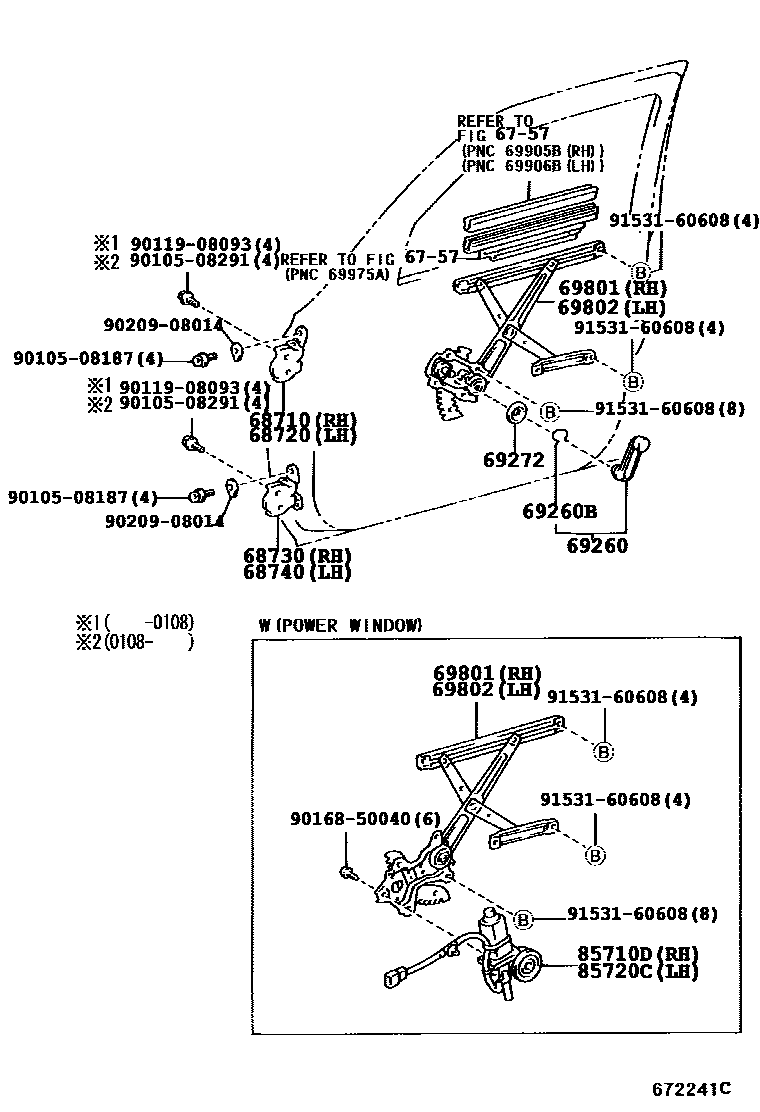

FRONT DOOR WINDOW REGULATOR & HINGE

6757

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-04010iKDN145,150,165,170,190199708-200108

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-04010iLN145,150,165,170,190,RZN168,173199708-200108

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-04010iLN145,150,165,170,190,RZN168,173199708-200108

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-04010iLN145,150,165,170,190,RZN168,173199708-200108

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14030-B3iKDN165..LHD..SCB..CBU199708-200208

VW BRAND,MD.MOON MIST,TRIM1#

sub69260-14030

main69260-89104-B1iKDN145,150,165,170..DLX199708-200108

MD.MOON MIST,TRIM1#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iLN145,165..DCB..IV3;LN145,150,165,170,RZN168,173..SCB,XTR199708-200108

VW

main90520-01274iKDN145,165..DCB..DLX200108

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020iLN165..DCB..CBU;LN145,RZN168..DCB..DLX..CBU199708-200108

VW

sub69285-22010

main69285-22010iKDN145,150,165,170..DLX200108

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-35110iLN165;LN145,150,170,RZN168,173..DLX199708-200108

main69801-35140iLN190199908-200010

main69801-35140iLN165..SR;LN150,170,RZN173199708-200108

W(POWER WINDOW)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-35110iLN165;LN145,150,170,RZN168,173..DLX199708-200108

main69802-35140iLN190199908-200010

main69802-35140iLN165..SR;LN150,170,RZN173199708-200108

W(POWER WINDOW)

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35120iLN165..SR;LN150,170,RZN173199708-200108

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35090iLN165..SR;LN150,170,RZN173199708-200108

9010508187

main90105-08187

9010508291

main90105-08291

9011908093

main90119-08093

9016850040

main90168-50040

9020908014

main90209-08014

9153160608

main91531-60608

18 parts on this diagram · 1 diagram in section
