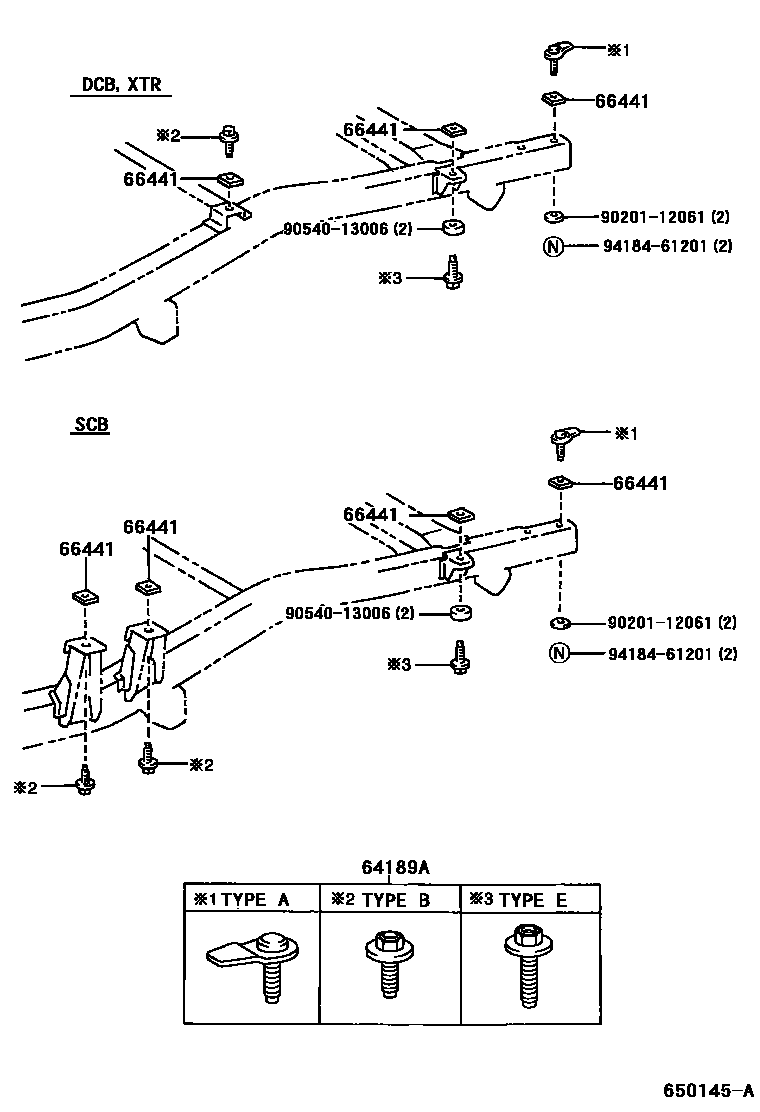

REAR BODY MOUNTING

64189ABOLT, REAR BODY MOUNTING

main64189-35010iKDN145,150,165,170,190200108-200508

TYPE A:REFER ILLUST.

main64189-35010iLN145,150,165,170,190,RZN168,173199708-200108

TYPE A:REFER TO ILLUSTRATION

main64189-35040iLN145,150,165,170,190,RZN168,173..DCB,XTR199708-200108

TYPE B:REFER TO ILLUSTRATION

main64189-35040iKDN145,150,165,170,190..DCB,XTR200108-200508

TYPE B:REFER ILLUST.

main64189-35050iLN145,150,165,170,190,RZN168,173199708-200108

TYPE E:REFER TO ILLUSTRATION

main64189-35050iKDN145,150,165,170,190200108-200508

TYPE E:REFER ILLUST.

66441SHIM, MOUNTING, NO.1

main90950-04030iKDN145,150,165,170,190..DCB,XTR199708-200108

T=5.0

9020112061

main90201-12061

9054013006

main90540-13006

9418461201

main94184-61201

5 parts on this diagram · 1 diagram in section
