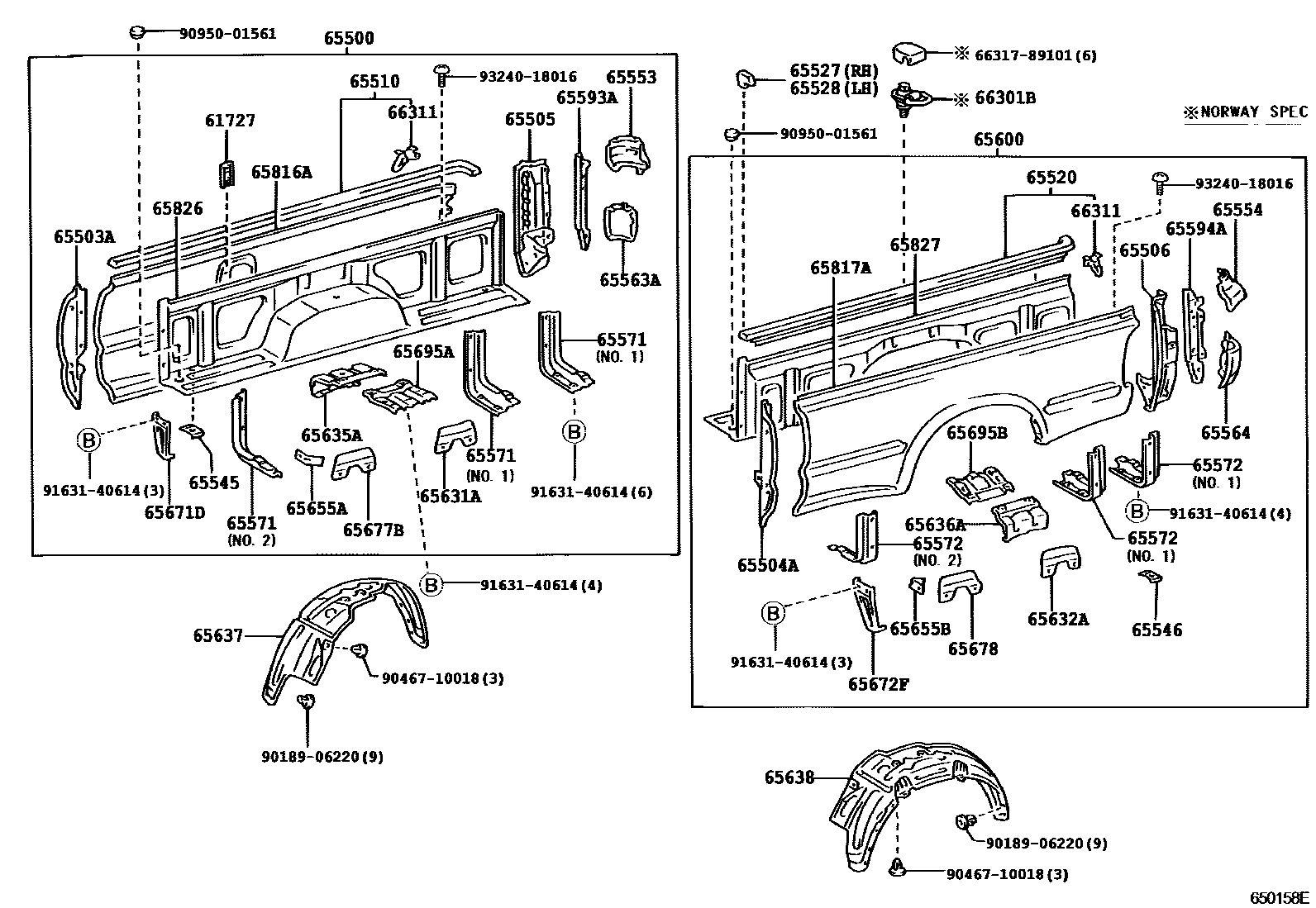

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1

61727PLATE, FUEL INLET BOX SHIELD

main61727-35010iKDN145,150,165,170..(SCB,XTR)..CBU199708-200108

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-35530iKDN145..SR199805-200108

main65500-35540iLN190199908-200108

main65500-35540iLN165..SR;LN165..RHD..DCB199708-200108

W(REFLEX REFLECTOR)

main65500-35560iKDN165,190..SR200108

W(OVER FENDER)

main65500-35590iKDN165..LHD..SR200108

SWEDEN OR NORWAY SPEC & W(GUARD FRAME)

main65500-35590iLN165..SR199708-200108

main65500-35700iLN145..DCB..DLX..CBU199708-200108

main65500-35710iKDN165..DCB..DLX..CBU200108

main65500-35710iLN165,RZN168..DCB..DLX..CBU199708-200108

W(REFLEX REFLECTOR & INNER HOOK)

main65500-35800iLN145..SCB..CBU199708-200108

main65500-35810iLN165,RZN168..SCB..CBU199708-200108

W(REFLEX REFLECTOR)

main65500-35810iKDN165..SCB..CBU200108

main65500-35880iKDN150..RHD200108

main65500-35890iLN170,RZN173..CBU199711-200108

main65500-3D010iLN150..CBU199711-200108

sub65500-35880

main65500-3D030iKDN170..SR..CBU200108

SWEDEN OR NORWAY SPEC & W(GUARD FRAME & OVER FENDER)

main65500-3D040iKDN165..LHD..SR200108

SWEDEN OR NORWAY SPEC & W(GUARD FRAME & OVER FENDER)

main65500-3D110iKDN170..SR..CBU200108

W(OVER FENDER)

65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH

main65503-35030iLN145,190..SR199805-200108

main65503-35030iLN165..SR;LN165..RHD..DCB199708-200108

W(INNER HOOK)

main65503-35050iLN150,170,RZN173..CBU199711-200108

main65551-35040iLN145,165,RZN168..DCB..DLX..CBU199708-200108

main65551-35050iKDN145,165..SCB..CBU199708-200108

65504APOST SUB-ASSY, SIDE PANEL FRONT END, LH

main65504-35030iLN145,190..SR199805-200108

main65504-35030iLN165..SR;LN165..RHD..DCB199708-200108

W(INNER HOOK)

main65504-35050iLN150,170,RZN173..CBU199711-200108

main65552-35040iLN145,165,RZN168..DCB..DLX..CBU199708-200108

main65552-35050iLN145,165..SCB..CBU199708-200108

65505POST SUB-ASSY, SIDE PANEL REAR END, RH

main65505-35010iLN145,165,RZN168..DLX..CBU199708-200108

main65505-35030iKDN165..SR;KDN145,150,170,190..(DCB,XTR)..CBU199711-200108

main65505-35030iLN165..SR;LN165..RHD..DCB199708-200108

W(INNER HOOK)

65506POST SUB-ASSY, SIDE PANEL REAR END, LH

main65506-35010iRZN168..SCB..CBU199708-200108

main65506-35030iLN145,190..SR;LN150,170,RZN173..CBU199711-200108

main65506-35030iLN165..SR;LN165..RHD..DCB199708-200108

W(INNER HOOK)

65510RAIL ASSY, SIDE PANEL TOP, RH

main65510-35020iLN145,165,RZN168..DCB..DLX..CBU199708-200108

main65510-89145iLN145,165,RZN168..SCB..CBU199708-200108

65520RAIL ASSY, SIDE PANEL TOP, LH

main65520-35020iLN145,165,RZN168..DCB..DLX..CBU199708-200108

main65520-89145iKDN145,165..SCB..CBU199708-200108

65527PROTECTOR, TOP RAIL SIDE, RH

main65527-89102iLN145,165..LHD..SCB..CBU199708-200208

65528PROTECTOR, TOP RAIL SIDE, LH

main65528-89101iLN145,165..LHD..SCB..CBU199708-200208

65545REINFORCEMENT, SIDE PANEL, NO.1

main65545-35010iLN145..DCB..DLX..CBU;LN165..LHD..DCB..CBU199708-200208

65546REINFORCEMENT, SIDE PANEL, NO.2

main65545-35010iKDN165..LHD..DCB..DLX..CBU199708-200208

65553PLATE, SIDE PANEL REAR END POST, UPPER RH

main65553-35010iLN145,165,RZN168..DLX..CBU199708-200108

65554PLATE, SIDE PANEL REAR END POST, UPPER LH

main65554-35010iRZN168..DCB;LN145,165..DLX..CBU199708-200108

65563APLATE, SIDE PANEL REAR END POST, LOWER RH

main65563-35010iLN165,RZN168..DLX..CBU199708-200108

main65563-35020iLN145..DLX..CBU199708-200108

65564PLATE, SIDE PANEL REAR END POST, LOWER LH

main65564-35010iRZN168..SCB..CBU199708-200108

main65564-35020iKDN145..DLX..CBU199708-200108

65571FRAME, SIDE PANEL, FRONT RH

main65571-35010iLN145,150,165,170,RZN173..(SCB,XTR)..CBU199708-200108

NO.2

main65572-35010iRZN168..SCB..CBU199708-200108

NO.1

65572FRAME, SIDE PANEL, FRONT LH

main65571-35010iRZN168..SCB..CBU199708-200108

NO.1

main65572-35010iLN145,150,165,170,RZN173..(SCB,XTR)..CBU199708-200108

NO.2

65593APLATE, SIDE PANEL REAR END POST INSIDE, RH

main65593-35020iKDN145,165..DLX..CBU199708-200108

main65593-35030iLN165..SR;LN165..RHD..DCB199708-200108

W(INNER HOOK)

main65593-35030iLN145,190..SR;LN150,170,RZN173..CBU199711-200108

65594APLATE, SIDE PANEL REAR END POST INSIDE, LH

main65594-35020iRZN168..DCB;LN145,165..DLX..CBU199708-200108

main65594-35030iLN145,190..SR;LN150,170,RZN173..CBU199711-200108

main65594-35030iLN165..SR;LN165..RHD..DCB199708-200108

W(INNER HOOK)

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-35450iKDN145..SR199805-200508

main65600-35460iKDN165,190..SR199908-200508

main65600-35460iLN165..SR;LN165..RHD..DCB199708-200108

W(REFLEX REFLECTOR)

main65600-35480iKDN165,190..SR200108-200508

W(OVER FENDER)

main65600-35510iKDN165..LHD..SR200108-200508

SWEDEN OR NORWAY SPEC & W(GUARD FRAME)

main65600-35510iLN165..SR199708-200108

main65600-35540iLN170,RZN173..CBU199711-200108

sub65600-35660

main65600-35590iLN145..DCB..DLX..CBU199708-200108

main65600-35600iLN165,RZN168..DCB..DLX..CBU199708-200108

W(REFLEX REFLECTOR & INNER HOOK)

main65600-35600iKDN165..DCB..DLX..CBU200108-200508

main65600-35660iKDN170..CBU200108-200508

main65600-35660iLN170,RZN173..CBU199711-200108

W(REFLEX REFLECTOR)

main65600-35690iLN145..SCB..CBU199708-200508

main65600-35700iKDN165..SCB..CBU199708-200508

W(REFLEX REFLECTOR)

main65600-35740iKDN150..CBU199711-200508

main65600-35750iKDN170..SR..CBU200108-200508

SWEDEN OR NORWAY SPEC & W(GUARD FRAME & OVER FENDER)

main65600-35760iKDN165..LHD..SR200108-200508

SWEDEN OR NORWAY SPEC & W(GUARD FRAME & OVER FENDER)

main65600-35850iKDN170..SR..CBU200108-200508

W(OVER FENDER)

65631APLATE, REAR WHEEL HOUSE, FRONT RH

main65631-89113iLN145,150,165,170,190,RZN168,173..CBU199708-200108

65632APLATE, REAR WHEEL HOUSE, FRONT LH

main65632-89112iRZN168..SCB..CBU199708-200108

65635APANEL, WHEEL HOUSE, REAR RH

main65635-35010iLN145,165,190,RZN168..DCB..CBU199708-200108

main65635-35020iKDN145,150,165,170..(SCB,XTR)..CBU199708-200108

65636APANEL, WHEEL HOUSE, REAR LH

main65636-35010iKDN145,165,190..DCB..CBU199708-200108

main65636-35020iLN145,150,165,170,RZN173..(SCB,XTR)..CBU199708-200108

65637LINER, REAR WHEEL HOUSE, RH

main65637-35020iKDN145,165,190..DCB..CBU199708-200108

main65637-35030iKDN145,150,165,170..(SCB,XTR)..CBU199708-200108

65638LINER, REAR WHEEL HOUSE, LH

main65638-35020iLN145,165,190,RZN168..DCB..CBU199708-200108

main65638-35030iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

65655ABRACKET, WHEEL HOUSE SEAL, FRONT

main65655-89103iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

65655BBRACKET, WHEEL HOUSE SEAL, FRONT

main65655-89103iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

65671DBRACE, SIDE PANEL SKIRT, FRONT RH

main65671-35010iKDN145,150,165,170..(SCB,XTR)..CBU199708-200108

65672FBRACE, SIDE PANEL SKIRT, FRONT LH

main65672-35010iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

65677BPATCH, WHEEL HOUSE, REAR RH

main65677-35010iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

65678PATCH, WHEEL HOUSE, REAR LH

main65678-35010iLN145,150,165,170,RZN168,173..(SCB,XTR)..CBU199708-200108

65695ABRACKET, WHEEL HOUSE BRACE, NO.2

main65695-35020iLN145,150,165,170,190,RZN168,173..CBU199708-200108

65695BBRACKET, WHEEL HOUSE BRACE, NO.2

main65695-35020iRZN168..SCB..CBU199708-200108

65816APANEL, REAR BODY SIDE, RH

main65816-35060iKDN145..SR199805-200108

main65816-35070iLN165..SR;LN165..RHD..DCB199708-200108

W(REFLEX REFLECTOR)

main65816-35070iLN190199908-200108

main65816-35080iKDN165,190..SR200108

W(OVER FENDER)

main65816-35120iKDN150..CBU199711-200108

main65816-35130iKDN170..CBU199711-200108

main65816-35150iLN145,165,RZN168..DCB..DLX..CBU199708-200108

W(2 LATCH HANDLE)

main65816-35150iKDN165..DCB..DLX..CBU200108

main65816-35160iKDN145,165..SCB..CBU199708-200108

main65816-35200iKDN170..SR..CBU200108

W(OVER FENDER)

65817APANEL, REAR BODY SIDE, LH

main65817-35060iLN145..SR199805-200108

main65817-35070iKDN165,190..SR199908-200108

main65817-35070iLN165..SR;LN165..RHD..DCB199708-200108

W(REFLEX REFLECTOR)

main65817-35080iKDN165,190..SR200108

W(OVER FENDER)

main65817-35120iKDN150..CBU199711-200108

main65817-35130iLN170,RZN173..CBU199711-200108

main65817-35150iLN145,165,RZN168..DCB..DLX..CBU199708-200108

W(2 LATCH HANDLE)

main65817-35150iKDN165..DCB..DLX..CBU200108

main65817-35160iRZN168..SCB..CBU199708-200108

main65817-35200iKDN170..SR..CBU200108

W(OVER FENDER)

65826PANEL, REAR BODY SIDE, INNER RH

main65826-35060iLN165..SR;LN165..RHD..DCB199708-200108

W(INNER HOOK)

main65826-35060iKDN145,165,190..SR199805-200108

main65826-35090iLN150,170,RZN173..CBU199711-200108

main65826-35120iLN145,165,RZN168..DCB..DLX..CBU199708-200108

W(INNER HOOK)

main65826-35120iKDN165..DCB..DLX..CBU200108

main65826-89111iKDN145,165..SCB..CBU199708-200108

65827PANEL, REAR BODY SIDE, INNER LH

main65827-35060iLN145,190..SR199805-200108

main65827-35060iLN165..SR;LN165..RHD..DCB199708-200108

W(INNER HOOK)

main65827-35090iLN150,170,RZN173..CBU199711-200108

main65827-35120iLN145,165,RZN168..DCB..DLX..CBU199708-200108

main65827-89111iKDN145,165..SCB..CBU199708-200108

66301BHOOK SUB-ASSY, ROPE

main66310-89101iLN145,150,165,170,RZN173..LHD..(SCB,XTR)..CBU199708-200208

NORWAY SPEC

main66310-89101iLN145,150,165,170,RZN173..LHD..(SCB,XTR)..CBU199708-200208

SWEDEN OR NORWAY SPEC

main66312-34010iLN165..RHD..DCB;LN145,165,190..SR;LN150,170,RZN173..CBU199708-200108

66311HOOK, ROPE

main66311-89109iRZN168..SCB..CBU199708-200108

6631789101HOOK, ROPE, NO.7

main66317-89101

9018906220

main90189-06220

9046710018

main90467-10018

9095001561

main90950-01561

9163140614

main91631-40614

9324018016

main93240-18016

47 parts on this diagram · 4 diagrams in section
