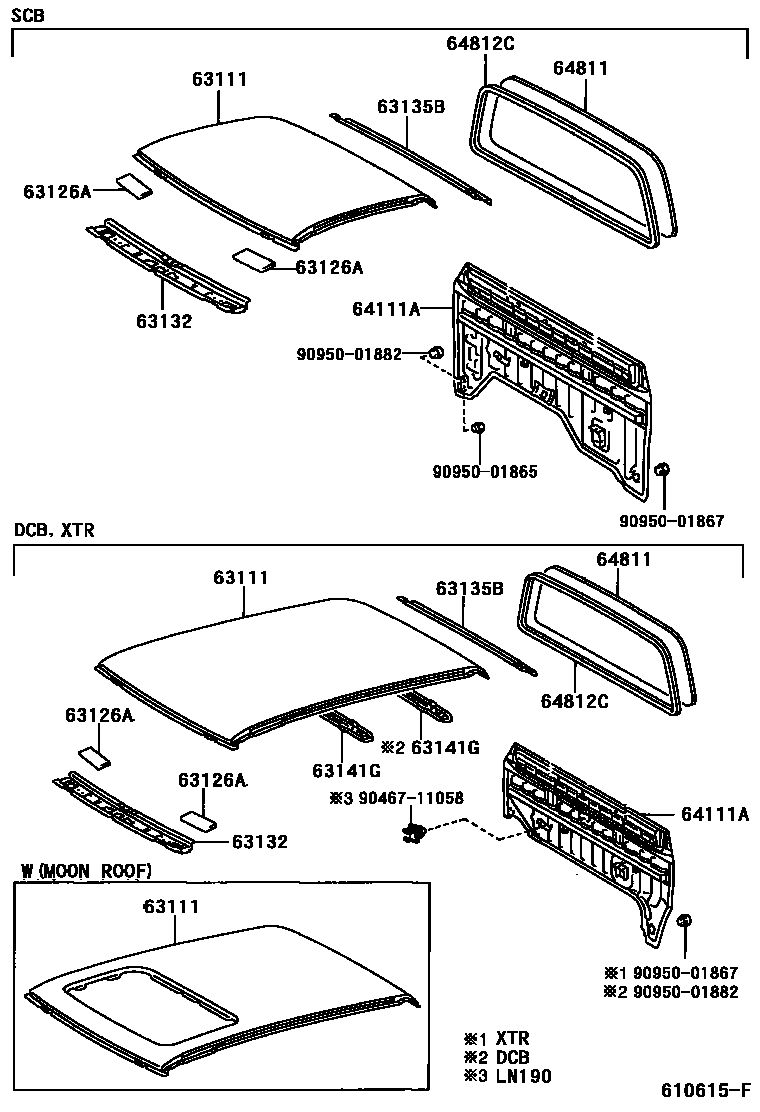

ROOF PANEL & BACK PANEL

0001 1 0002 1W(MOON ROOF)

63111PANEL, ROOF

main63111-35150iLN145,165,RZN168..SCB199708-200108

main63111-35190iKDN150,170199711-200108

main63111-35200iLN150,170,RZN173199711-200108

W(MOON ROOF)

main63111-35220iLN145,165,190,RZN168..DCB199708-200108

main63111-35240iLN165..SR199708-200108

W(MOON ROOF)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-35030iLN145,150,165,170,190,RZN168,173199708-200108

63132PANEL, WINDSHIELD HEADER, INNER

main63132-35030iLN145,150,165,170,190,RZN168,173199708-200108

63135BPANEL, BACK WINDOW, UPPER INNER

main63135-04040iLN150,170,RZN173199711-200108

main63135-35070iKDN145,165..SCB199708-200108

main63135-35090iLN145,165,190,RZN168..DCB199708-200108

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-35030iKDN145,165,190..DCB199708-200108

64111APANEL, BACK

main64101-35050iKDN145,165..LHD..SCB199708-200508

main64101-35060iLN145,165,RZN168..SCB199708-200508

W(TRIM)

main64101-35080iKDN150,170199805-200508

main64101-35080iLN150,170,RZN173..CBU199711-200108

W(REAR SEAT BELT)

main64101-35100iLN165..RHD..DCB199708-200108

W(TRIM)

sub64101-35130

main64101-35120iLN145,165,RZN168..DCB..DLX199708-200508

main64101-35130iKDN145,165,190..SR200108-200508

64811GLASS, BACK WINDOW

main64811-35010iKDN165..SCB;KDN145,170,190;KDN150,165..LHD..(DCB,XTR)199708-200108

*TT,T=3.5,GREEN

main64811-35030iKDN145,150,165,170,190..DCB,XTR199708-200301

*EHTT,T=3.5,GREEN

sub64811-35031

main64811-35031iKDN145,150,165,170,190..DCB,XTR200301

*EHTT,T=3.5,GREEN

64812CWEATHERSTRIP, BACK WINDOW GLASS

main64812-35030iLN145,150,165,170,190,RZN168,173199708-200108

9046711058

main90467-11058

9095001865

main90950-01865

9095001867

main90950-01867

9095001882

main90950-01882

12 parts on this diagram · 2 diagrams in section
