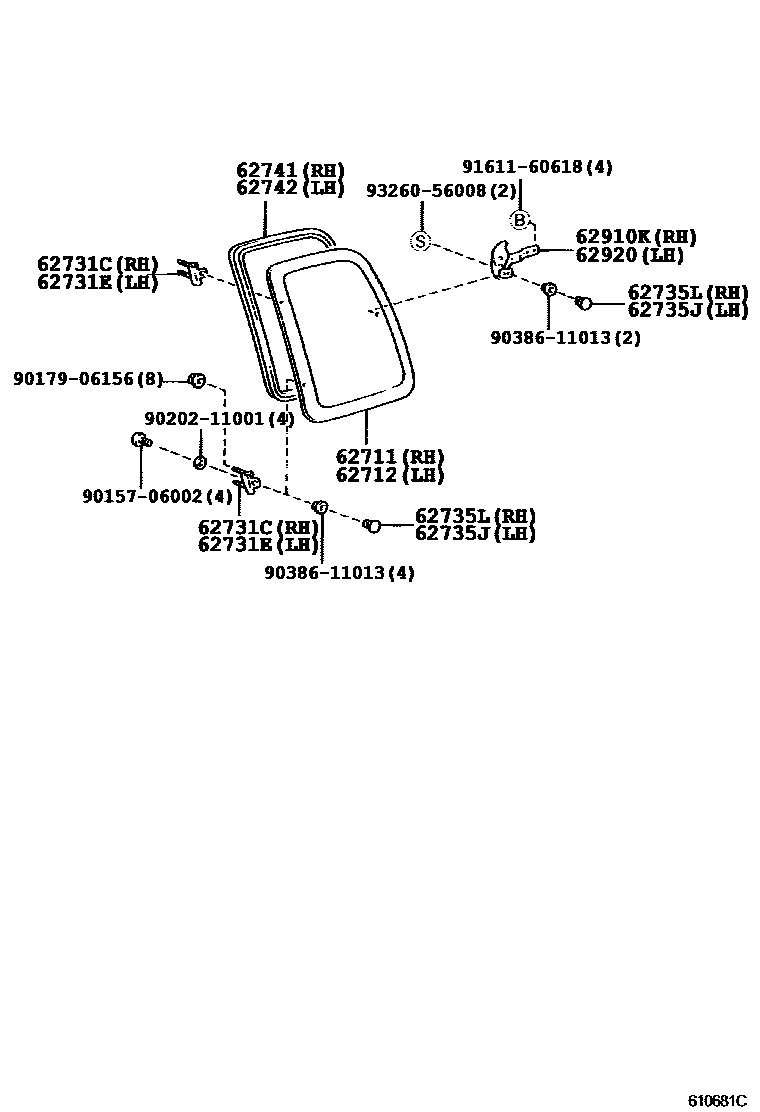

SIDE WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-35010iKDN150,170199711-200301

*TT,T=3.5,GREEN

sub62711-35011

main62711-35011iKDN150,170200301

*TT,T=3.5,GREEN

62712GLASS, QUARTER WINDOW, LH

main62712-35010iLN150,170,RZN173199711-200301

*TT,T=3.5,GREEN

sub62712-35011

main62712-35011iKDN150,170200301

*TT,T=3.5,GREEN

62731CHINGE, QUARTER WINDOW, RH

main62731-89101iKDN150,170199711-200108

UPPER

main62731-89102iKDN150,170199711-200108

LOWER

62731EHINGE, QUARTER WINDOW, LH

main62731-89101iKDN150,170199711-200108

LOWER

main62731-89102iLN150,170,RZN173199711-200108

UPPER

62735JRETAINER, QUARTER WINDOW HINGE, LH

main62735-35010iLN150,170,RZN173199711-200108

62735LRETAINER, QUARTER WINDOW HINGE, RH

main62735-35010iLN150,170,RZN173199711-200108

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-35020iLN150,170,RZN173199711-200307

sub62741-35021

main62741-35021iKDN150,170200307-200402

sub62741-35022

main62741-35022iKDN150,170200403-200508

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-35020iLN150,170,RZN173199711-200307

sub62741-35021

main62741-35021iKDN150,170200307-200402

sub62741-35022

main62741-35022iKDN150,170200403-200508

62910KLOCK ASSY, QUARTER WINDOW, RH

main62910-35020iLN150,170,RZN173199711-200108

sub62910-35021

main62910-35020-B0iKDN150,170200108-200401

MD.MOON MIST,TRIM1#

sub62910-35020

sub62910-35021

main62910-35021-B0iKDN150,170200402

MD.MOON MIST,TRIM1#

sub62910-35021

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-35020iLN150,170,RZN173199711-200108

sub62910-35021

main62910-35020-B0iKDN150,170200108-200401

MD.MOON MIST,TRIM1#

sub62910-35020

sub62910-35021

main62910-35021-B0iKDN150,170200402

MD.MOON MIST,TRIM1#

sub62910-35021

9015706002

main90157-06002

9017906156

main90179-06156

9020211001

main90202-11001

9038611013

main90386-11013

9161160618

main91611-60618

9326056008

main93260-56008

16 parts on this diagram · 1 diagram in section
