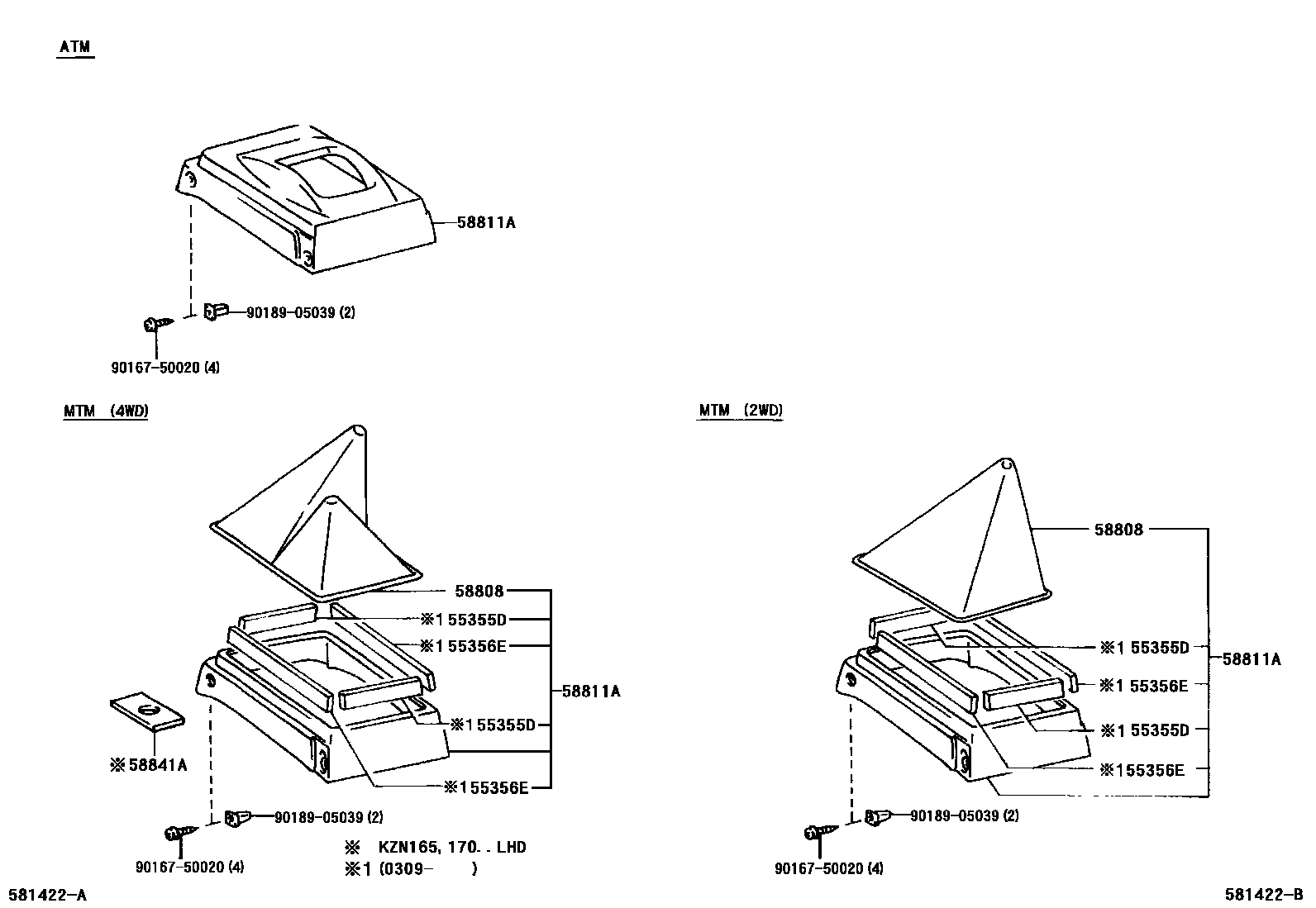

CONSOLE BOX & BRACKET

0001 1 0002 1

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-35050iKDN165..LHD;KDN145,150,170200309

55356ECUSHION, INSTRUMENT PANEL, NO.2

main55356-35050iKDN165..LHD;KDN145,150,170200309

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-35190-B0iLN145,150199708-200108

MD.MOON MIST,TRIM1#

sub58808-35190

main58808-35200-B0iKDN165..RHD199708-200108

MD.MOON MIST,TRIM1#

main58808-35220-B0iKDN165,170..LHD199708-200108

MD.MOON MIST,TRIM1#

sub58808-35220

58811ABOX, CONSOLE, FRONT

main58802-35110-B0iLN145,150199708-200309

MD.MOON MIST,TRIM1#

sub58802-35111

main58802-35111-B0iKDN145,150200309

MD.MOON MIST,TRIM1#

sub58802-35111

main58802-35120-B0iLN165..RHD199708-200108

MD.MOON MIST,TRIM1#

main58802-35130-B0iLN165,170,RZN168,173..LHD199708-200309

MD.MOON MIST,TRIM1#

sub58802-35131

main58802-35131-B0iKDN165,170..LHD200309

MD.MOON MIST,TRIM1#

main58811-35120-B0iKDN190199908-200108

MD.MOON MIST,TRIM1#

58841ACOVER, SHIFTING HOLE

main58841-35010iKDN165,170..LHD200108

9016750020

main90167-50020

9018905039

main90189-05039

7 parts on this diagram · 2 diagrams in section
