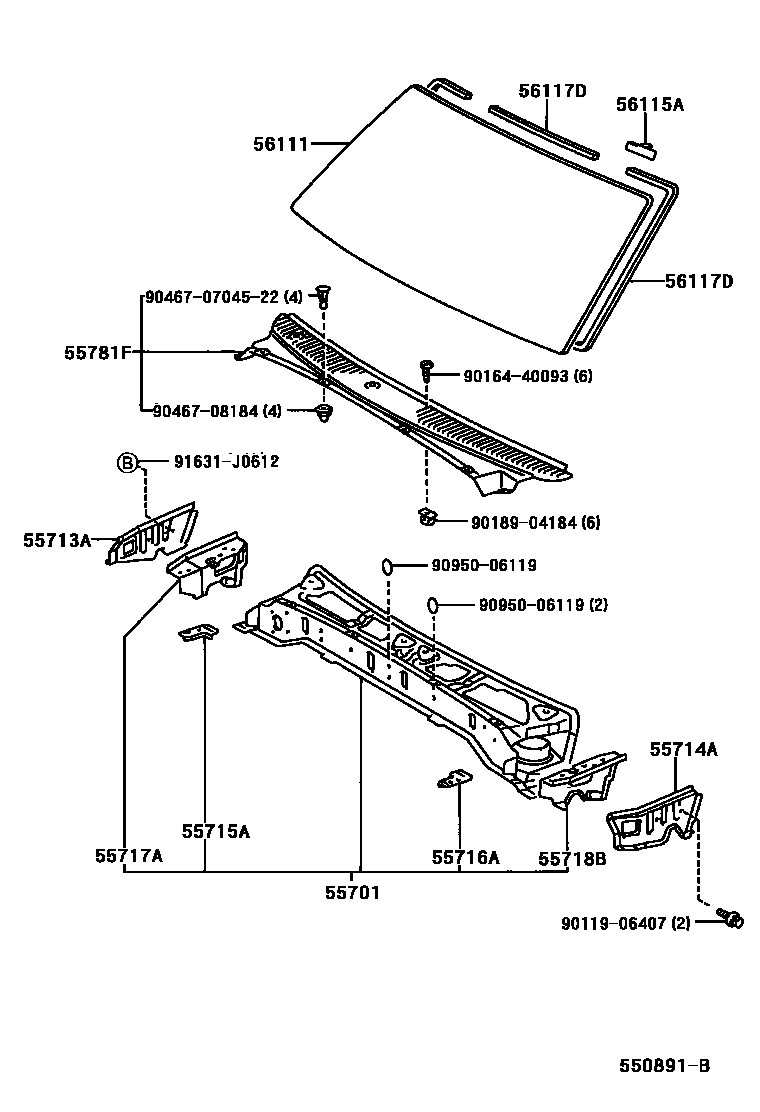

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-35140iRZN168199708-200108

W(NAME PLATE)

main55700-35140iRZN173199711-200108

main55700-35150iRZN168,173..CBU199708-199808

VW BRAND

sub55700-35140

main55700-35270iLN145,150..LHD199708-199805

sub55700-35430

main55700-35300iLN145,150..LHD199708-199805

VW BRAND

main55700-35310iLN170199711-199805

main55700-35310iLN165..LHD199708-199805

W(NAME PLATE)

main55700-35320iLN165,170..LHD..CBU199708-199805

VW BRAND

sub55700-35310

main55700-35330iLN145,165..RHD199708-200108

main55700-35420iLN145..LHD..SCB;LN145,150..(DCB,XTR)..DLX..CBU199805-199808

VW BRAND

sub55700-35430

main55700-35430iLN145,150..LHD199805-200108

main55700-35440iLN165,170..LHD..CBU199805-199808

VW BRAND

sub55700-35450

main55700-35450iLN165,170,190..LHD199805-200108

main55700-35610iKDN145,150,165,170,190..LHD200108-200508

main55700-35660iKDN145,150,165..RHD200108-200508

55713APANEL, COWL TOP SIDE, RH

main55713-35011iLN145,150,165,170,190,RZN168,173199708-200108

55714APANEL, COWL TOP SIDE, LH

main55714-35011iLN145,150,165,170,190,RZN168,173199708-200108

55715ABRACE, COWL TOP TO APRON, RH

main55715-35010iLN145,150,165,170,190,RZN168,173199708-200108

55716ABRACE, COWL TOP TO APRON, LH

main55716-35010iLN145,150,165,170,190,RZN168,173199708-200108

55717APANEL, COWL TOP SIDE, INNER RH

main55717-35020iLN145,150,165,170,190,RZN168,173199708-200108

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-35020iKDN145,150,165,170,190199708-200108

55781FLOUVER, COWL TOP VENTILATOR

main55708-35030iLN145,165..RHD..CBU199708-200108

sub55708-35031

main55708-35031iKDN145,150,165..RHD200108-200403

sub55708-35032

main55708-35032iKDN145,150,165..RHD200403

main55708-35040iRZN168..SCB199708-200108

sub55708-35041

main55708-35041iKDN145,150,165,170,190..LHD200108-200307

sub55708-35042

main55708-35042iKDN145,150,165,170,190..LHD200307

56111GLASS, WINDSHIELD

main56111-35010iLN145,165,RZN168..DLX199708-199901

*LAM,T=4.76

main56111-35011iLN145,150,165,170,RZN168,173..DLX199901-200108

*LAM,T=4.76

sub56111-35012

main56111-35012iKDN145,150,165,170..DLX200108

*LAM,T=4.76

main56111-35040iLN165..SR;LN150,170,RZN173199708-199901

*LAM,T=4.76,W(TOP SHADE)

main56111-35041iLN165..RHD..DCB;LN150,170,RZN173;LN145,165,190..SR199901-200108

*LAM,T=4.76,W(TOP SHADE)

sub56111-35042

main56111-35042iKDN145,150,165,170,190..SR200108

*LAM,T=4.76,W(TOP SHADE)

sub56111-35043

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56116-35050iLN145,150,165,170,190,RZN168,173199708-200108

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-47010iLN145,150,165,170,190,RZN168,173199708-200508

*D,L=2940

main56117-52040iLN145,150,165,170,190,RZN168,173199708-200508

*D,L=602

sub56117-74010

9011906407

main90119-06407

9016440093

main90164-40093

9018904184

main90189-04184

904670704522

main90467-0704522

9046708184

main90467-08184

9095006119

main90950-06119

91631J0612

main91631-J0612

18 parts on this diagram · 1 diagram in section
