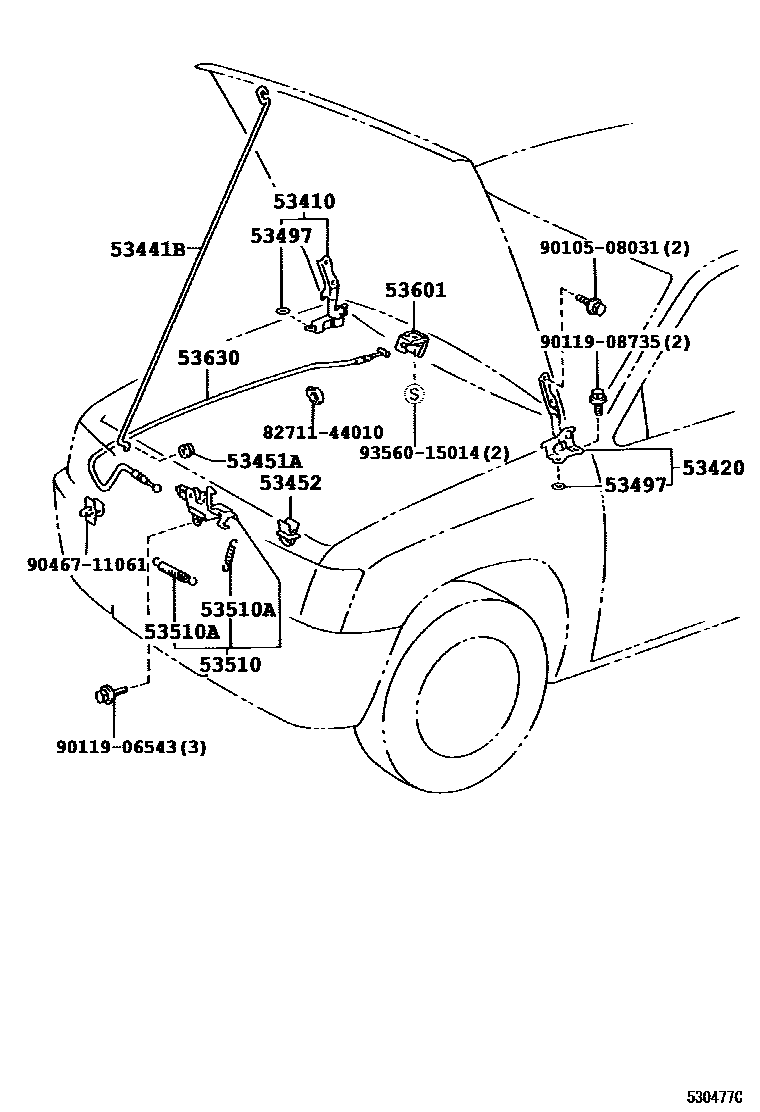

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-35030iLN145,150,165,170,190,RZN168,173199708-200108

53420HINGE ASSY, HOOD, LH

main53420-35030iLN145,150,165,170,190,RZN168,173199708-200108

53441BSUPPORT, HOOD

main53441-35030iLN145,150,165,170,190,RZN168,173199708-200001

sub53441-35031

main53441-35031iLN145,150,165,170,190,RZN168,173200001-200108

main53441-35050iKDN145,150,165,170,190200108

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15012iLN145,150,165,170,190,RZN168,173199708-200108

main90480-15027iKDN145,150,165,170,190200108

53452HOLDER, HOOD STAY

main53452-90351iLN145,150,165,170,190,RZN168,173199708-200108

main53455-35010iKDN145,150,165,170,190200108

53497PAD, HOOD HINGE, NO.1

main53497-35020iKDN145,150,165,170,190199708-200108

T=1.0

main53497-35030iLN145,150,165,170,190,RZN168,173199708-200108

T=0.5

main53497-35040iKDN145,150,165,170,190199708-200108

T=2.0

53510LOCK ASSY, HOOD

main53510-35110iLN145,165..RHD199708-200108

main53510-35130iLN145,150,165,170,190,RZN168,173..LHD199708-200108

main53510-35200iKDN145,150,165..RHD200108-200302

sub53510-35201

main53510-35201iKDN145,150,165..RHD200302

main53510-35230iKDN145,150,165,170,190..LHD200108-200302

sub53510-35231

main53510-35231iKDN145,150,165,170,190..LHD200302

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-07021iKDN145,150,165,170,190199708

WD=0.7,CW=37.25

main90506-20008iKDN145,150,165,170,190199708

WD=2.0,CW=17

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-B3iKDN145,150,165,170,190200108

MD.MOON MIST,TRIM1#

sub53601-10020

sub53601-20060

main53601-20060-B3iLN145,150,165,170,190,RZN168,173199708-200108

MD.MOON MIST,TRIM1#

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-35050iLN145,150,165,170,190,RZN168,173199708-200108

8271144010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44010

9010508031

main90105-08031

9011906543

main90119-06543

9011908735

main90119-08735

9046711061

main90467-11061

9356015014

main93560-15014

16 parts on this diagram · 2 diagrams in section
