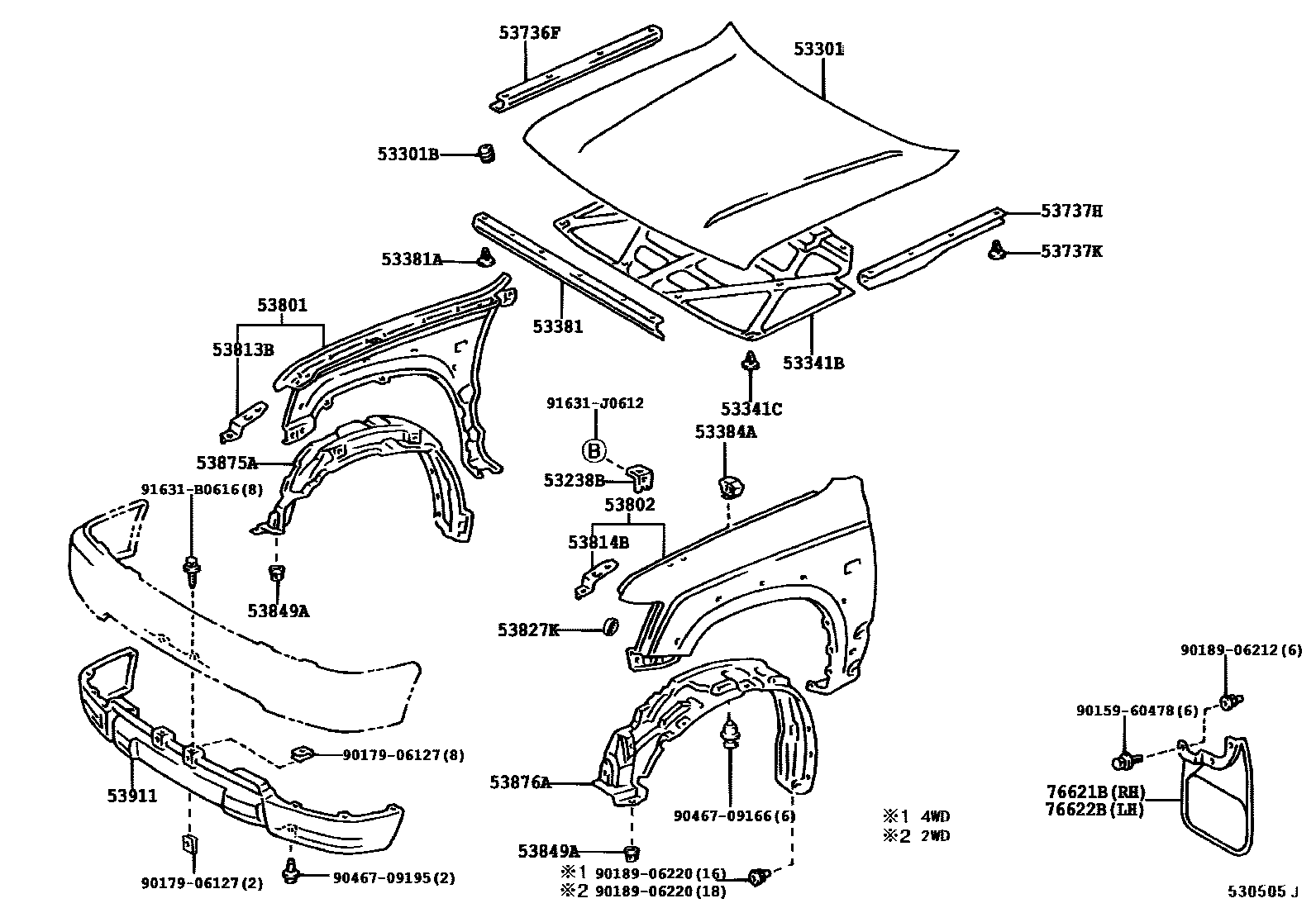

HOOD & FRONT FENDER

0001 1 0002 1

53238BBRACKET, HOOD BUMPER MOUNTING

main53238-35010iLN145,150,165,170,190,RZN168,173199708-200108

53301HOOD SUB-ASSY

main53301-35060iLN145,150,165,170,190,RZN168,173199708-200108

main53301-35100iKDN145,150,165,170,190200108-200508

53301BCUSHION, HOOD BUMPER

main90541-15004iLN145,150,165,170,190,RZN168,173199711-200508

main90541-15010iLN145,165,RZN168199708-199711

53341BINSULATOR, HOOD

main53341-35060iLN145,150,165,170,190199708-200108

sub53341-35120

main53341-35100iKDN165..DLX;KDN145,150,170200108-200508

main53341-35110iKDN165,190..SR200108-200508

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iLN145,150,165,170199708-199801

main90467-09118iKDN145,150,165,170,190199801-200508

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-35030iLN145,165..LHD..SCB;LN145,150,165,170,190..LHD..(DCB,XTR)..CBU199708-200108

main53381-35040iKDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU200108-200307

main53381-35041iKDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU200307-200508

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iLN145,165..LHD..SCB;LN145,150,165,170,190..LHD..(DCB,XTR)..CBU199708-200508

53384ABUMPER, FENDER TO HOOD

main53384-35010iLN145,150,165,170,190,RZN168,173199708-200508

53736FSEAL, FRONT FENDER APRON, RH

main53736-35020iLN145,150,165,170,190..LHD199708-200508

53737HSEAL, FRONT FENDER APRON, LH

main53737-35040iLN145,165..RHD199708-200508

53737KCLIP(FOR FRONT FENDER APRON SEAL)

main90467-08011iLN145,150,165,170,190199708-200508

53801FENDER SUB-ASSY, FRONT RH

main53801-35100iRZN168;LN165..SCB;LN165..DCB..CBU199708-200008

W(SIDE TURN SIGNAL LAMP)

sub53801-35101

main53801-35100iLN165..DCB..IV3;LN170,190,RZN173199711-200008

sub53801-35101

main53801-35101iLN165,170,190,RZN168,173200008-200108

main53801-35110iLN165..RHD199708-200008

W(ANTENNA & SIDE TURN SIGNAL LAMP)

sub53801-35111

main53801-35111iLN165..RHD200008-200108

W(ANTENNA)

main53801-35170iLN145..SCB;LN145..DCB..DLX..CBU199708-200008

W(SIDE TURN SIGNAL LAMP)

sub53801-35171

main53801-35170iLN150;LN145..SR;LN145..DCB..IV3199711-200008

sub53801-35171

main53801-35171iLN145,150200008-200108

main53801-35180iLN145..RHD199708-200008

W(ANTENNA & SIDE TURN SIGNAL LAMP)

sub53801-35181

main53801-35331iLN145..RHD200008-200108

W(ANTENNA)

sub53801-35181

main53801-35370iKDN145,150200108-200508

main53801-35380iKDN145,150..RHD200108-200508

W(ANNTENA)

main53801-35450iKDN165,170,190200108-200508

W(SIDE TURN SIGNAL LAMP)

main53801-35460iKDN165..RHD200108-200508

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53801-35470iKDN165,170,190..SR..CBU200108-200508

main53801-35480iKDN165..RHD..SR200108-200508

##

53802FENDER SUB-ASSY, FRONT LH

main53802-35200iLN165,170,190,RZN168,173..LHD199708-200008

W(ANTENNA & SIDE TURN SIGNAL LAMP)

sub53802-35201

main53802-35201iLN165,170,190,RZN168,173..LHD200008-200108

W(ANTENNA)

main53802-35280iLN145..SCB;LN145,150..(DCB,XTR)..DLX..CBU199708-200008

W(SIDE TURN SIGNAL LAMP)

sub53802-35281

main53802-35280iLN145..SR199805-200008

sub53802-35281

main53802-35281iLN145..SCB;LN145,150..(DCB,XTR)..CBU200008-200108

main53802-35290iLN145,150..LHD199708-200008

W(ANTENNA & SIDE TURN SIGNAL LAMP)

sub53802-35291

main53802-35291iLN145,150..LHD200008-200108

W(ANTENNA)

main53802-35320iLN165..LHD..SCB199708-200008

W(SIDE TURN SIGNAL LAMP)

sub53802-35321

main53802-35321iLN165..RHD;LN165,170,190,RZN168,173..LHD..(DCB,XTR)..CBU200008-200108

main53802-35480iKDN145..SCB;KDN145,150..(DCB,XTR)..CBU200108-200508

W(SIDE TURN SIGNAL LAMP)

main53802-35490iKDN145,150..LHD200108-200508

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53802-35540iKDN165..RHD;KDN165,170..LHD..(DCB,XTR)..CBU200108-200508

W(SIDE TURN SIGNAL LAMP)

main53802-35550iKDN165,170,190..LHD200108-200508

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53802-35570iKDN165,170,190..LHD..SR..CBU200108-200508

##

main53802-35580iKDN165,170..SR..CBU200108-200508

53813BEXTENSION, FRONT FENDER, RH

main53813-35010iLN145,150;LN165..RHD199708-200108

main53813-35040iKDN145,150,165,170,190200108-200508

53814BEXTENSION, FRONT FENDER, LH

main53814-35010iLN145,150,165,170,190,RZN168,173200008-200108

main53814-35040iKDN145,150,165,170,190200108-200508

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-35010iLN145,150,165,170,190,RZN168,173199902-200007

sub53827-35011

main53827-35011iLN145,150,165,170,190,RZN168,173200007-200108

53849ACAP, FRONT WHEEL OPENING

main53849-35010iKDN145,150,165,170,190199904-200508

53875ALINER, FRONT FENDER, RH

main53875-35030iLN165,170,RZN168,173199708-199904

main53875-35040iLN145,150199708-200108

main53875-35060iLN165,170,190,RZN168,173199904-200108

main53875-35070iKDN145,150200108-200508

main53875-35080iKDN165,170,190200108-200508

53876ALINER, FRONT FENDER, LH

main53876-35020iLN165,170,RZN168,173199708-199904

main53876-35030iLN145,150199708-200108

main53876-35050iLN165,170,190,RZN168,173199904-200108

main53876-35060iKDN145,150200108-200508

main53876-35070iKDN165,170,190200108-200508

53911PANEL, FRONT VALANCE

main53911-35190iLN165,170,190,RZN168,173199708-200108

main53911-35220iLN145,150199708-200108

main53911-35360iKDN145,150200108-200508

main53911-35370-B0iKDN145,150..SR..CBU200108-200508

SILVER ME.,2HT

main53911-35370-F0iKDN145,150..SR..CBU200108-200508

CHAMPAGNE M.M.,587

main53911-35390iKDN165,170,190200108-200508

main53911-35400-B0iKDN165,170,190..SR..CBU200108-200508

SILVER ME.,2HT

main53911-35400-F0iKDN165,170,190..SR..CBU200108-200508

CHAMPAGNE M.M.,587

76621BMUDGUARD, FRONT BODY, RH

main76603-35020iKDN165,170,190..SR..CBU200108-200508

W(OVER FENDER)

main76621-35050iLN165,170,190,RZN168,173199708-200508

main76621-35090iLN145..LHD..CBU199708-200508

76622BMUDGUARD, FRONT BODY, LH

main76604-35020iKDN165,170,190..SR..CBU200108-200508

W(OVER FENDER)

main76622-35050iKDN165,170,190199708-200508

main76622-35090iKDN145..LHD..CBU199708-200508

9015960478

main90159-60478

9017906127

main90179-06127

9018906212

main90189-06212

9018906220

main90189-06220

9046709166

main90467-09166

9046709195

main90467-09195

91631B0616

main91631-B0616

91631J0612

main91631-J0612

30 parts on this diagram · 2 diagrams in section
