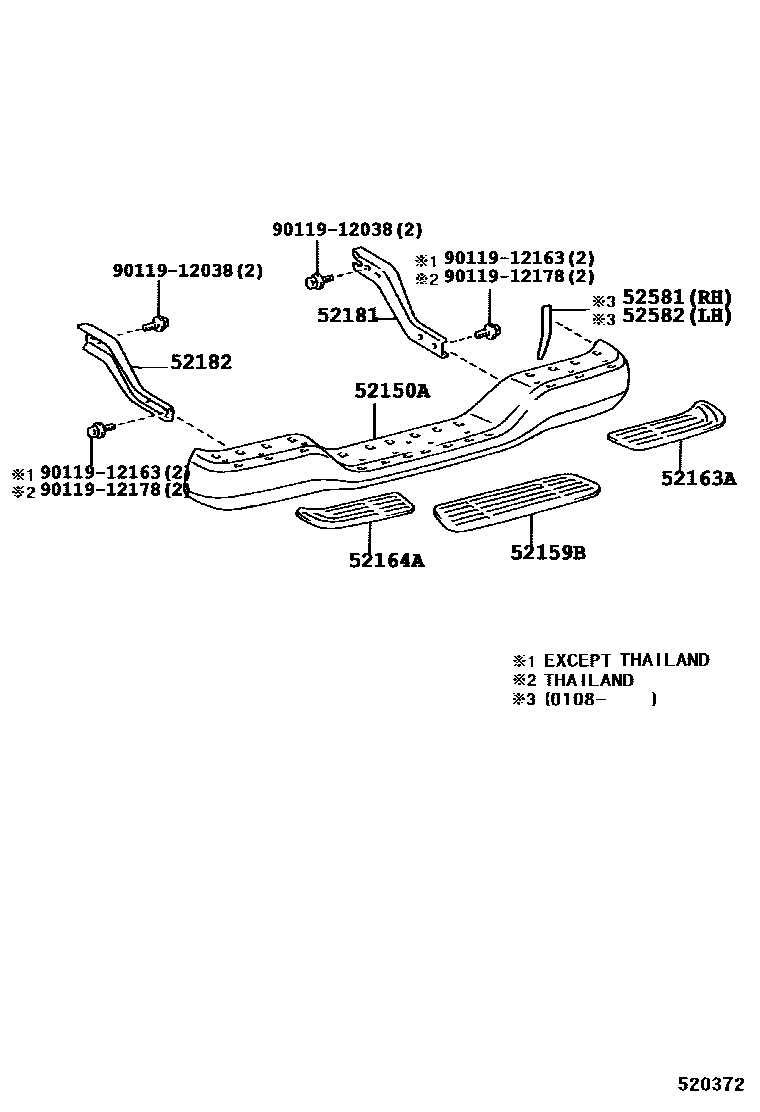

REAR BUMPER & BUMPER STAY

52150ABUMPER ASSY, REAR

main52105-35180iKDN145,150,190;KDN165,170..CBU200108

main52105-35180iLN165,RZN168..CBU;LN145,150,170,RZN173199708-200108

W(STEP BUMPER)

main52105-35190iLN145..DCB;LN165,RZN168..CBU199708-199711

CHROME PLATED

sub52105-35210

main52105-35200-F0iKDN145,150,165,170,190..SR..CBU200108

CHAMPAGNE M.M.,587

main52105-35210iKDN150;KDN145,190..LHD;KDN165,170..CBU199711-200109

CHROME PLATED

sub52105-35320

main52105-35320iKDN150;KDN145,190..LHD;KDN165,170..CBU200109

CHROME PLATED

52159BPLATE, REAR BUMPER

main52159-35030iLN165,RZN168..CBU;LN145,150,170,RZN173199708-200108

52163APLATE, REAR BUMPER, RH

main52163-35030iLN165,RZN168..CBU;LN145,150,170,RZN173199708-200108

52164APLATE, REAR BUMPER, LH

main52164-35030iLN165,RZN168..CBU;LN145,150,170,RZN173199708-200108

52181ARM, REAR BUMPER, RH

main52181-35040iLN145;LN165,RZN168..CBU199708-200108

main52181-35060iLN170..CBU;LN150,RZN173199711-200108

52182ARM, REAR BUMPER, LH

main52182-35040iLN145,190;LN165..CBU;RZN168..SCB..CBU199708-200108

main52182-35060iLN170..CBU;LN150,RZN173199711-200108

52581PROTECTOR, REAR BUMPER, RH

main52581-35010iKDN165,170,190..SR..CBU200108-200508

52582PROTECTOR, REAR BUMPER, LH

main52582-35010iKDN165,170,190..SR..CBU200108-200508

9011912038

main90119-12038

9011912163

main90119-12163

9011912178

main90119-12178

11 parts on this diagram · 1 diagram in section
