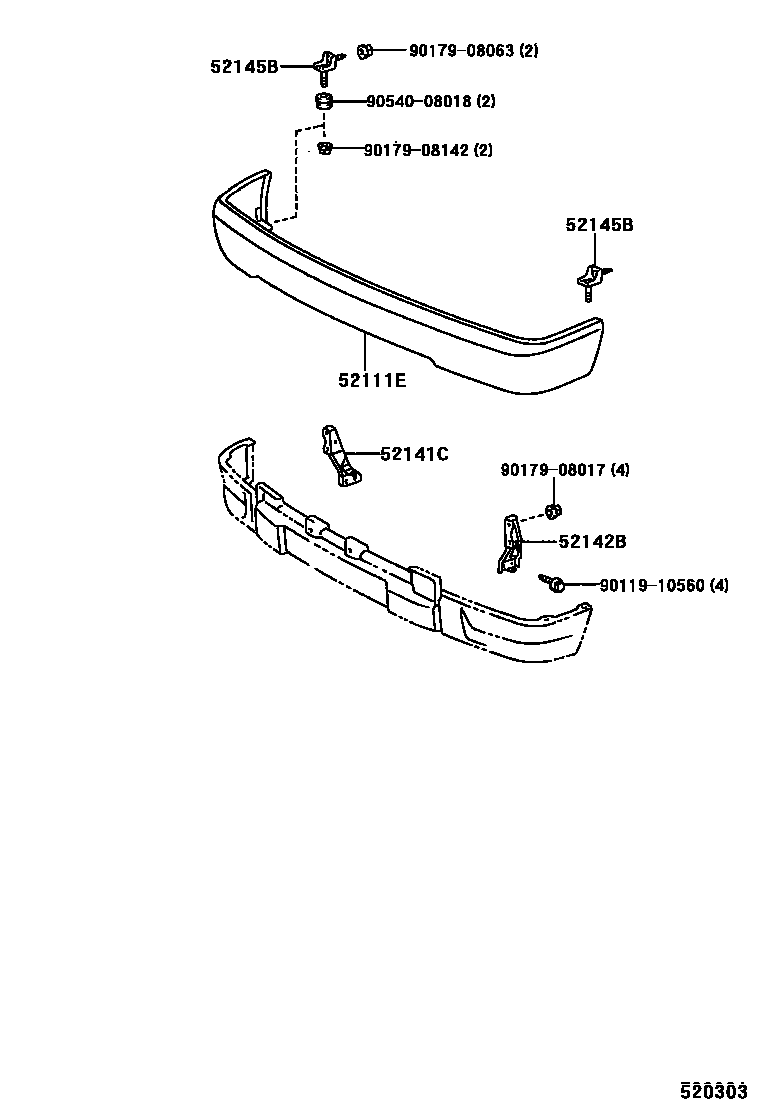

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52111EBAR, FRONT BUMPER

main52101-35360iLN165,170,190,RZN168,173199708-200108

sub52101-35939

main52101-35370iLN165,170,190,RZN168,173199708-200108

CHROME PLATED

main52101-35380iLN165..SR;LN165..LHD..SCB..CBU;LN170,RZN168,173..(DCB,XTR)..CBU199708-200108

W(HEADLAMP CLEANER)

sub52101-35930

main52101-35400iLN145,150199708-200108

sub52101-35938

main52101-35410iLN145,150..DCB,XTR199708-200108

CHROME PLATED

main52101-35420iLN150..CBU;LN145..LHD..SCB199708-200108

W(HEADLAMP CLEANER)

sub52101-35931

main52101-35600iKDN145,150,165,170,190200108

main52101-35610iKDN150,165;KDN145,170,190..LHD200108

CHROME PLATED

main52101-35620-F0iKDN145,150,165,170,190..SR..CBU200108

CHAMPAGNE M.M.,587

sub52101-35936

main52101-35630iKDN150..SR..CBU;KDN145..LHD..SCB;KDN165..LHD..SCB..CBU200108-200208

W(HEADLAMP CLEANER)

sub52101-35935

52141CARM, FRONT BUMPER, RH

main52141-35060iLN145,150,165,170,190,RZN168,173199708-200108

main52141-35080iKDN145,150,165,170,190200108-200508

52142BARM, FRONT BUMPER, LH

main52142-35060iLN145,150,165,170,190,RZN168,173199708-200108

main52142-35080iKDN145,150,165,170,190200108-200508

52145BBRACKET, FRONT BUMPER SIDE MOUNTING

main52145-89102iLN145,150,165,170,190,RZN168,173199708-200508

9011910560

main90119-10560

9017908017

main90179-08017

9017908063

main90179-08063

9017908142

main90179-08142

9054008018

main90540-08018

9 parts on this diagram · 2 diagrams in section
