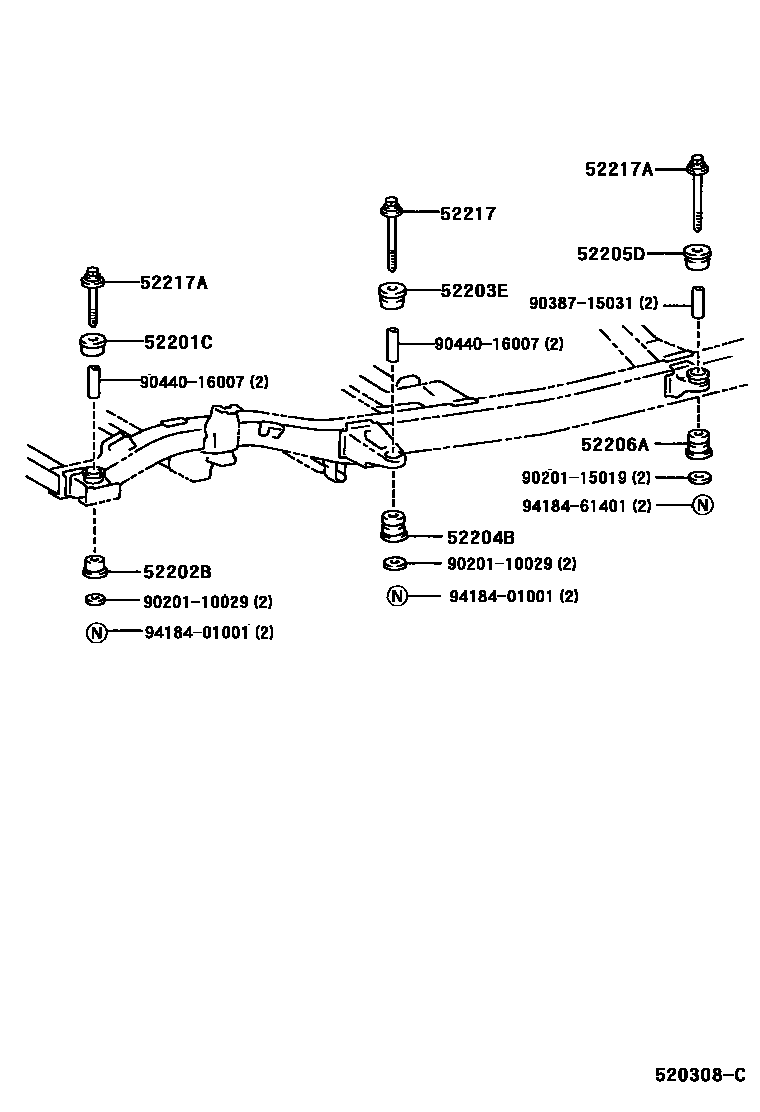

CAB MOUNTING & BODY MOUNTING

0001 1SINGLE CAB 0002 1DOUBLE CAB 0003 1EXTRA CAB

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-35120iKDN145,150,165,170,190199708-200508

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-35110iLN145,150,165,170,190,RZN168,173199708-200508

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-35230iLN145,150,165,170,RZN168,173..SCB,XTR199708-200508

main52203-35240iKDN145,165,190..DCB199708-200508

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-35140iKDN145,150,165,170..SCB,XTR199708-200508

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-35170iLN145,165,RZN168..SCB199708-200508

main52205-35180iKDN150199711-200508

main52205-35190iLN170,RZN173199711-200508

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-35050iLN145,165,RZN168..SCB199708-200508

52217BOLT, BODY MOUNTING

main52217-35070iKDN145,150,165,170,190199708-200108

52217ABOLT, BODY MOUNTING

main52217-35010iKDN145,150,165,170,190199708-200108

L=115

main52217-35060iKDN145,165,190..DCB200108

L=106

main52217-35060iLN145,165,190,RZN168..DCB199708-200108

main52217-35080iKDN145,150,165,170..SCB,XTR199708-200108

L=106

9020110029

main90201-10029

9020115019

main90201-15019

9038715031

main90387-15031

9044016007

main90440-16007

9418401001

main94184-01001

9418461401

main94184-61401

14 parts on this diagram · 3 diagrams in section
