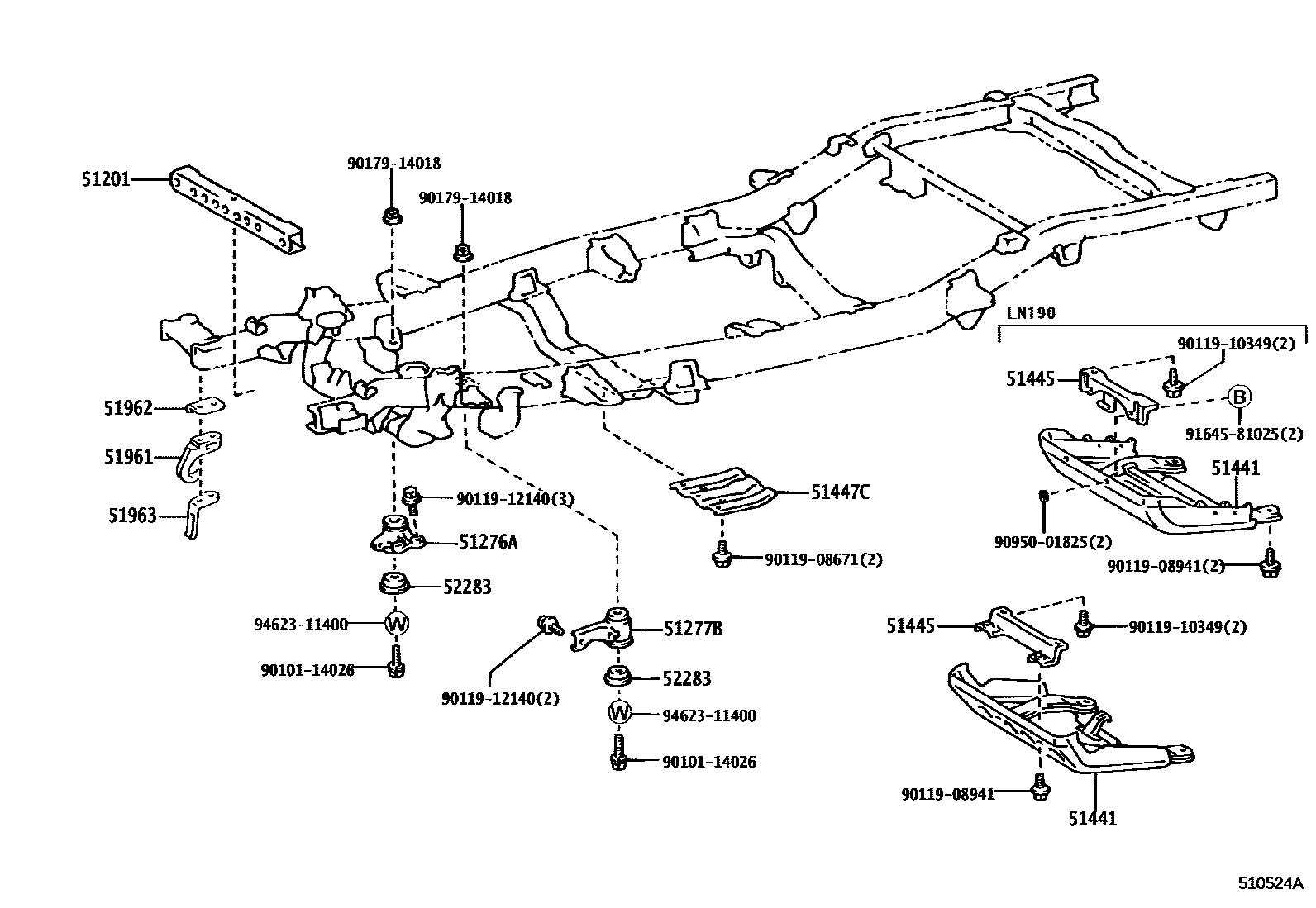

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-35290iKDN145,150199708-200108

main51201-35300iLN145..DCB..DLX..CBU199708-200108

ROUGH ROAD PACKAGE

main51201-35310iRZN168..DCB;LN165,170,190,RZN173199708-200108

main51201-35330iKDN165..LHD..DCB..DLX..CBU199708-200108

ROUGH ROAD PACKAGE

51276ABRACKET, DIFFERENTIAL SUPPORT

main51250-35011iLN165,170,RZN168,173199708-200108

51277BBRACKET ASSY, DIFFERENTIAL SUPPORT, LH

main51260-35021iLN165,170,RZN168,173199708-200108

51441COVER, ENGINE UNDER, NO.1

main51405-35062iLN165,170199708-200108

main51405-35120iLN190199908-200108

main51441-35150iRZN168,173..DCB,XTR199708-200108

main51441-35250iLN145..RHD..IV3199708-200101

sub51441-35251

main51441-35251iKDN145,150200101-200108

51445BRACKET, ENGINE UNDER COVER

main51445-35080iLN165,170199708-200108

main51445-35130iLN190199908-200108

51447CPROTECTOR, TRANSFER CASE

main51447-35031iRZN168..SCB199708-200108

main51447-35040iKDN165,170200108

51961HOOK, NO.1

main51961-35020iKDN165,170,190199708-200108

51962HOOK, NO.2

main51962-35020iRZN168..SCB199708-200108

51963STOPPER, HOOK WIRE

main51963-35080iRZN168..SCB199708-200108

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-35011iLN165,170,RZN168,173199708-200108

9010114026

main90101-14026

9011908671

main90119-08671

9011908941

main90119-08941

9011910349

main90119-10349

9011912140

main90119-12140

9017914018

main90179-14018

9095001825

main90950-01825

9164581025

main91645-81025

9462311400

main94623-11400

19 parts on this diagram · 2 diagrams in section
