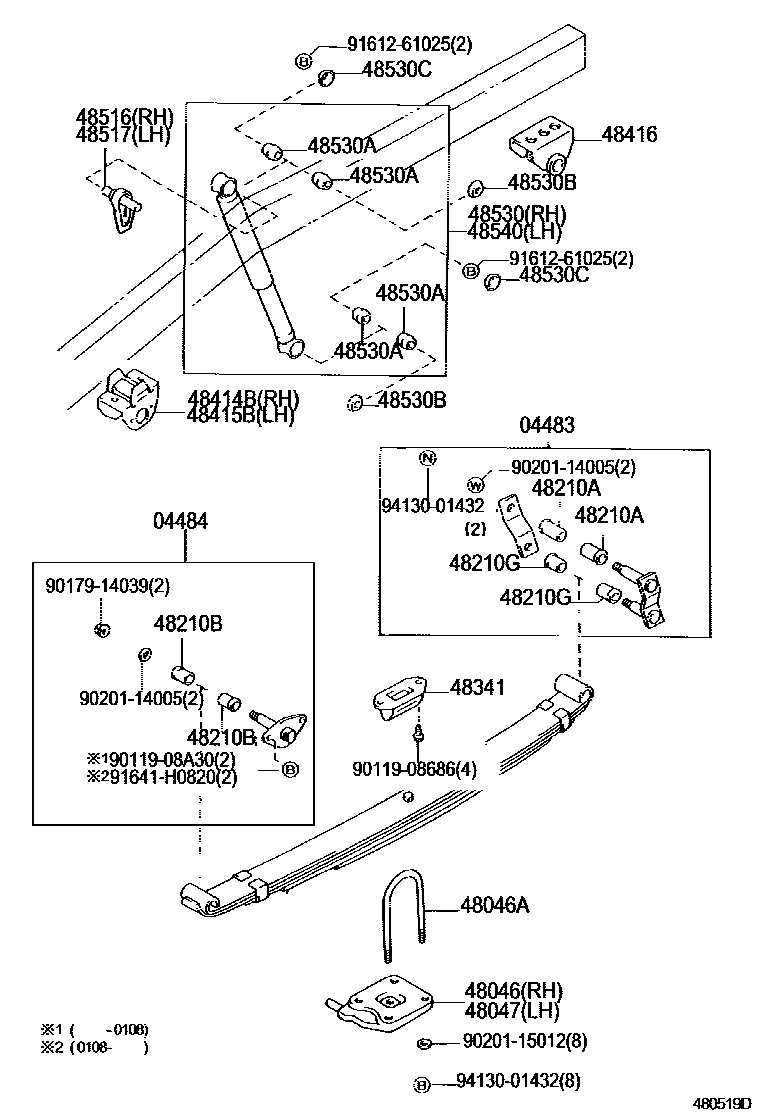

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 14-LEAF 0004 15-LEAF 0005 15-LEAF 0006 16-LEAF

04483SHACKLE KIT, REAR SPRING

main04483-35120iKDN165;KDN145,150,170,190..DCB,XTR199708-200508

main04483-35130iLN145..SCB199708-200508

04484PIN KIT, REAR SPRING

main04484-35070iKDN145..SCB199708-200508

main04484-35080iKDN145..DCB199708-200508

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35170iRZN168..DCB;LN165,170,190,RZN173199708-200508

main48046-35230iLN145,150..LHD;LN145..RHD..CBU199708-200508

48046ABOLT, U(FOR REAR SPRING)

main90117-14039iLN150199711-200108

L=139

main90117-14040iLN145..LHD;LN145..RHD..CBU199708-200108

L=155

main90117-14044iRZN168..SCB199708-200108

L=165

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-35170iRZN168..DCB;LN165,170,190,RZN173199708-200508

main48046-35230iKDN145,150199708-200508

48210SPRING ASSY, REAR RH

main48210-35880iRZN168..SCB199708-199912

6-LEAF

sub48210-35881

main48210-35881iLN165,RZN168199912-200108

6-LEAF

sub48210-35882

main48210-3D020iLN145..RHD..IV3199708-200508

5-LEAF

main48210-3D040iLN145..DCB199708-200108

5-LEAF

main48210-3D050iLN150199711-200508

4-LEAF

main48210-3D100iLN170,RZN173199711-199912

5-LEAF

sub48210-3D101

main48210-3D101iLN170,RZN173199912-200106

5-LEAF

sub48210-3D102

main48210-3D102iKDN170200106-200508

5-LEAF

main48210-3D160iLN190199908-199912

6-LEAF

sub48210-3D161

main48210-3D161iLN190199912-200108

6-LEAF

main48210-3D190iKDN145..DCB200108-200508

5-LEAF

main48210-3D200iKDN190200108-200508

6-LEAF

main48210-3D240iKDN165200108-200508

6-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18013iLN145..RHD..IV3199708-200108

main90385-18019iKDN165;KDN145,150,170,190..DCB,XTR199708-200108

48210BBUSH(FOR REAR SPRING PIN)

main90385-18020iKDN145..DCB199708-200108

main90385-18046iLN145..LHD..SCB;LN145..RHD..CBU199708-200108

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18020iRZN168..SCB199708-200108

main90385-18046iLN145..LHD..SCB;LN145..RHD..CBU199708-200108

48341BUMPER, REAR SPRING

main48341-35080iLN145..RHD..CBU;LN145,150..LHD..(SCB,XTR)199708-200108

main48341-35100iKDN145..DCB199708-200108

48414BBRACKET, SPRING, NO.3 RH

main48404-35050iLN145..RHD..IV3199708-200108

main48404-35060iLN150199711-200108

main48414-35120iRZN168..DCB;LN165,170,190,RZN173199708-200108

main48414-35130iKDN165..LHD..DCB..DLX..CBU199708-200108

ROUGH ROAD PACKAGE

48415BBRACKET, SPRING, NO.3 LH

main48407-35040iLN150199711-200108

main48407-35050iLN145..LHD;LN145..RHD..CBU199708-200108

main48415-35050iKDN165..RHD;KDN165,170,190..LHD..(DCB,XTR)199708-200108

main48415-35060iKDN165..LHD..SCB199708-200108

ROUGH ROAD PACKAGE

48416BRACKET, SPRING, NO.4

main48416-35070iRZN168..SCB199708-200108

main48416-35080iKDN165..LHD..SCB199708-200108

ROUGH ROAD PACKAGE

main48416-35120iKDN145,150199708-200108

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-35030iKDN145,150199708-200508

main48505-35070iKDN165,170,190199708-200508

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-35030iKDN145,150..SCB,XTR199708-200508

main48506-35010iRZN168..SCB199708-200508

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09150iLN145..RHD..IV3199907-200108

MARK 48531-04110

main48531-80637iKDN145,150..SCB,XTR199708-200508

MARK 48531-3D070

main48531-80638iKDN145..DCB199708-200508

MARK 48531-3D100

main48531-80644iLN165,170,RZN168,173199708-199809

MARK 48531-3D060

sub48531-80669

main48531-80669iRZN168..SCB199809-200508

MARK 48531-3D061

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iKDN145,150199708-200108

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iKDN145,150199708-200108

main90948-03011iRZN168..DCB;LN165,170,190,RZN173199708-200108

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03012iLN145..RHD..IV3199708-200108

main90948-03020iKDN165,170,190199708-200108

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09150iLN145..RHD..IV3199907-200108

MARK 48531-04110

main48531-80637iLN145..RHD..CBU;LN145,150..LHD..(SCB,XTR)199708-200508

MARK 48531-3D070

main48531-80638iLN145..DCB199708-200508

MARK 48531-3D100

main48541-39305iLN165,170,RZN168,173199708-199809

MARK 48541-35220

sub48541-39306

main48541-39306iRZN168..DCB;LN165,170,190,RZN173199809-200508

MARK 48541-35221

sub48541-39316

9011908686

main90119-08686

9011908A30

main90119-08A30

9017914039

main90179-14039

9020114005

main90201-14005

9020115012

main90201-15012

9161261025

main91612-61025

91641H0820

main91641-H0820

9413001432

main94130-01432

28 parts on this diagram · 6 diagrams in section
