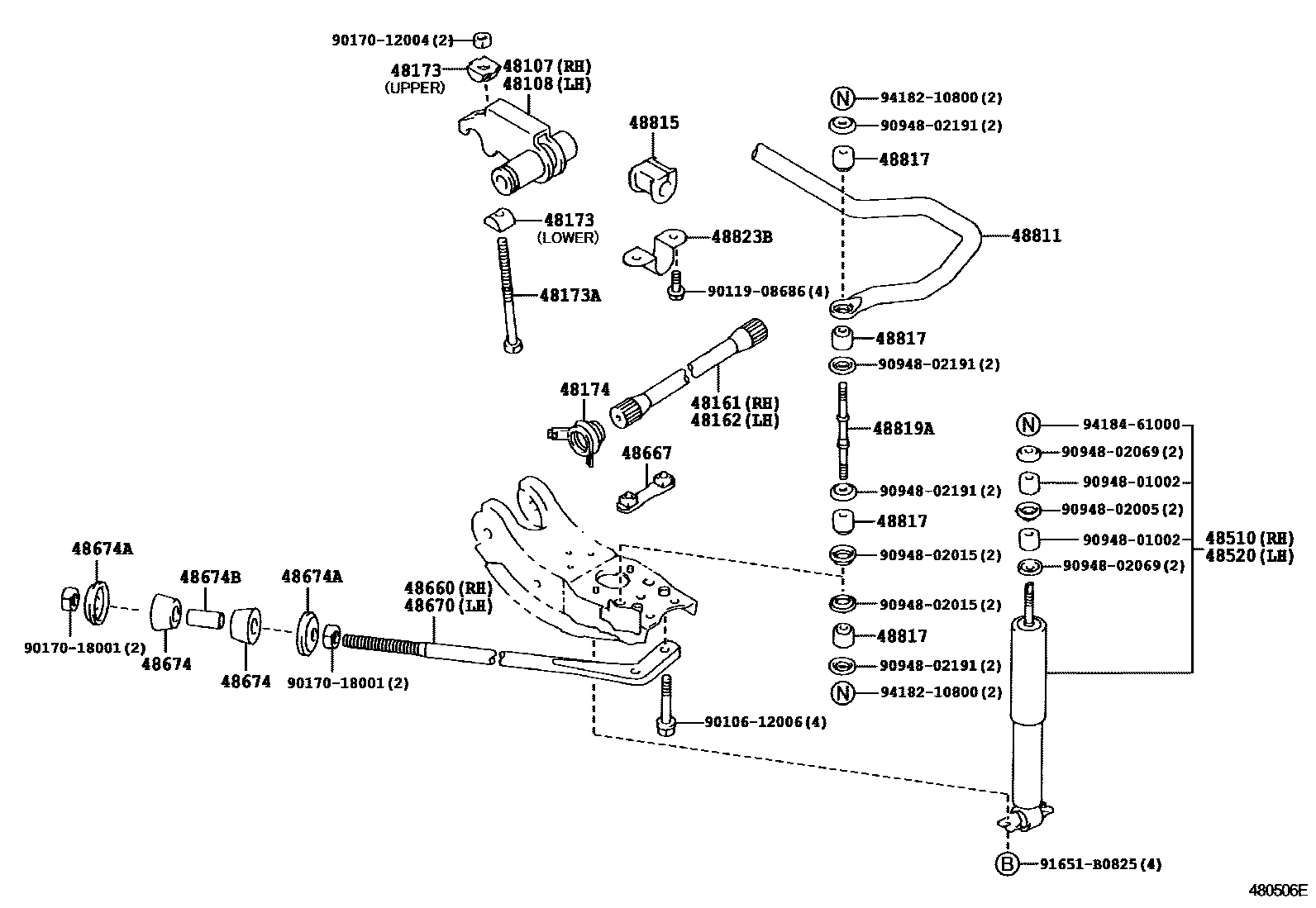

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-35050iRZN168..SCB199708-199908

main48107-35060iLN145..RHD..IV3199708-199908

48108ARM SUB-ASSY, ANCHOR, LH

main48108-35050iRZN168..SCB199708-199908

main48108-35060iLN145,150..LHD;LN145..RHD..CBU199708-200108

48161SPRING, TORSION BAR, RH

main48161-04080iLN150199907-200108

(L)

main48161-04090iLN165,170,190199907-200108

(L)

main48161-35110iRZN168..SCB199708-199908

main48161-35130iLN165,170,190199708-200108

main48161-35300iLN145..RHD..IV3199708-199908

main48161-35310iLN150199711-200108

main48161-35370iKDN150200208

48162SPRING, TORSION BAR, LH

main48162-04080iLN150199907-200108

(L)

main48162-04090iLN165,170,190199907-200108

(L)

main48162-35110iRZN168,173..DCB,XTR199708-200108

main48162-35130iKDN165,170,190200108

main48162-35300iKDN145200108

main48162-35310iKDN150200108-200208

main48162-35370iKDN150200208

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010×2iKDN145,150200108

UPPER

main48173-35030×2iKDN145,150200108

LOWER

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12104×2iLN145..RHD..IV3199708-199908

48174COVER, TORSION BAR DUST

main48174-35030×2iLN145..RHD..IV3199708-199908

main48174-35031×2iKDN145,150200406-200508

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-80027iLN145,150199708-199809

MARK 48511-35690

main48511-80042iLN165,170,RZN168,173199708-199812

MARK 48511-35461

main48511-80052iLN165..LHD..DCB..DLX..CBU199708-199812

MARK 48511-3D150,ROUGH ROAD PACKAGE

main48511-80063iKDN145,150200108-200508

MARK 48511-35691

sub48511-39697

main48511-80064iRZN168..DCB;LN165,170,190,RZN173199812-200108

MARK 48511-35462

main48511-80066iLN165..LHD..DCB..DLX..CBU199812-200108

MARK 48511-3D151,ROUGH ROAD PACKAGE

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-80027iLN145,150199708-199809

MARK 48511-35690

main48511-80042iLN165,170,RZN168,173199708-199812

MARK 48511-35461

main48511-80052iLN165..LHD..DCB..DLX..CBU199708-199812

MARK 48511-3D150,ROUGH ROAD PACKAGE

main48511-80063iLN145..RHD..IV3199809-199908

MARK 48511-35691

sub48511-39697

main48511-80064iRZN168..SCB199812-199908

MARK 48511-35462

main48511-80066×2iKDN165..LHD..SCB;KDN165..LHD..DCB..DLX..CBU200108-200508

MARK 48511-3D151

48660BAR ASSY, STRUT, RH

main48661-35030iKDN145,150200108

48667RETAINER, STRUT BAR

main48667-35030×2iKDN145,150200108

48670BAR ASSY, STRUT, LH

main48671-35030iKDN145,150200108

48674CUSHION, STRUT BAR

main48674-04010×4iLN145,150200103-200108

(L)

main48674-30040×4iKDN145,150200108

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030×4iLN145..RHD..IV3199708-199908

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002×2iLN145..RHD..IV3199708-199908

48811BAR, STABILIZER, FRONT

main48811-35330iKDN165,170,190200108

main48811-35430iLN145,150..LHD;LN145..RHD..CBU199708-200108

main48811-35440iKDN145,150200108

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160×2iRZN168..SCB;LN145..RHD..IV3199708-199908

48817CUSHION, FRONT STABILIZER

main48817-30010×8iLN145,150199708-200108

48819ABOLT, FRONT STABILIZER

main48819-35020×2iLN145,150199708-200108

48823BCOVER, FRONT STABILIZER BRACKET

main48823-35050×2iLN145,150199708-200108

9010612006

main90106-12006

9011908686

main90119-08686

9017012004

main90170-12004

9017018001

main90170-18001

9094801002

main90948-01002

9094802005

main90948-02005

9094802015

main90948-02015

9094802069

main90948-02069

9094802191

main90948-02191

91651B0825

main91651-B0825

9418210800

main94182-10800

9418461000

main94184-61000

32 parts on this diagram · 2 diagrams in section
