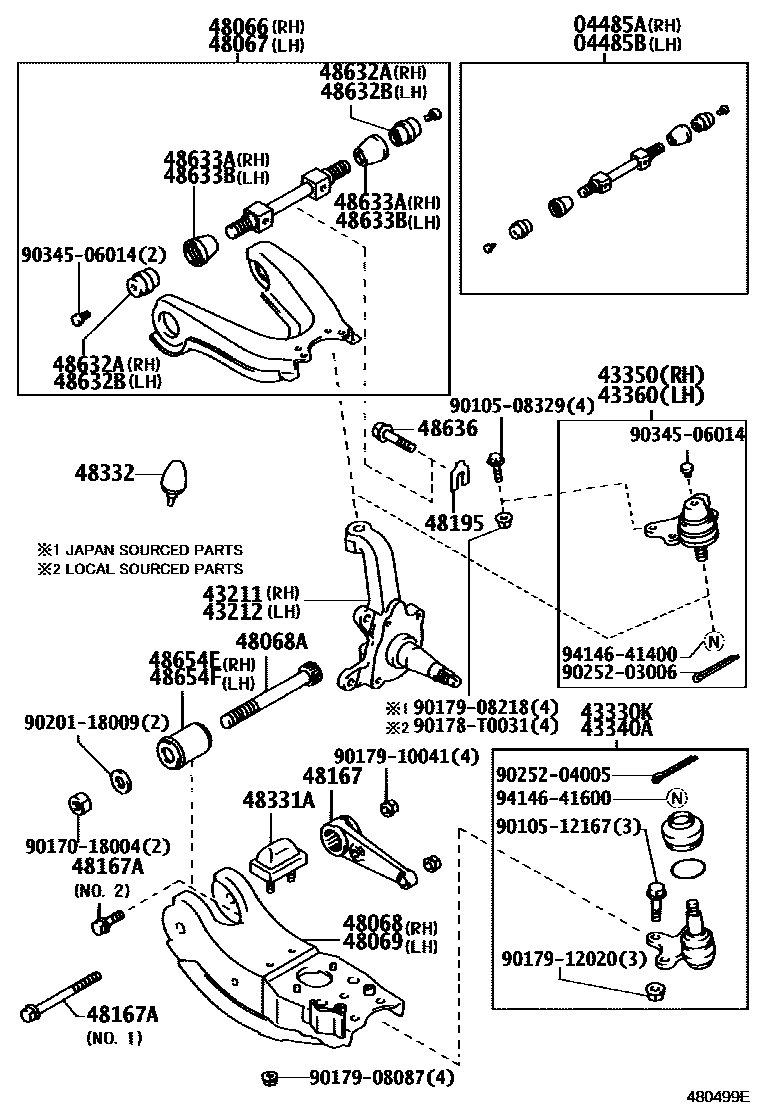

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-35020iKDN145199708-200508

main04485-35040iRZN168..SCB199708-200508

main04485-35050iKDN150199711-200508

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-35020iKDN145199708-200508

main04485-35040iRZN168..DCB;LN165,170,190,RZN173199708-200508

main04485-35050iLN150199711-200508

43211KNUCKLE, STEERING, RH

main43201-34010iRZN168..SCB199708-200107

sub43201-34011

sub90304-76005

main43201-34011iKDN165,170200107-200508

main43201-34020iRZN168..DCB;LN165,170,RZN173199708-200107

W(ABS)

sub43201-34021

sub90304-76005

main43201-34021iKDN165,170200107-200508

W(ABS)

main43201-35030iLN190199908-200108

main43201-35060iKDN190200108-200508

main43201-35060iLN190199908-200108

W(ABS)

main43211-35200iLN145..RHD..IV3199708-200508

main43211-35210iLN145,150..LHD;LN145..RHD..CBU199708-200508

W(ABS)

43212KNUCKLE, STEERING, LH

main43202-34010iRZN168..SCB199708-200107

sub43202-34011

sub90304-76005

main43202-34011iLN165,170,RZN168,173200107-200508

main43202-34020iRZN168..SCB199708-200107

W(ABS)

sub43202-34021

sub90304-76005

main43202-34021iKDN165,170200107-200508

W(ABS)

main43202-35020iLN190199908-200108

main43202-35050iLN190199908-200108

W(ABS)

main43202-35050iKDN190200108-200508

main43212-35160iLN145,150..LHD;LN145..RHD..CBU199708-200508

main43212-35170iLN145..RHD..IV3199708-200508

W(ABS)

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39315iRZN168..DCB;LN165,170,190,RZN173199708-200508

sub43330-39835

main43330-39445iLN145..RHD..IV3199708-200508

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39445iLN145..RHD..IV3199708-200508

main43340-39245iRZN168..DCB;LN165,170,190,RZN173199708-200508

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39085iRZN168..SCB199708-200508

main43350-39125iLN145..RHD..IV3199708-200508

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39125iLN145..RHD..IV3199708-200508

main43360-39085iRZN168..DCB;LN165,170,190,RZN173199708-200508

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-34030iLN150199711-200508

W(ABS)

main48066-35050iKDN145199708-200508

sub48066-35130

main48066-35080iLN150199711-200508

sub48066-34030

main48066-35100iRZN168..DCB;LN165,170,190,RZN173199708-200508

main48066-35130iLN145..RHD..IV3199708-200508

W(ABS)

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48066-34030iKDN150199711-200508

W(ABS)

main48066-35050iLN145..LHD;LN145..RHD..CBU199708-200508

sub48066-35130

main48066-35080iLN150199711-200508

sub48066-34030

main48066-35130iLN145..RHD..IV3199708-200508

W(ABS)

main48067-35040iRZN168..DCB;LN165,170,190,RZN173199708-200508

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35090iKDN165,170,190199708-200508

main48605-35180iLN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

sub48605-35181

main48605-35181iLN145,150..LHD;LN145..RHD..CBU199708-200508

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90114-18003iLN145,150..LHD;LN145..RHD..CBU199708-200108

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35090iRZN168..SCB199708-200508

main48606-35180iLN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

sub48606-35181

main48606-35181iLN145..RHD..IV3199708-200508

48167ARM, TORQUE

main48167-04020iLN145,150200103-200108

(L)

main48167-35040iLN145,150..LHD;LN145..RHD..CBU199708-200108

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-10087iLN145..RHD..IV3199708-200108

NO.1

main91512-81025iKDN145,150199708-200108

NO.2

48195SHIM, CAMBER ADJUST

main90565-12004iLN145,150..LHD;LN145..RHD..CBU199708-200108

T=4.0

main90565-12008iKDN145,150199708-200108

T=1.6

main90565-12009iLN145..RHD..IV3199708-200108

T=1.2

48331ABUMPER, FRONT SPRING, NO.1

main48304-04050iLN145..RHD..IV3199808-200108

(L)

main48304-35160iLN145,150..LHD;LN145..RHD..CBU199708-200108

48332BUMPER, FRONT SPRING, NO.2

main48332-04040iLN145..RHD..IV3199808-200108

(L)

main48332-35020iLN145..RHD..IV3199708-200108

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-26010iRZN168..SCB199708-200508

FRONT

main48632-30012iKDN145199708-200508

main48632-35020iKDN150199711-200508

main48635-26010iRZN168..SCB199708-200508

REAR

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-26010iRZN168..SCB199708-200508

FRONT

main48632-30012iKDN145199708-200508

main48632-35020iLN150199711-200508

main48635-26010iRZN168..DCB;LN165,170,190,RZN173199708-200508

REAR

48633ASEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH

main48633-35010iLN145..RHD..IV3199708-200508

48633BSEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH

main48633-35010iLN145..RHD..IV3199708-200508

48636BOLT, UPPER ARM SET

main90105-12080iKDN145,150199708-200108

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-35011iRZN168..SCB199708-200508

main48654-35100iLN145..RHD..IV3199708-200508

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-35011iRZN168..SCB199708-200508

main48654-35100iLN145,150..LHD;LN145..RHD..CBU199708-200508

9010508329

main90105-08329

9010512167

main90105-12167

9017018004

main90170-18004

90178T0031

main90178-T0031

9017908087

main90179-08087

9017908218

main90179-08218

9017910041

main90179-10041

9017912020

main90179-12020

9020118009

main90201-18009

9025203006

main90252-03006

9025204005

main90252-04005

9034506014

main90345-06014

9414641400

main94146-41400

9414641600

main94146-41600

39 parts on this diagram · 3 diagrams in section
