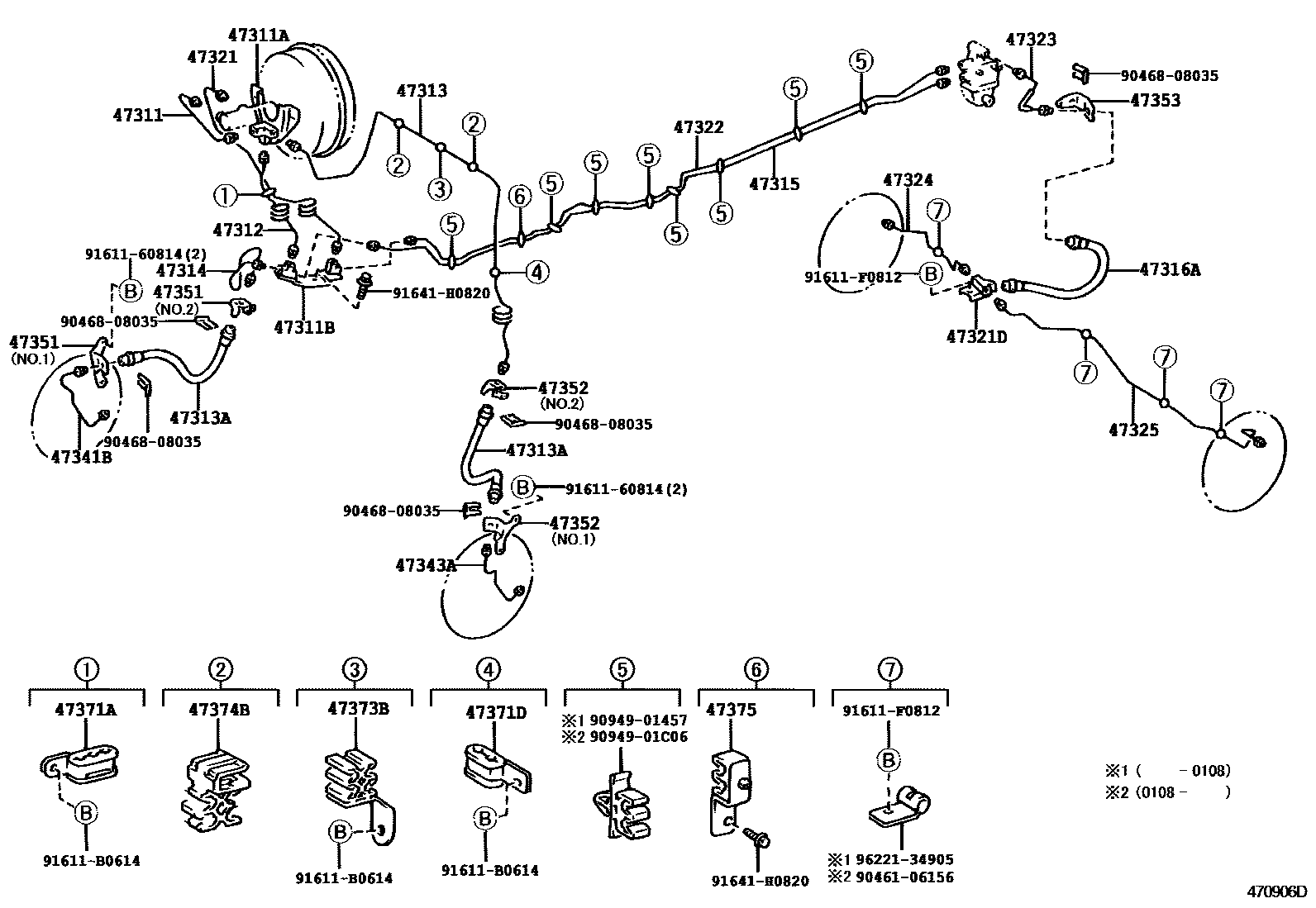

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1W(ABS) 0006 1W(ABS) 0007 1W(ABS) 0008 1W(ABS) 0009 1W(ABS) 0010 1W(ABS) 0011 1

47311TUBE, FRONT BRAKE, NO.1

main47311-35450iLN145,165..RHD199708-200508

main47311-35470iKDN190199708-200508

W(ABS)

main47311-35480iKDN145,150,165,170..LHD199708-200508

main47311-60490iLN145,165..RHD199708-200508

W(ABS)

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-13021iKDN145,150,165,170,190..LHD199708-200508

main90904-13041iLN145..RHD199708-200508

W(ABS)

main90904-13042iLN165..RHD199708-200108

main90904-13043iKDN145,150,165..RHD199708-200508

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90904-12053iKDN145,150199708-200108

W(ABS)

main90904-12055iKDN165,170,190199708-200108

W(ABS)

main90904-13037iLN145,150199708-200108

main90904-13038iKDN165,170199708-200108

47312TUBE, FRONT BRAKE, NO.2

main47312-3D330iKDN165,170,190..LHD199708-200108

main47312-3D350iLN165..RHD199708-200108

main47312-3D380iLN145..RHD199708-200108

main47312-3D400iKDN145,150..LHD199708-200108

47313TUBE, FRONT BRAKE, NO.3

main47313-3D070iKDN165,170..LHD199708-200108

main47313-3D081iLN145..RHD199708-200108

main47313-3D090iLN145,150..LHD199708-200108

main47313-3D100iLN165..RHD199708-200108

main47313-3D130iKDN145,150..RHD200108

main47313-3D140iKDN165..RHD200108

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02952iKDN145,150199708-200108

main90947-02957iLN165,170,190,RZN168,173199708-200108

47314TUBE, FRONT BRAKE, NO.4

main47314-35280iKDN165,170199708-200108

main47314-35300iLN145,150199708-200108

47315TUBE, FRONT BRAKE, NO.5

main47315-35330iLN165,190,RZN168199708-200108

main47315-35340iLN170,RZN173199711-200108

main47315-35360iLN145199708-200108

main47315-35370iLN150199711-200108

main47315-35400iKDN145200108

main47315-35410iKDN150200108

main47315-35420iKDN165,190200108

main47315-35430iKDN170200108

47316TUBE, FRONT BRAKE, NO.6

main47316-35230iLN145,165..RHD199708-200108

main47316-35240iRZN168,173199708-200108

main47316-35260iLN145,150,165,170,190..LHD199708-200108

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02955iLN145,150199708-200108

main90947-02958iKDN165,170,190199708-200108

47321TUBE, REAR BRAKE, NO.1

main47321-35780iLN165..RHD199708-200108

main47321-35790iLN165,170,190,RZN168,173..LHD199708-200108

main47321-35800iKDN145,150..RHD199708-200108

main47321-35810iLN145,150..LHD199708-200108

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10198iLN145,150199708-200108

main90904-13036iKDN165,170199708-200108

main90904-13516iKDN190199908-200108

47322TUBE, REAR BRAKE, NO.2

main47322-35750iLN165,190,RZN168199708-200108

main47322-35770iLN170,RZN173199711-200108

main47322-35820iLN145199708-200108

main47322-35840iLN150199711-200108

main47322-35880iKDN145200108

main47322-3D010iKDN150200108

main47322-3D030iKDN165,190200108

main47322-3D050iKDN170200108

47323TUBE, REAR BRAKE, NO.3

main47323-35190iLN165,170,190,RZN168,173199708-200108

main47323-35210iLN145,150199708-200508

main47323-35240iKDN165,170,190200108-200508

47324TUBE, REAR BRAKE, NO.4

main47324-35250iLN165,170,190,RZN168,173199708-200108

main47324-35260iLN145,150199708-199908

main47324-35270iLN145,150199908-200108

main47324-35290iKDN145,150200108

main47324-35300iKDN165,170,190200108

47325TUBE, REAR BRAKE, NO.5

main47325-35290iLN165,170,190,RZN168,173199708-200108

main47325-35300iLN145,150199708-199908

main47325-35320iLN145,150199908-200108

main47325-35360iKDN145,150200108

main47325-35380iKDN165,170,190200108

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-35150iKDN145,150199708-200508

main47341-35170iLN165,170,190,RZN168,173199708-200508

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-35150iLN145,150199708-200508

main47343-35170iKDN165,170,190199708-200508

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35280iKDN145,150199708-200508

NO.1

main47351-35290iKDN145,150199708-200508

NO.2

main47351-35300iLN165,170,190,RZN168,173199708-200508

main47351-35310iKDN190199708-200508

W(ABS)

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35320iKDN145,150199708-200508

NO.1

main47352-35350iKDN165,170199708-200508

main47352-35360iKDN190199708-200508

W(ABS)

main47352-35380iLN145,150199708-200508

NO.2

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47352-35340iKDN145,150199708-200508

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35230iKDN145,150,165,170,190199708-200108

47371DCLAMP, BRAKE TUBE, NO.8

main47372-35080iKDN145,150,165..RHD199708-200108

47373BCLAMP, BRAKE TUBE, NO.3

main47373-35060iLN145,150,165,170,190,RZN168,173199708-200108

47374BCLAMP, BRAKE TUBE, NO.4

main47372-35150iLN145,150,165,170,190,RZN168,173199708-200108

47375CLAMP, BRAKE TUBE, NO.5

main47372-35030iLN165,170,190,RZN168,173199708-200108

main47372-35180iKDN165,170,190200108

9046106156

main90461-06156

9046808035

main90468-08035

9094901457

main90949-01457

9094901C06

main90949-01C06

9161160814

main91611-60814

91611B0614

main91611-B0614

91611F0812

main91611-F0812

91641H0820

main91641-H0820

9622134905

main96221-34905
