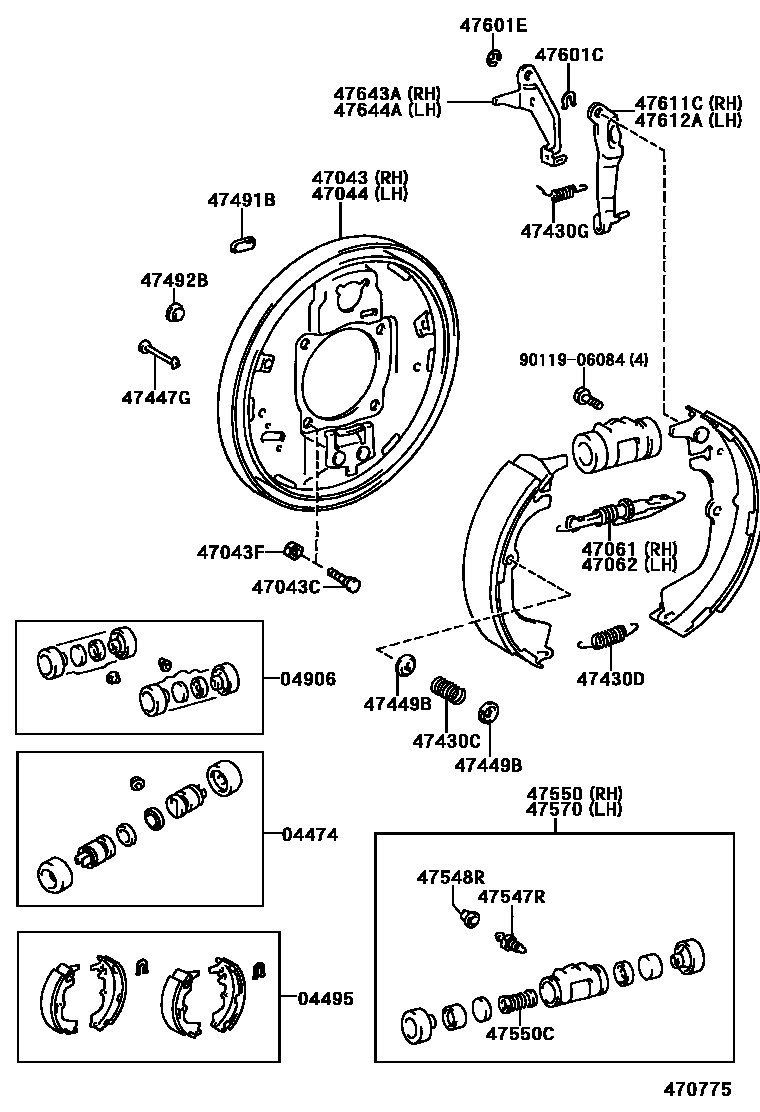

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-26040iKDN145,150¥2,460199708-200508

main04474-35080iRZN168..SCB¥2,460199708-200508

04495SHOE KIT, REAR BRAKE

main04495-35170iLN145,150¥10,700199908-200508

MARK AK LA509

main04495-35230iRZN168..SCB¥14,600199708-200508

MARK NBK LN508

main04495-35240iLN145,150¥13,500199708-199908

MARK AK LA509

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26060iKDN145,150¥1,010199708-200508

main04906-35100iRZN168..SCB¥960199708-200508

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26120iLN145,150¥4,240199708-199908

main47043-35061iLN145,150¥6,300199908-200508

main47043-35170iLN165,170,190,RZN168,173¥6,700199708-200508

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002iKDN145,150¥120199708-200108

*10-1.25PX37-18.5

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10067iRZN168..SCB;LN145..RHD..IV3¥90199708-200108

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26120iLN145,150¥4,240199708-199908

main47044-35051iKDN145,150¥6,300199908-200508

main47044-35160iKDN165,170,190¥6,700199708-200508

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-35020iLN145,150¥2,760199708-200508

main47061-60011iKDN165,170,190¥1,960199708-200508

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-35020iLN145,150¥2,760199708-200508

main47062-60011iKDN165,170,190¥1,960199708-200508

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iLN145,150,165,170,RZN168,173¥120199708-200108

main90501-20604iKDN165,170,190¥140200108-200508

main90501-20756iKDN145,150¥110199908-200508

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iKDN165,170,190¥370199708-200508

main90506-20005iKDN145,150¥260199908-200508

main90506-20070iLN145,150¥170199708-199908

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12015iLN145,150¥260199908-200508

main90506-12031iKDN165,170,190¥180199708-200508

main90507-12036iLN145,150¥80199708-199908

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iLN145,150¥160199708-199908

main47447-30020iLN165,170,RZN168,173¥130199708-200508

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iLN145,150,165,170,190,RZN168,173¥120199708-200508

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-20011iLN145,150,165,170,190,RZN168,173¥140199708-200508

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iKDN145,150,165,170,190¥130199708-200508

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iKDN145,150¥230199708-200508

main47547-60020iKDN165,170,190¥230199708-200508

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iKDN145,150¥160199708-200508

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26130iLN145,150¥6,400199708-200508

main47550-35190iLN165,170,190,RZN168,173¥5,800199708-200508

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60009iKDN145,150¥90199708-200508

main90029-60011iKDN165,170,190¥90199708-200508

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26130iKDN145,150¥6,400199708-200508

main47550-35190iKDN165,170,190¥5,800199708-200508

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-35040iLN165,170,190,RZN168,173¥910199708-200508

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iLN145,150,165,170,190,RZN168,173¥110199708-200508

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500iLN145,150,165,170,190,RZN168,173¥100199708-200508

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-26050iLN145,150¥1,070199708-199908

main47611-35020iLN145,150¥1,020199908-200108

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-26050iLN145,150¥910199708-199908

main47612-35020iLN145,150¥1,020199908-200108

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-26010iLN145,150¥370199708-199908

sub47643-26020¥240

main47643-35020iLN145,150¥440199908-200508

main47643-60010iLN165,170,190,RZN168,173¥310199708-200508

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-26010iLN145,150¥370199708-199908

sub47644-26020¥240

main47644-35020iLN145,150¥440199908-200508

main47644-60010iLN165,170,190,RZN168,173¥310199708-200508

9011906084

main90119-06084¥100
