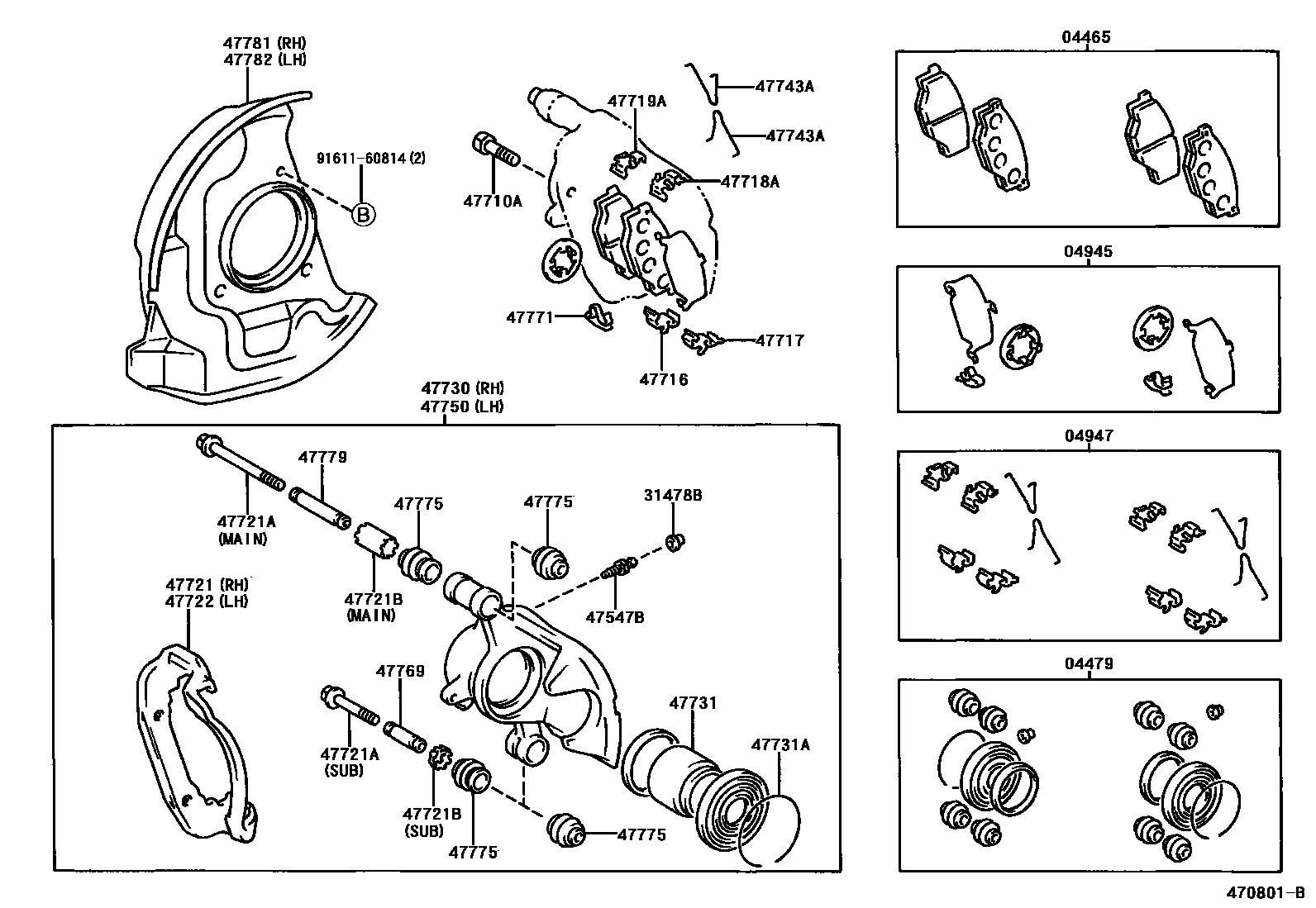

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-35220iLN145..RHD..IV3199708-200301

MARK SUMITOMO PS545

sub04465-35270

main04465-35260iRZN168..DCB;LN165,170,190,RZN173199708-200508

MARK SUMITOMO PS534

main04465-35270iKDN145,150200301-200508

MARK SUMITOMO PS545

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-35010iKDN165,170,190199708-200508

main04479-35050iLN145,150..LHD;LN145..RHD..CBU199708-200508

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-35040iKDN165,170,190199708-200508

main04945-35072iKDN145,150199708-200508

04947FITTING KIT, DISC BRAKE, FRONT

main04947-26030iLN145,150199708-200508

main04947-60050iLN165,170,190,RZN168,173199708-200508

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLN145,150,165,170,190,RZN168,173199708-200508

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iLN145,150199708-200508

main47547-20030iLN165,170,190,RZN168,173199708-200508

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144iKDN165,170,190199708-200508

*12-1.25PX38-23

main90119-12058iKDN145,150199708-200508

*12-1.25PX31-20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040iLN145,150199708-200108

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-26040iLN145,150199708-200108

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-26010iLN145,150199708-200108

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-26010iKDN145,150199708-200108

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26050iLN145,150..LHD;LN145..RHD..CBU199708-200108

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iLN145,150199708-200108

*10-1.25PX65.5-30

main90119-10249iLN145,150199708-200108

*10-1.25PX95.5-30

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004iKDN145,150199708-200108

SUB

main90387-16005iKDN145,150199708-200108

MAIN

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iLN145,150..LHD;LN145..RHD..CBU199708-200108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35130iLN145,150199708-200508

main47730-35140iLN165,170,190,RZN168,173199708-200508

47731PISTON, FRONT DISC BRAKE

main47731-35050iKDN165,170,190199708-200508

main47731-40010iLN145,150199708-200508

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iLN145,150199708-200508

main90522-48044iLN165,170,190,RZN168,173199708-200508

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-40020iLN145,150199708-200108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35130iLN145,150199708-200508

main47750-35140iLN165,170,190,RZN168,173199708-200508

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-35020iLN145,150199708-200108

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-35010iLN145,150199708-200108

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010iLN145,150199708-200108

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iLN145,150199708-200108

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-35062iLN165,170,190,RZN168,173199708-200508

main47703-35110iKDN145,150199708-200508

W(ABS)

main47781-35140iLN145,150199708-200508

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-35062iLN165,170,190,RZN168,173199708-200508

main47704-35110iLN145,150199708-200508

W(ABS)

main47782-35140iLN145,150199708-200508

9161160814

main91611-60814

27 parts on this diagram · 2 diagrams in section
