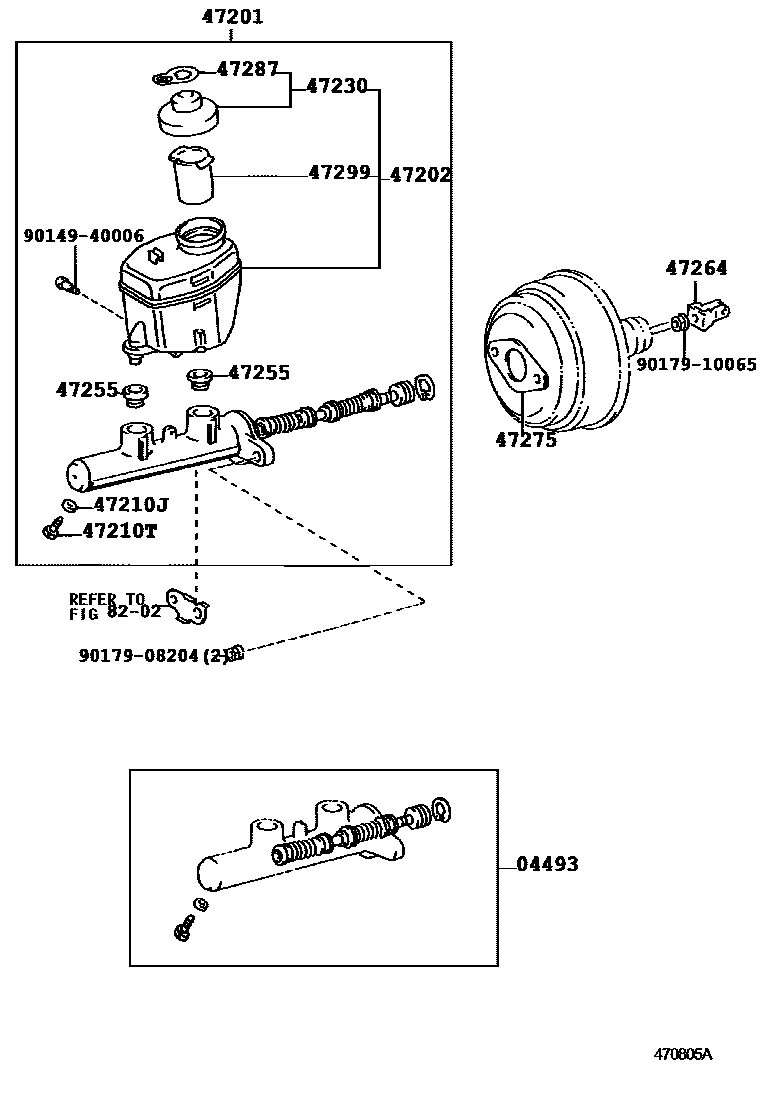

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-3D010iLN145..RHD..IV3199708-200508

W(ABS)

main04493-60280iLN145..RHD..IV3199708-200508

main04493-60290iRZN168..SCB199708-200508

W(ABS)

main04493-60300iRZN168..DCB;LN165,170,190,RZN173199708-200508

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-3D420iLN145..RHD199708-200508

main47201-3D430iKDN145,150..RHD199708-200508

W(ABS)

main47201-3D460iLN145,150..LHD199708-200508

main47201-3D470iLN145,150..LHD199708-200508

W(ABS)

main47201-60640iLN165..RHD199708-200508

main47201-60650iKDN165,170..LHD199708-200508

W(ABS)

main47201-60660iLN165,170,190,RZN168,173..LHD199708-200508

main47201-60670iKDN165..RHD199708-200508

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-60080iKDN145,150,165..RHD199708-200508

main47220-60090iKDN145,150,165,170,190..LHD199708-200508

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLN145,150,165,170,190,RZN168,173199708-200508

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iLN145,150,165,170,190,RZN168,173199708-200508

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iKDN145,150,165,170,190199708-200508

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iLN145,150,165,170,190,RZN168,173199708-200508

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-28010iLN145,150,165,170,190,RZN168,173199708-200508

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iLN145,150,165,170,190,RZN168,173199708-200508

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iLN145,150,165,170,190,RZN168,173199708-200108

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iLN145,150,165,170,190,RZN168,173199708-200508

8202

9014940006

main90149-40006

9017908204

main90179-08204

9017910065

main90179-10065

15 parts on this diagram · 2 diagrams in section
