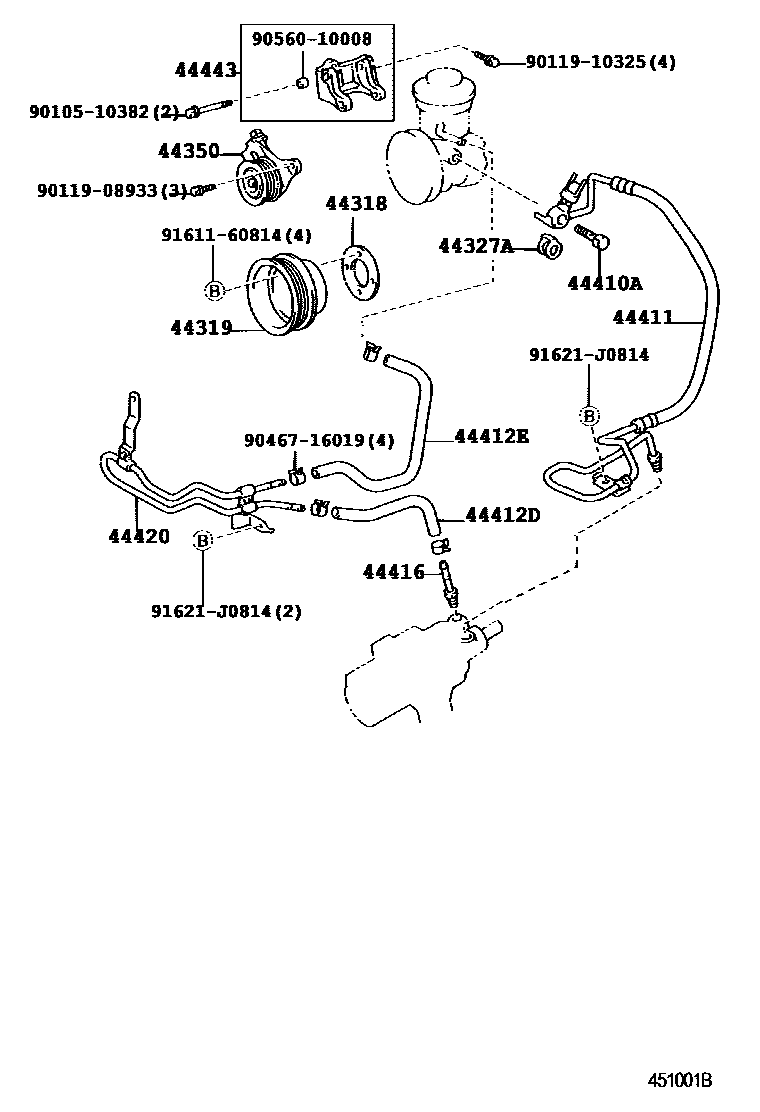

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLN145..RHD..IV3199708-200108

main44318-26020iRZN168..SCB199708-200108

main44318-35010iLN145..LHD..SCB..IV3199708-200108

44319PULLEY, VANE PUMP DRIVE

main44319-22010iLN145..RHD..IV3199708-200108

main44319-34010iRZN168,173..DCB,XTR199708-200108

main44319-35030iLN145,150,165,170,190..LHD199708-200108

44327AGASKET, PRESSURE PORT, NO.1

main44327-26020iRZN168..SCB199708-200108

44350PULLEY ASSY, POWER STEERING IDLE

main44350-34010iRZN168..SCB199708-200108

main44350-60020iLN145,150,165,170,190..LHD199708-200108

sub44350-60021

44410TUBE ASSY, PRESSURE FEED

main44410-35450iLN145..RHD199708-200108

main44410-35460iLN145,150..LHD199708-200108

main44410-35500iLN165..RHD199708-200108

main44410-35510iLN165,170..LHD199708-199908

main44410-35511iLN165,170,190..LHD199908-200108

main44410-35610iKDN145,150..RHD200108

main44410-35620iKDN145,150..LHD200108

main44410-35640iKDN165,170,190..LHD200108

main44410-35650iKDN165..RHD200108

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iRZN168..SCB199708-200108

44411HOSE, PRESSURE FEED

main44411-35480iLN145..RHD199708-199908

main44411-35481iLN145..RHD199908-200108

main44411-35490iLN145,150..LHD199708-200108

main44411-35520iLN165..RHD199708-199908

main44411-35521iLN165..RHD199908-200108

main44411-35530iLN165,170,190..LHD199708-200108

main44411-35540iRZN168,173199708-199908

main44411-35541iRZN168,173199908-200108

main44411-35630iKDN165..LHD;KDN145,150,170,190200108

main44411-35650iKDN165..RHD200108

44412DHOSE, RETURN, NO.1

main44412-35100iLN165,170,190..LHD199708-200108

main44412-35110iKDN165..RHD199708-200108

main44412-35300iRZN168..SCB199708-200108

main90445-18147iKDN145,150..RHD199708-200108

main90445-18156iLN145,150..LHD199708-200108

44412EHOSE, RETURN, NO.2

main44412-35180iRZN168..SCB199708-200108

main44412-35190iLN145..RHD..IV3199708-200108

main44412-35200iLN145,150,165,170,190..LHD199708-200108

main44412-35350iKDN145,150..RHD200108

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-35020iRZN168..SCB199708-200108

main44416-35070iKDN145,150..LHD200108

main44416-35100iKDN165..RHD199708-200108

main44416-35150iLN145,150..LHD199708-200108

main44416-35160iLN145..RHD..CBU199708-200108

44420COOLER ASSY, OIL

main44420-35170iRZN168..SCB199708-200108

main44420-35220iKDN145,150,165,170,190..LHD200108

44443BRACKET, PUMP

main44443-26041iLN145..RHD..IV3199708-200108

main44443-34010iRZN168,173..DCB,XTR199708-200108

main44443-35050iLN145,150,165,170..LHD199708-199803

sub44443-35051

main44443-35051iLN145,150,165,170..LHD199803-199908

W(TACHOMETER)

sub44443-35070

main44443-35070iLN145,150,165,170,190..LHD199908-200108

9010510382

main90105-10382

9011908933

main90119-08933

9011910325

main90119-10325

9046716019

main90467-16019

9056010008

main90560-10008

9161160814

main91611-60814

91621J0814

main91621-J0814

19 parts on this diagram · 7 diagrams in section
