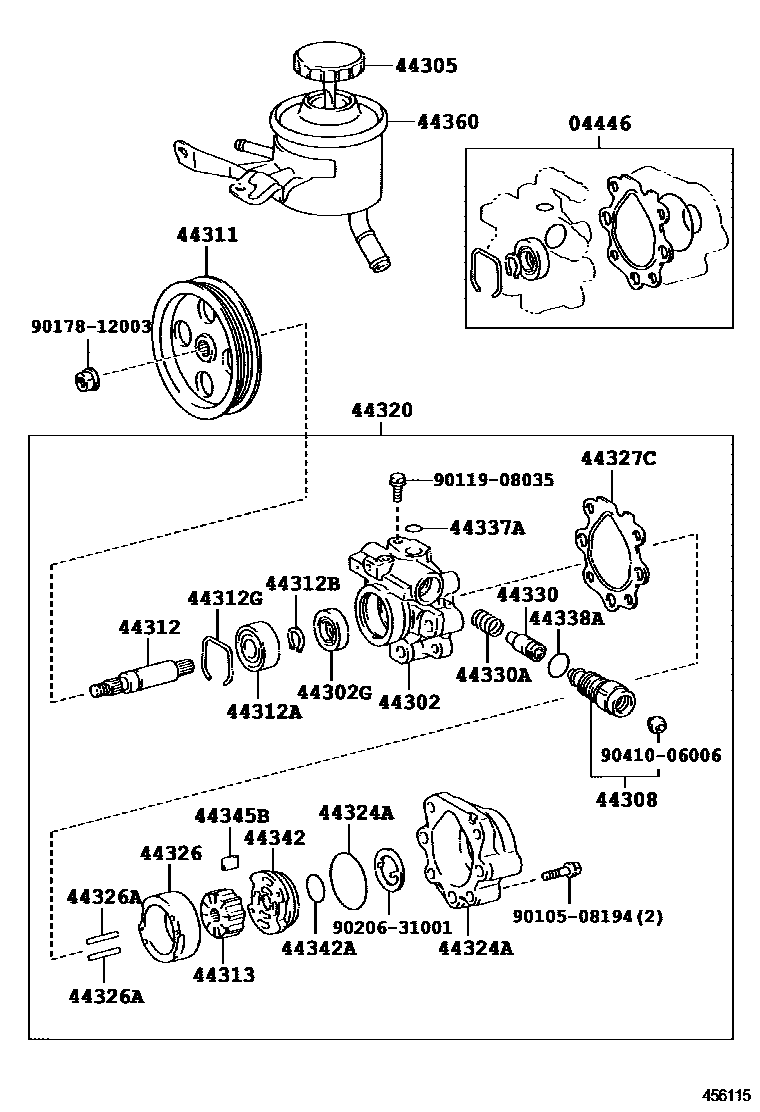

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-30120iRZN168..SCB;LN145..RHD..IV3¥2,530199708-200108

main04446-34010iLN145,150,165,170,190..LHD¥2,320199708-200108

sub04446-53030¥1,360

main04446-60091iKDN145,150,165,170,190¥2,280200108-200508

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-26012iLN145,165..RHD¥19,900199708-199908

main44302-26030iLN145,165..RHD¥19,900199908-200108

main44302-34010iRZN168,173..DCB,XTR¥19,900199708-200108

main44302-35040iLN145,150,165,170,190..LHD¥19,900199708-200108

main44302-60060iKDN145,150,165,170,190¥24,300200108

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17007iRZN168..SCB;LN145,165..RHD¥190199708-200108

main90311-18015iLN145,165..RHD¥210199708-200108

main90316-17004iKDN145,150,165,170,190¥500200108

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iRZN168,173..DCB,XTR¥1,940199708-200108

sub44305-22060¥1,940

main44305-35020iKDN145,150,165,170,190¥1,490199708-200108

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26041iRZN168..SCB¥1,690199708-200108

main44308-26080iKDN145,150,165,170,190¥1,430200108

44311PULLEY, VANE PUMP

main44311-26040iLN145,165..RHD¥7,100199708-199908

main44311-26060iLN145,165..RHD¥2,980199908-200108

main44311-34020iRZN168,173..DCB,XTR¥7,100199708-200108

main44311-35050iLN145,150,165,170,190..LHD¥7,100199708-200108

44312SHAFT, VANE PUMP

main44312-26010iRZN168..SCB;LN145,165..RHD¥1,720199708-200108

main44312-32020iLN145,150,165,170,190..LHD¥1,300199708-200108

main44312-60020iKDN145,150,165,170,190¥770200108

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17013iRZN168..SCB;LN145,165..RHD¥1,240199708-200108

main90363-17016iKDN145,150,165,170,190¥1,240200108

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iLN145,150,165,170..LHD¥140199708-200108

main90520-10003iLN190;LN145,165..RHD¥140199908-200108

W(POWER STEERING)

main90520-15005iRZN168..SCB¥80199708-200108

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90521-44002iRZN168..SCB;LN145,165..RHD¥580199708-200108

44313ROTOR, VANE PUMP

main44313-26060iRZN168..SCB¥7,700199708-200108

NO MARK

main44313-26070iKDN145,150,165,170,190¥7,700199708-200108

MARK 1

main44313-26080iRZN168..SCB¥7,700199708-200108

MARK 2

main44313-26090iRZN168..SCB¥7,700199708-200108

MARK 3

main44313-26100iKDN145,150,165,170,190¥7,700199708-200108

MARK 4

44320PUMP ASSY, VANE

main44310-35610iKDN145,150,165,170,190¥81,700200108

main44320-35520iLN145,165..RHD¥81,600199708-199908

main44320-35521iLN145,165..RHD¥81,700199908-200108

main44320-35530iLN145,150,165,170,190..LHD¥81,700199708-200108

main44320-35560iRZN168..SCB¥93,800199708-200108

44324AHOUSING, PUMP, REAR

main44324-28030iLN145,165..RHD¥2,510199908-200108

main44324-34010iRZN168..SCB¥4,090199708-200108

main44324-60040iKDN145,150,165,170,190¥4,370200108

44326RING, CAM(FOR VANE PUMP)

main44325-12270iKDN145,150,165,170,190¥4,350200108-200111

NO MARK

main44325-12280iKDN145,150,165,170,190¥4,350200108-200111

MARK 1

main44325-12290iKDN145,150,165,170,190¥4,350200108-200111

MARK 2

main44325-12300iKDN145,150,165,170,190¥4,350200108-200111

MARK 3

main44325-12310iKDN145,150,165,170,190¥4,350200108-200111

MARK 4

main44325-32270iLN145,165..RHD¥6,700199708-200108

NO MARK

main44325-32280iLN145,165..RHD¥6,700199708-200108

MARK 1

main44325-32290iRZN168..SCB¥6,700199708-200108

MARK 2

main44325-32300iLN145,165..RHD¥6,700199708-200108

MARK 3

main44325-32310iRZN168..DCB;LN145,150,165,170,190,RZN173..LHD¥6,700199708-200108

MARK 4

main44325-35060iKDN145,150,165,170,190¥4,540200111

NO MARK

main44325-35070iKDN145,150,165,170,190¥4,540200111

MARK 1

main44325-35080iKDN145,150,165,170,190¥4,540200111

MARK 2

main44325-35090iKDN145,150,165,170,190¥4,540200111

MARK 3

main44325-35100iKDN145,150,165,170,190¥4,540200111

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iKDN145,150,165,170,190¥150200108

L=28,OD=4.0

main90250-04049iKDN145,150,165,170,190¥190200108

L=43,OD=4.0

main90250-04071iRZN168..SCB¥110199708-200108

L=23.3,OD=4.0

44327CGASKET, VANE PUMP HOUSING

main44327-26010iRZN168..DCB;LN145,150,165,170,190,RZN173..LHD¥460199708-200108

44330VALVE ASSY, FLOW CONTROL

main44330-26071iRZN168..SCB¥8,500199708-200108

MARK A

main44330-26081iRZN168..SCB¥8,500199708-200108

MARK B

main44330-26091iRZN168..DCB;LN145,150,165,170,190,RZN173..LHD¥8,500199708-200108

MARK C

main44330-26101iLN145,165..RHD¥8,500199708-200108

MARK D

main44330-26111iLN145,165..RHD¥8,500199708-200108

MARK E

main44330-26121iRZN168..SCB¥8,500199708-200108

MARK F

main44330-60070iKDN145,150,165,170,190¥8,500200108

MARK A

main44330-60080iKDN145,150,165,170,190¥8,500200108

MARK B

main44330-60090iKDN145,150,165,170,190¥8,500200108

MARK C

main44330-60100iKDN145,150,165,170,190¥8,500200108

MARK D

main44330-60110iKDN145,150,165,170,190¥8,500200108

MARK E

main44330-60120iKDN145,150,165,170,190¥8,500200108

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iKDN145,150,165,170,190¥160200108

main90501-13034iRZN168..DCB;LN145,150,165,170,190,RZN173..LHD¥160199708-200108

44337UNION, POWER STEERING SUCTION PORT

main44337-35070iLN145,165..RHD¥1,030199908-200108

main44337-35080iLN145,150,165,170,190..LHD¥1,870199708-200108

main44337-35100iKDN145,150,165,170,190¥1,870200108

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iRZN168..SCB¥140199708-200108

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iLN145,165..LHD¥300199708-199711

ID=19.5,OD=22.5

sub90301-19013¥260

main90301-19018iRZN168..SCB¥240199708-200108

ID=19.2,OD=22.3

44342PLATE, VANE PUMP SIDE, REAR

main44342-26020iRZN168..SCB¥1,530199708-200108

main44342-60020iKDN145,150,165,170,190¥2,570200108

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-18007iRZN168..SCB¥110199708-200108

INNER

main90301-47001iRZN168..DCB;LN145,150,165,170,190,RZN173..LHD¥170199708-200108

OUTER

main90301-53004iKDN145,150,165,170,190¥270200108

44345BPLATE, VANE PUMP

main44345-26010iLN145,165..RHD¥700199708-200108

L=15.000

main44345-26020iLN145,165..RHD¥700199708-200108

L=14.998

main44345-26030iLN145,165..RHD¥700199708-200108

L=14.996

main44345-26040iRZN168..SCB¥700199708-200108

L=14.994

main44345-26050iRZN168..DCB;LN145,150,165,170,190,RZN173..LHD¥700199708-200108

L=14.992

main44345-60010iKDN145,150,165,170,190¥350200108

L=15.000

main44345-60020iKDN145,150,165,170,190¥510200108

L=14.998

main44345-60030iKDN145,150,165,170,190¥510200108

L=14.996

main44345-60040iKDN145,150,165,170,190¥510200108

L=14.994

main44345-60050iKDN145,150,165,170,190¥510200108

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-35250iRZN168..SCB¥10,200199708-200108

main44360-35140iLN145..RHD..IV3¥10,300199708-200108

main44360-35150iLN145,150,165,170,190..LHD¥10,300199708-200108

9010508194

main90105-08194¥130

9011908035

main90119-08035¥110

9017812003

main90178-12003¥160

9020631001

main90206-31001¥160

9041006006

main90410-06006¥200
