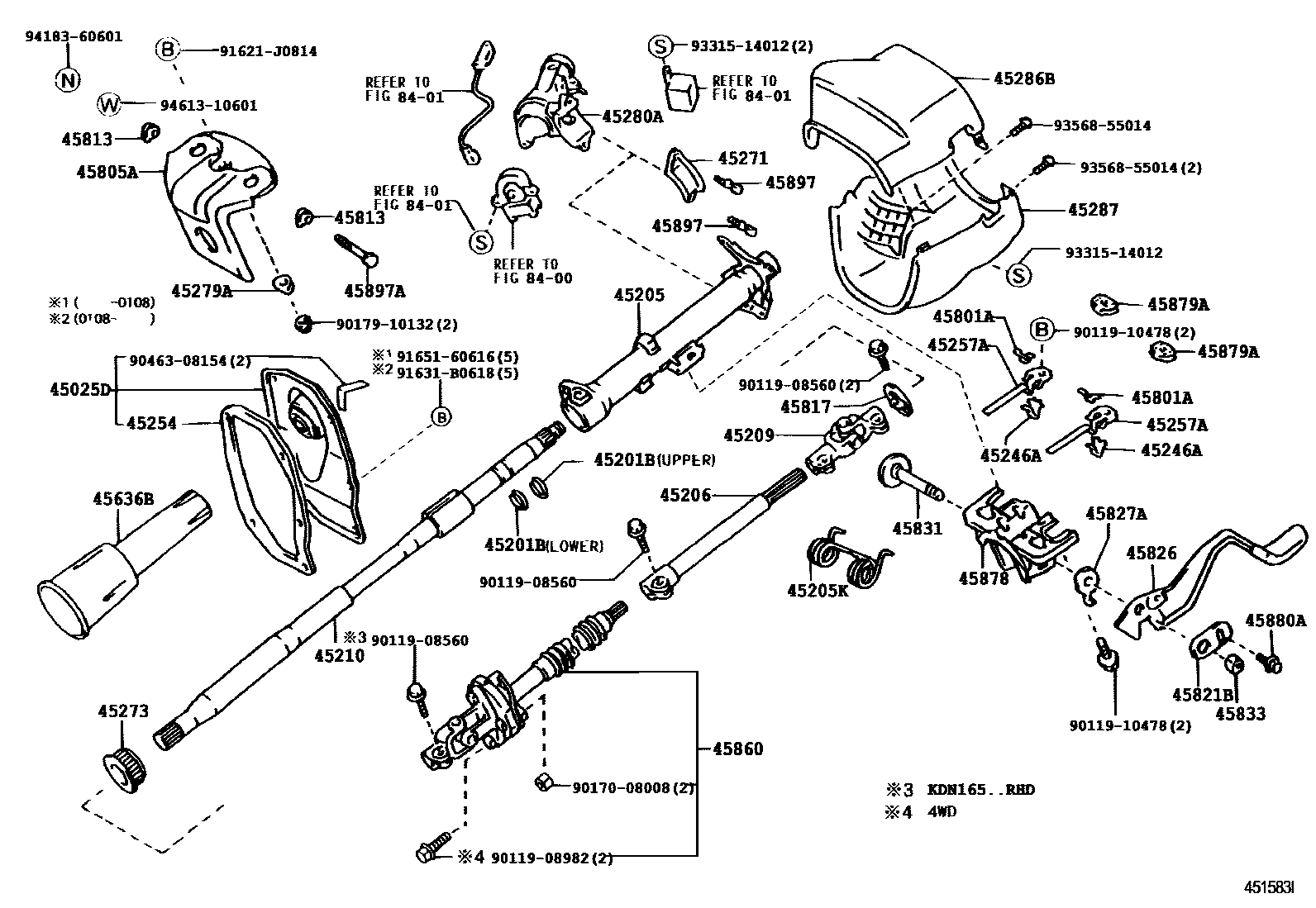

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45205TUBE SUB-ASSY, STEERING COLUMN
W(TILT STEERING)
45205KSPRING(FOR STEERING COLUMN TUBE)
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45254SHIELD, STEERING COLUMN HOLE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45286BCOVER, STEERING COLUMN, UPR
W(SEFT WARNING SYSTEM),BLACK,TRIM1#
W(THEFT-DETERRENT SYSTEM),BLACK,TRIM1#
ILLUMINATION PACKAGE OR PLATING PACKAGE,BLACK,TRIM1#
BLACK,TRIM1#
W(TILT STEERING),BLACK,TRIM1#
BLACK,TRIM1#
ILLUMINATION PACKAGE & W(TILT STEERING),BLACK,TRIM1#
W(THEFT-DETERRENT SYSTEM & TILT STEERING),BLACK,TRIM1#
ILLUMINATION PACKAGE OR PLATING PACKAGE & W(TILT STEERING),BLACK,TRIM1#
BLACK,TRIM1#
W(TILT STEERING),BLACK,TRIM1#
45287COVER, STEERING COLUMN, LWR
W(THEFT-DETERRENT SYSTEM),BLACK,TRIM1#
W(SEFT WARNING SYSTEM),BLACK,TRIM1#
ILLUMINATION PACKAGE OR PLATING PACKAGE,BLACK,TRIM1#
BLACK,TRIM1#
W(TILT STEERING),BLACK,TRIM1#
W(TILT STEERING & ANTI-THEFT DEVICE),BLACK,TRIM1#
BLACK,TRIM1#
W(THEFT-DETERRENT SYSTEM & TILT STEERING),BLACK,TRIM1#
ILLUMINATION PACKAGE OR PLATING PACKAGE & W(TILT STEERING),BLACK,TRIM1#
BLACK,TRIM1#
W(TILT STEERING),BLACK,TRIM1#
45636BPROTECTOR, INTERMEDIATE LINK JOINT
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45805ASUPPORT SUB-ASSY, TILT STEERING
W(TILT STEERING)
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=14
45817STOPPER, STEERING SHAFT THRUST
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
45827ALEVER, STEERING TILT SUB
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45860SHAFT ASSY, STEERING INTERMEDIATE, NO.2
sub45860-35181
W(POWER STEERING)
sub45860-35191
sub45860-35191
sub45860-35211
sub45860-35221
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45879ACAPSULE, BREAK AWAY
45880ABOLT(FOR STEERING TILT LEVER)
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8400
8401
9011908560
main90119-08560
9011908982
main90119-08982
9011910478
main90119-10478
9017008008
main90170-08008
9017910132
main90179-10132
9046308154
main90463-08154
91621J0814
main91621-J0814
91631B0618
main91631-B0618
9165160616
main91651-60616
9331514012
main93315-14012
9356855014
main93568-55014
9418360601
main94183-60601
9461310601
main94613-10601
47 parts on this diagram · 1 diagram in section
