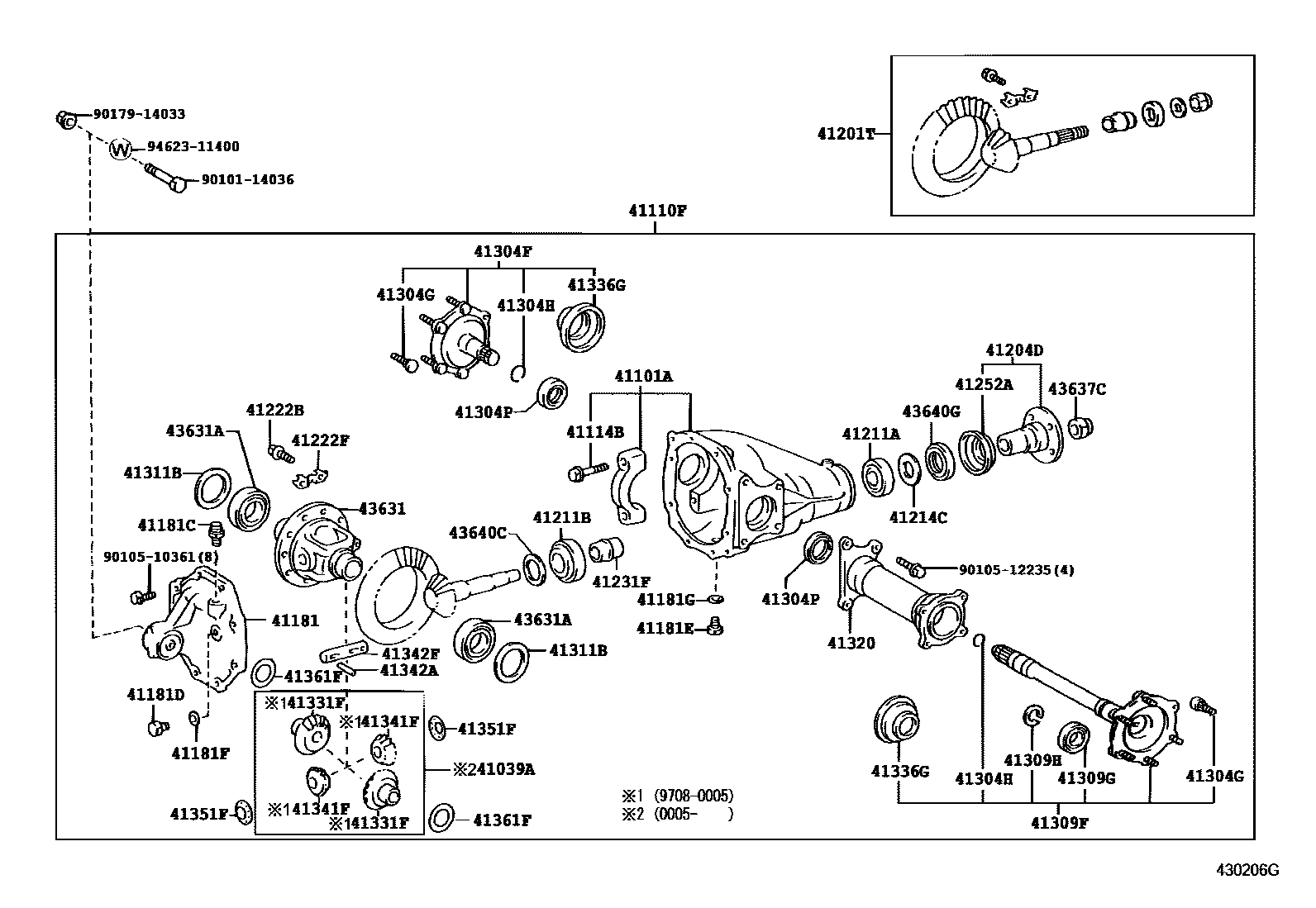

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1A.D.D 0004 1A.D.D 0005 1A.D.D, W(AIR CONDITIONER) 0006 1A.D.D 0007 1A.D.D 0008 1A.D.D 0009 1A.D.D

41039AGEAR KIT, DIFFERENTIAL

main41039-34030iLN165,170,RZN168,173¥12,700200005-200108

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-35060iLN165,170,RZN168,173¥43,000199708-200108

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-34250iKDN165,170¥167,000200108

*FGR=43:11=3.909,W(A.D.D)

main41110-35360iLN165,170,RZN168,173¥193,000199708-200108

*FGR=43:10=4.300

main41110-35450iLN165,170,RZN173..LHD¥290,000199708-200108

*FGR=43:10=4.300,W(A.D.D)

main41110-3D370iKDN165,170..LHD..(DCB,XTR)¥175,000200108

*FGR=43:11=3.909

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-12053iLN165,170,RZN168,173¥260199708-200108

41181COVER, FRONT DIFFERENTIAL CARRIER

main41108-35010iLN165,170,RZN168,173¥11,700199708-200108

main41108-35020iLN165,170,RZN173..LHD¥11,700199708-200108

W(A.D.D)

41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)

main90930-03031iRZN168..SCB¥370199708-200404

main90930-03077iKDN165,170¥450200404

41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)

main90341-18006iLN165,170,RZN168,173¥180199708-200108

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18030iLN165,170,RZN168,173¥190199807-200108

main90341-18057iLN165,170,RZN168,173¥350199708-199807

41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)

main12157-10010iKDN165,170¥100199708-200108

41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)

main12157-10010iLN165,170,RZN168,173¥100199708-200108

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-80004iLN165,170,RZN168,173¥62,800199708-200108

*FGR=43:10=4.300

main41201-80109iKDN165,170¥64,500200108-200508

*FGR=43:11=3.909

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35050iLN165,170,RZN168,173¥4,380199708-200108

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-30022iLN165,170,RZN168,173¥1,850199708-200206

sub90366-30078¥2,200

main90366-30078iKDN165,170¥2,200200206

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-35023iLN165,170,RZN168,173¥2,550199708-200108

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-30021iLN165,170,RZN168,173¥900199805-200011

main41214-35020iLN165,170,RZN168,173¥410199708-200108

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iLN165,170,RZN168,173¥120199708-200108

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030iLN165,170,RZN168,173¥120199708-200108

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iLN165,170,RZN168,173¥580199708-200108

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-30010iLN165,170,RZN168,173¥460199708-200108

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41304-35020iLN165,170,RZN168,173¥13,000199708-200108

41304GBOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90114-12011iLN165,170,RZN168,173¥240199708-200108

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iLN165,170,RZN173..LHD¥80199708-200108

W(A.D.D)

41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-35032iLN165,170,RZN168,173¥470199708-200508

41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41309-35010iLN165,170,RZN168,173¥16,900199708-200108

main41309-35021iKDN165,170¥20,100199708-200108

W(A.D.D)

41309GBEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90369-36009iLN165,170,RZN168,173¥3,630199708-200108

41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90520-33008iRZN168;LN165..RHD¥110199708-200108

OUTER

main96152-00300iKDN165,170¥80199708-200108

W(A.D.D),INNER

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90201-50003iLN165,170,RZN168,173¥610199708-200108

T=2.58

main90201-50004iKDN165,170¥610199708-200108

T=2.61

main90201-50005iKDN165,170¥610199708-200108

T=2.64

main90201-50006iLN165,170,RZN168,173¥610199708-200108

T=2.67

main90201-50007iKDN165,170¥610199708-200108

T=2.70

main90201-50008iKDN165,170¥610199708-200108

T=2.73

main90201-50009iLN165,170,RZN168,173¥610199708-200108

T=2.76

main90201-50010iKDN165,170¥610199708-200108

T=2.79

main90201-50011iLN165,170,RZN168,173¥610199708-200108

T=2.82

main90201-50012iKDN165,170¥610199708-200108

T=2.85

main90201-50013iKDN165,170¥610199708-200108

T=2.88

main90201-50014iLN165,170,RZN168,173¥610199708-200108

T=2.91

main90201-50015iLN165,170,RZN168,173¥610199708-200108

T=2.94

main90201-50016iKDN165,170¥610199708-200108

T=2.97

main90201-50017iKDN165,170¥700199708-200108

T=3.00

main90201-50018iLN165,170,RZN168,173¥700199708-200108

T=3.03

main90201-50019iLN165,170,RZN168,173¥700199708-200108

T=3.06

main90201-50020iLN165,170,RZN168,173¥700199708-200108

T=3.09

main90201-50021iKDN165,170¥700199708-200108

T=3.12

main90201-50022iLN165,170,RZN168,173¥700199708-200108

T=3.15

main90201-50023iLN165,170,RZN168,173¥700199708-200108

T=3.18

main90201-50024iKDN165,170¥700199708-200108

T=3.21

main90201-50025iKDN165,170¥700199708-200108

T=3.24

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-35011iLN165,170,RZN168,173¥10,900199708-200108

main41320-35020iLN165,170,RZN173..LHD¥10,900199708-200108

W(A.D.D)

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-14040iLN165,170,RZN168,173¥4,870199708-200005

sub41331-14041¥4,850

41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iLN165,170,RZN168,173¥350199708-200108

RH

main41336-28010iKDN165,170..LHD..(DCB,XTR)¥410199708-200108

LH

main41336-35010iKDN165,170¥680199708-200108

W(A.D.D),LH

41341FPINION, FRONT DIFFERENTIAL

main41341-30020iLN165,170,RZN168,173¥2,830199708-200005

sub41341-30050¥2,830

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iLN165,170,RZN168,173¥160199708-200108

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22020iLN165,170,RZN168,173¥1,240199708-200005

sub41342-22021¥810

main41342-22021iLN165,170,RZN168,173¥810200005-200108

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30060iKDN165,170¥140199708-200108

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040iLN165,170,RZN168,173¥240199708-200108

T=1.0

main41361-30050iKDN165,170¥240199708-200108

T=1.1

main41361-30060iLN165,170,RZN168,173¥240199708-200108

T=1.2

main41361-30070iKDN165,170¥240199708-200108

T=1.3

main41361-30080iLN165,170,RZN168,173¥230199708-200108

T=1.4

main41361-30090iLN165,170,RZN168,173¥230199708-200108

T=1.5

main41361-30100iKDN165,170¥230199708-200108

T=1.6

43631CASE, FRONT AXLE DIFFERENTIAL

main41311-22060iKDN165,170..LHD..(DCB,XTR)¥15,500199708-200108

main41311-35060iKDN165,170¥21,300199708-200108

W(A.D.D)

sub41311-34020¥24,400

43631ABEARING, FRONT AXLE DIFFERENTIAL

main90364-33009iLN165,170,RZN173..LHD¥1,650199708-200508

W(A.D.D),INNER

main90368-50006iLN165,170,RZN173..LHD¥2,940199708-200508

W(A.D.D),OUTER

43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)

main90179-18020iLN165,170,RZN168,173¥190199708-200108

43640CSPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST

main90201-35396iKDN165,170¥300199708-200108

T=2.36,MARK 05

main90201-35397iLN165,170,RZN168,173¥300199708-200108

T=2.39,MARK 06

main90201-35398iLN165,170,RZN168,173¥300199708-200108

T=2.42,MARK 07

main90201-35399iKDN165,170¥300199708-200108

T=2.43,MARK 08

main90201-35400iKDN165,170¥300199708-200108

T=2.48,MARK 09

main90201-35401iLN165,170,RZN168,173¥300199708-200108

T=2.51,MARK 10

main90201-35402iKDN165,170¥300199708-200108

T=2.54,MARK 11

main90201-35403iKDN165,170¥300199708-200108

T=2.57,MARK 12

main90201-35404iKDN165,170¥300199708-200108

T=2.60,MARK 13

main90201-35438iKDN165,170¥300199708-200108

T=2.63,MARK 14

main90201-35439iLN165,170,RZN168,173¥300199708-200108

T=2.66,MARK 15

main90201-35440iLN165,170,RZN168,173¥300199708-200108

T=2.69,MARK 16

main90201-35441iLN165,170,RZN168,173¥300199708-200108

T=2.72,MARK 17

main90201-35515iKDN165,170¥120199708-200108

OD=47,T=2.24,MARK 01

main90201-35516iKDN165,170¥120199708-200108

OD=47,T=2.27,MARK 02

main90201-35517iLN165,170,RZN168,173¥120199708-200108

OD=47,T=2.30,MARK 03

main90201-35518iLN165,170,RZN168,173¥120199708-200108

OD=47,T=2.33,MARK 04

43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)

main90311-38047iLN165,170,RZN168,173¥450199708-200108

9010114036

main90101-14036¥520

9010510361

main90105-10361¥110

9010512235

main90105-12235¥130

9017914033

main90179-14033¥240

9462311400

main94623-11400¥310

45 parts on this diagram · 8 diagrams in section
