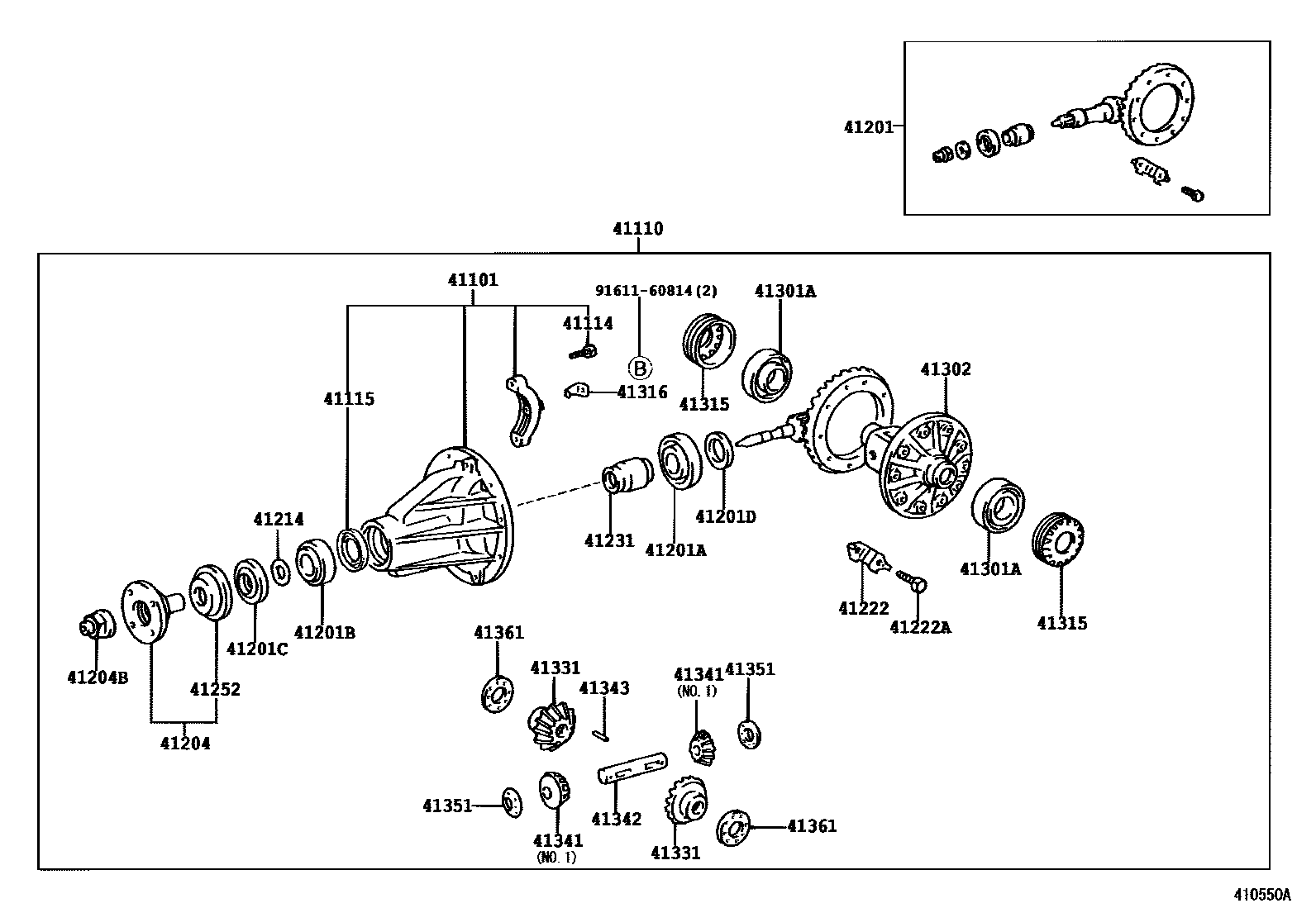

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1LIMITED SLIP DIFFERENTIAL 0004 1REAR DIFFERENTIAL LOCK 0006 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35031iKDN145,150199708-200508

main41101-35150iLN165..LHD199708-200508

W(REAR DIFFERENTIAL LOCK)

sub41101-35151

main41101-35170iLN165,170,190,RZN168,173199708-200508

sub41101-35171

sub41115-35010

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26440iKDN190199708-200508

*FGR=43:10=4.300

sub41110-26441

main41110-26620iKDN165,170..LHD200108-200508

*FGR=43:11=3.909

sub41110-26621

main41110-35202iKDN145,150199708-200508

*FGR=41:10=4.100

sub41110-26430

main41110-35431iKDN145,150200108-200508

*FGR=41:10=4.100,W(LSD)

sub41110-3D060

main41110-3D040iRZN168..DCB;LN165,170,RZN173199708-200508

*FGR=43:10=4.300,W(LSD)

sub41110-3D041

main41110-3D050iKDN165,170..LHD200108-200508

*FGR=43:11=3.909,W(LSD)

sub41110-3D051

main41110-3D070iKDN165,170200108-200508

*FGR=43:11=3.909,W(REAR DIFFERENTIAL LOCK)

sub41110-3D071

main41110-3D080iLN165..LHD199708-200108

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

sub41110-3D081

main41110-3D210iLN190199908-200108

*FGR=41:9=4.555,W(LSD)

sub41110-3D211

main41110-3D260iLN190199908-200108

*FGR=41:9=4.555

sub41110-3D261

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iLN145,150,165,170,190,RZN168,173199708-200508

41115RING, DIFFERENTIAL OIL STORAGE

main41115-35010iLN165,170,190,RZN168,173199708-200508

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29856iLN165,170,RZN168,173199708-199806

*FGR=43:10=4.300

sub41201-80104

main41201-39676iLN145,150199708-200201

*FGR=41:10=4.100

sub41201-39677

sub41204-35081

sub41214-26011

main41201-39677iKDN145,150200201-200508

*FGR=41:10=4.100

sub41201-80520

main41201-69465iLN165..LHD199708-200108

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

sub41201-69466

sub41204-35081

sub41214-26011

main41201-80100iKDN165,170..LHD200108-200201

*FGR=43:11=3.909,W(LSD)

sub41201-80177

sub41204-35081

sub41214-26011

main41201-80101iKDN165,170200108-200201

*FGR=43:11=3.909

sub41201-80178

sub41204-35081

sub41214-26011

main41201-80104iLN165,170,RZN168,173199808-200201

*FGR=43:10=4.300

sub41201-80181

sub41204-35081

sub41214-26011

main41201-80105iLN190199908-200108

*FGR=41:9=4.555

sub41201-80182

sub41204-35081

sub41214-26011

main41201-80109iKDN165,170..LHD200502-200508

*FGR=43:11=3.909

main41201-80177iKDN165,170..LHD200201-200508

*FGR=43:11=3.909,W(LSD)

sub41201-80723

main41201-80178iKDN165..RHD200201-200508

*FGR=43:11=3.909,W(REAR DIFFERENTIAL LOCK)

sub41201-80736

main41201-80178iKDN165,170..LHD200201-200508

*FGR=43:11=3.909

sub41201-80736

main41201-80181iKDN190200201-200508

*FGR=43:10=4.300

sub41201-80747

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35044iLN145,150199708-200508

main90366-35087iKDN165,170,190199708-200508

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iLN145,150199708-200206

sub90366-30078

main90366-30025iLN165..LHD199708-199801

sub90366-30067

main90366-30067iKDN165,170,190199708-200508

main90366-30078iLN145,150199708-200508

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iKDN145,150,165,170,190199708-200201

main90311-41009iKDN145,150,165,170,190200201-200508

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iKDN145,150,165,170,190199708-200508

OD=47,T=1.70

main90201-35498iKDN145,150,165,170,190199708-200508

OD=47,T=1.73

main90201-35499iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=1.76

main90201-35500iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=1.79

main90201-35501iKDN145,150,165,170,190199708-200508

OD=47,T=1.82

main90201-35502iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=1.85

main90201-35503iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=1.88

main90201-35504iKDN145,150,165,170,190199708-200508

OD=47,T=1.91

main90201-35505iKDN145,150,165,170,190199708-200508

OD=47,T=1.94

main90201-35506iKDN145,150,165,170,190199708-200508

OD=47,T=1.97

main90201-35507iKDN145,150,165,170,190199708-200508

OD=47,T=2.00

main90201-35508iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=2.03

main90201-35509iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=2.06

main90201-35510iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=2.09

main90201-35511iKDN145,150,165,170,190199708-200508

OD=47,T=2.12

main90201-35512iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=2.15

main90201-35513iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=2.18

main90201-35514iKDN145,150,165,170,190199708-200508

OD=47,T=2.21

main90201-35515iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=2.24,MARK 01

main90201-35516iKDN145,150,165,170,190199708-200508

OD=47,T=2.27,MARK 02

main90201-35517iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=2.30,MARK 03

main90201-35518iLN145,150,165,170,190,RZN168,173199708-200508

OD=47,T=2.33,MARK 04

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iLN145,150199708-200201

main41204-35080iLN165,170,190,RZN168,173199708-200201

main41204-35081iKDN145,150,165,170,190200201-200508

sub41204-35082

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iKDN145,150,165,170,190200201-200508

OD=39.5

main90179-20018iLN145,150,165,170,190,RZN168,173199708-200201

OD=37

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iLN145,150,165,170,190,RZN168,173199708-200201

main41214-26011iKDN145,150,165,170,190200201-200508

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iLN145,150,165,170,190,RZN168,173199708-200508

main41222-60010iKDN165,170199708-200508

W(REAR DIFFERENTIAL LOCK)

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iKDN145,150,165,170,190199708-200508

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iKDN165,170,190199708-200508

main41231-40011iKDN145,150199708-200508

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35020iKDN145,150199708-200201

main41252-35040iKDN165,170,190199708-200201

main41252-35041iKDN145,150,165,170,190200201-200508

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-60060iLN165..LHD199708-200108

sub41301-60061

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iLN165,170,190,RZN168,173199708-200108

main90366-50007iKDN165,170200108-200508

W(REAR DIFFERENTIAL LOCK),RH

main90366-75001iLN165..LHD199708-200508

W(REAR DIFFERENTIAL LOCK),LH

main90368-45066iKDN145,150199708-200508

main90368-50024iLN145,150..LHD199708-200508

W(LSD)

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35040iLN165;LN145,150,170,190,RZN168,173..LHD199708-200508

W(LSD)

sub41302-35041

sub90105-11063

main41311-40020iLN145,150199708-200508

sub41311-40021

sub90105-11063

main41311-60060iKDN165,170,190..LHD199708-200508

sub41311-60061

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010iKDN145,150199708-200508

main41315-35020iLN165,170,190,RZN168,173199708-200108

W(LSD)

main41315-35020iKDN165,170,190..LHD200108-200508

W(REAR DIFFERENTIAL LOCK),RH

main41315-60010iLN165..LHD199708-200508

W(REAR DIFFERENTIAL LOCK),LH

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010iLN145,150,165,170,190,RZN168,173199708-200508

41331GEAR, REAR DIFFERENTIAL SIDE

main41039-34060iLN165..LHD199708-200005

LH

main41039-34070iLN165;LN145,150,170,190,RZN168,173..LHD199708-200005

W(LSD)

main41331-35011iLN145,150,165,170,190,RZN168,173199708-200108

41341PINION, REAR DIFFERENTIAL

main41341-35020iLN145,150,165,170,190,RZN168,173199708-200108

main41341-35020iKDN165..LHD;KDN145,150,170,190200108-200508

NO.1

main41341-35070iKDN165,170200108-200508

NO.2

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iLN145,150,165,170,190,RZN168,173199708-200108

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iLN145,150,165,170,190,RZN168,173199708-200108

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iLN145,150,165,170,190,RZN168,173199708-200508

main41351-30060iLN190199908-200108

W(LSD)

main41351-30060iLN165;LN145,150,170,RZN168,173..LHD199708-200508

W(REAR DIFFERENTIAL LOCK OR LSD)

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-14200iLN165;LN145,150,170,190,RZN168,173..LHD199708-200108

T=1.80

sub41361-14201

main41361-14210iLN190199908-200108

T=1.70,MARK N,W(LSD)

sub41361-14211

main41361-35160iKDN165..LHD;KDN145,150,170,190200108-200302

T=1.8,W(LSD)

sub41361-35161

main41361-35160iLN165;LN145,150,170,190,RZN168,173..LHD199708-200108

T=1.8

sub41361-35161

main41361-35161iKDN165..LHD;KDN145,150,170,190200302-200508

T=1.8,W(LSD)

main41361-35310iKDN165,170200202-200508

T=0.9,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-35320iKDN165,170200202-200508

T=1.0,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-35330iKDN165,170200202-200508

T=1.1,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-35340iKDN165,170200202-200508

T=1.2,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-35350iKDN165,170200202-200508

T=1.3,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-40021iLN145,150,165,170,190,RZN168,173199708-200508

T=1.6

main41361-60290iLN165..LHD199708-200108

T=0.90

main41361-60290iKDN165,170200108-200508

T=0.90,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60300iKDN165,170200108-200508

T=1.00,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60300iLN165..LHD199708-200108

T=1.00

main41361-60310iLN165..LHD199708-200108

T=1.10

main41361-60310iKDN165,170200108-200508

T=1.10,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60320iKDN165,170200108-200508

T=1.20,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60320iLN165..LHD199708-200108

T=1.20

main41361-60330iKDN165,170200108-200508

T=1.30,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60330iLN165..LHD199708-200108

T=1.30

main41362-40021iLN145,150,165,170,190,RZN168,173199708-200508

T=1.7

main41363-40021iKDN165..LHD;KDN145,150,170,190199708-200508

T=1.8

9161160814

main91611-60814

28 parts on this diagram · 4 diagrams in section
