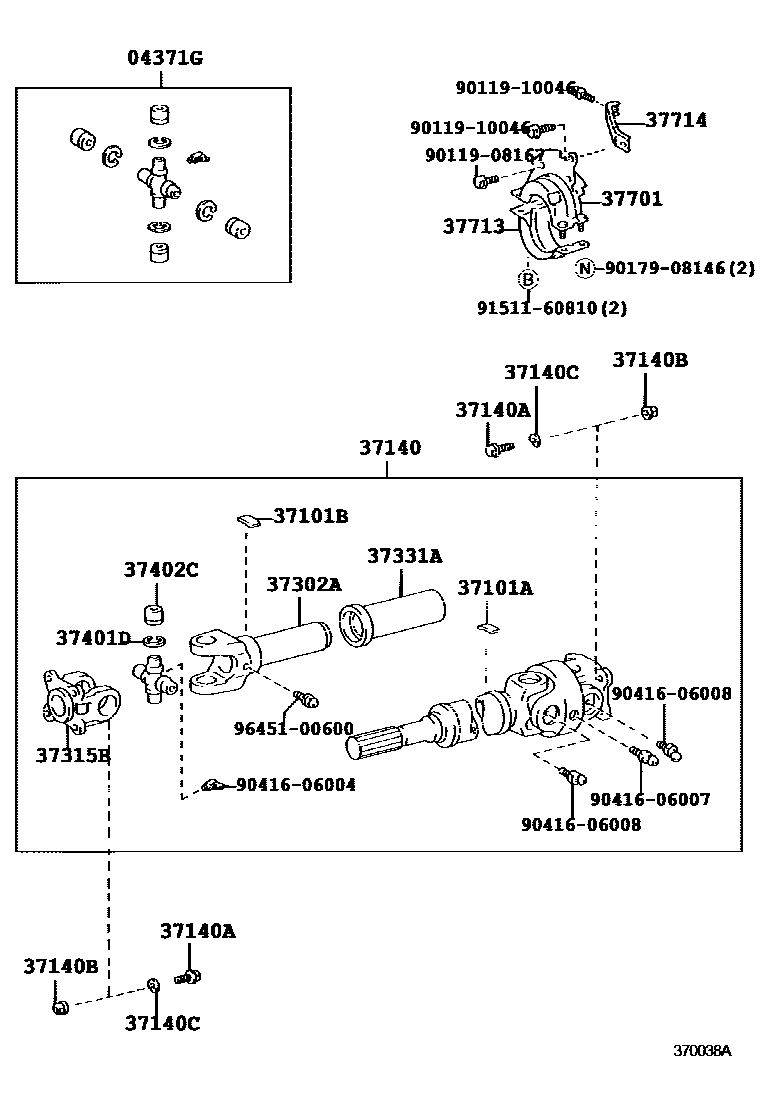

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1FRONT 0002 1FRONT 0003 1REAR 0004 1REAR 0005 1 0006 1REAR 0007 1REAR

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-35031iLN165,170,RZN168,173199708-199712

sub04371-35050

main04371-35050iLN165,170,RZN168,173199712-200008

sub04371-35051

main04371-35051iLN165,170,RZN168,173200008-200108

sub04371-60070

main04371-60070iKDN165,170200108-200508

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iKDN145,150,165,170,190199708-200108

10G,L=20.7

main90937-01136iLN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173199708-200108

20G,L=41.4

main90937-01147iKDN145,150,165,170,190199708-200108

2G,T=2.0

main90937-01148iKDN145,150,165,170,190199708-200108

4G,T=2.0

main90937-01149iKDN145,150,165,170,190199708-200108

6G,L=12.4

main90937-01150iKDN145,150,165,170,190199708-200108

8G,L=16.6

main90937-01151iKDN145,150,165,170,190199708-200108

12G,L=24.9

main90937-01152iRZN168..SCB;LN145..RHD..IV3199708-200108

14G,L=29.0

main90937-01153iLN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173199708-200108

16G,L=33.2

main90937-01154iRZN168..SCB;LN145..RHD..IV3199708-200108

18G,L=37.3

main90937-01155iLN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173199708-200108

22G,L=45.6

main90937-01156iKDN145,150,165,170,190199708-200108

24G,L=49.7

main90937-01157iKDN145,150,165,170,190199708-200108

26G,L=53.9

main90937-01158iRZN168..SCB;LN145..RHD..IV3199708-200108

28G,L=58.1

main90937-01201iLN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173199708-200108

30G,T=4.5,L=27.4

main90937-01202iKDN145,150,165,170,190199708-200108

32G,T=4.5,L=29.2

main90937-01203iLN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3199708-200108

34G,T=4.5,L=31.0

main90937-01204iLN145..RHD..IV3199708-200108

36G,T=4.5,L=32.9

main90937-01205iLN145..LHD..SCB;LN145..RHD..CBU;LN145,150..(DCB,XTR)..DLX..CBU199708-200108

38G,T=4.5,L=34.7

main90937-01206iLN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3199708-200108

40G,T=4.5,L=36.5

main90937-01207iLN145..RHD..IV3199708-200108

42G,T=4.5,L=38.4

main90937-01208iLN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3199708-200108

44G,T=4.5,L=40.2

main90937-01209iKDN145,150,165,170,190199708-200108

46G,T=4.5,L=42.0

main90937-01210iLN145..RHD..IV3199708-200108

48G,T=4.5,L=43.8

main90937-01211iKDN145,150,165,170,190199708-200108

50G,T=4.5,L=45.7

main90937-01396iKDN165,170200403

16G,T=4.5,L=14.6

main90937-01397iKDN165,170200403

18G,T=4.5,L=16.4

main90937-01398iKDN165,170200403

20G,T=4.5,L=18.3

main90937-01399iKDN165,170200403

22G,T=4.5,L=20.1

main90937-01400iKDN165,170200403

24G,T=4.5,L=21.9

main90937-01401iKDN165,170200403

26G,T=4.5,L=23.7

main90937-01402iKDN165,170200403

28G,T=4.5,L=25.6

37101BPIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT)

main90937-01184iRZN168..SCB199708-200108

4G,T=1.6

main90937-01191iRZN168..DCB;LN165,170,RZN173199708-200108

8G,T=1.6

main90937-01192iKDN165,170199708-200108

12G,T=4.5

main90937-01193iRZN168..SCB199708-200108

16G,T=4.5

main90937-01194iRZN168..DCB;LN165,170,RZN173199708-200108

20G,T=4.5

main90937-01198iRZN168..DCB;LN165,170,RZN173199708-200108

24G,T=4.5,L=25.1

main90937-01199iKDN165,170199708-200108

28G,T=6,L=22.7

main90937-01200iRZN168..DCB;LN165,170,RZN173199708-200108

32G,T=6,L=24.3

main90937-01268iRZN168..SCB199708-200108

36G,L=23.1,T=8.0

main90937-01269iRZN168..SCB199708-200108

40G,L=25.6

main90937-01270iRZN168..SCB199708-200108

44G,L=22.6

main90937-01271iRZN168..SCB199708-200108

48G,L=24.6

main90937-01272iRZN168..SCB199708-200108

52G,L=26.7

main90937-01273iRZN168..DCB;LN165,170,RZN173199708-200108

56G,L=28.7

main90937-01274iRZN168..SCB199708-200108

60G,L=28.7

37140SHAFT ASSY, PROPELLER, FRONT

main37140-35071iKDN165,170199708-200108

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-10085iKDN165,170199708-200108

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90179-10059iKDN165,170199708-200108

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90204-10002iLN165,170,RZN168,173199708-200108

sub90560-10H00

37302AYOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE

main37302-35050iLN165,170,RZN168,173199708-200108

37315BY0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE

main37315-35040iLN165,170,RZN168,173199708-200006

main37315-35070iLN165,170,RZN168,173200006-200108

37331ACOVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUST

main37305-35020iKDN165,170199708-200108

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-25039iLN165,170,RZN168200006-200108

T=2.29,MARK 1

main90520-25040iLN165,170,RZN168200006-200108

T=2.31,MARK 2

main90520-25041iRZN173200006-200108

T=2.33,NO MARK

main90520-25042iLN165,170,RZN168200006-200108

T=2.35,BROWN

main90520-25043iRZN173200006-200108

T=2.37,BLUE

main90520-25044iRZN173200006-200108

T=2.39,MARK 6

main90520-25045iRZN173200006-200108

T=2.41,MARK 7

main90520-25046iRZN173200006-200108

T=2.43,MARK 8

main90520-25047iRZN173200006-200108

T=2.45,MARK 9

main90520-25048iLN165,170,RZN168200006-200108

T=2.47,MARK 10

main90520-25049iLN165,170,RZN168200006-200108

T=2.49,MARK A

main90520-25050iRZN173200006-200108

T=2.51,MARK B

main90520-25051iLN165,170,RZN168200006-200108

T=2.53,MARK C

main90520-25052iRZN173200006-200108

T=2.55,MARK D

main90520-25053iLN165,170,RZN168200006-200108

T=2.57,MARK E

main90520-25054iLN165,170,RZN168200006-200108

T=2.19,MARK D

main90520-25055iRZN173200006-200108

T=2.21,MARK E

main90520-25056iLN165,170,RZN168200006-200108

T=2.23,MARK F

main90520-25057iRZN173200006-200108

T=2.25,MARK G

main90520-25058iLN165,170,RZN168200006-200108

T=2.27,MARK H

main90520-26038iRZN173199708-199712

T=2.125,MARK 1

main90520-26040iLN165,170,RZN168199708-199712

T=2.175,MARK 2

main90520-26041iRZN173199708-199712

T=2.225,MARK 3

main90520-26042iLN165,170,RZN168199708-199712

T=2.275,MARK 4

main90520-26043iLN165,170,RZN168199708-199712

T=2.325,MARK 5

main90520-26044iLN165,170,RZN168199708-199712

T=2.375,MARK 6

main90520-26045iLN165,170,RZN168199708-199712

T=2.425,MARK 7

main90520-26046iRZN173199708-199712

T=2.475,MARK 8

main90520-26050iLN165,170,RZN168,173199712-200006

T=2.44-2.46

sub90520-25039

main90520-26051iLN165,170,RZN168,173199712-200006

T=2.46-2.48

sub90520-25040

main90520-26052iLN165,170,RZN168,173199712-200006

T=2.28-2.30

sub90520-25041

main90520-26053iLN165,170,RZN168,173199712-200006

T=2.30-2.32

sub90520-25042

main90520-26054iLN165,170,RZN168,173199712-200006

T=2.32-2.34

sub90520-25043

main90520-26055iLN165,170,RZN168,173199712-200006

T=2.34-2.36

sub90520-25044

main90520-26056iLN165,170,RZN168,173199712-200006

T=2.36-2.38

sub90520-25045

main90520-26057iLN165,170,RZN168,173199712-200006

T=2.38-2.40

sub90520-25046

main90520-26058iLN165,170,RZN168,173199712-200006

T=2.40-2.42

sub90520-25047

main90520-26059iLN165,170,RZN168,173199712-200006

T=2.42-2.44

sub90520-25048

main90520-26062iLN165,170,RZN168199806-200006

T=2.18-2.20

sub90520-25049

main90520-26063iLN165,170,RZN168199806-200006

T=2.20-2.22

sub90520-25050

main90520-26064iRZN173199806-200006

T=2.22-2.24

sub90520-25051

main90520-26065iLN165,170,RZN168199806-200006

T=2.24-2.26

sub90520-25052

main90520-26066iLN165,170,RZN168199806-200006

T=2.26-2.28

sub90520-25053

main90520-26067iRZN173199806-200006

T=2.48-2.50

sub90520-25054

main90520-26068iRZN173199806-200006

T=2.50-2.52

sub90520-25055

main90520-26069iLN165,170,RZN168199806-200006

T=2.52-2.54

sub90520-25056

37402CBEARING, FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER

main37402-30011iKDN165,170199708-200306

NO PAINT

sub04371-60070

sub04371-60100

main37402-30011iRZN173199711-200108

sub04371-60070

sub04371-60100

main37402-30021iRZN173199708-200306

RED PAINTED

sub04371-60070

sub04371-60100

37701COVER SUB-ASSY, PROPELLER SHAFT DUST

main37701-35071iLN165,170,RZN168,173199708-200108

main37701-35110iKDN165,170200108

37713COVER, PROPELLER SHAFT DUST, NO.2

main37713-35070iLN165,170,RZN168,173199708-200108

37714STAY, PROPELLER SHAFT DUST COVER

main37714-35051iLN165,170,RZN168,173199708-200108

9011908167

main90119-08167

9011910046

main90119-10046

9017908146

main90179-08146

9041606004

main90416-06004

9041606007

main90416-06007

9041606008

main90416-06008

9151160810

main91511-60810

9645100600

main96451-00600

23 parts on this diagram · 7 diagrams in section
