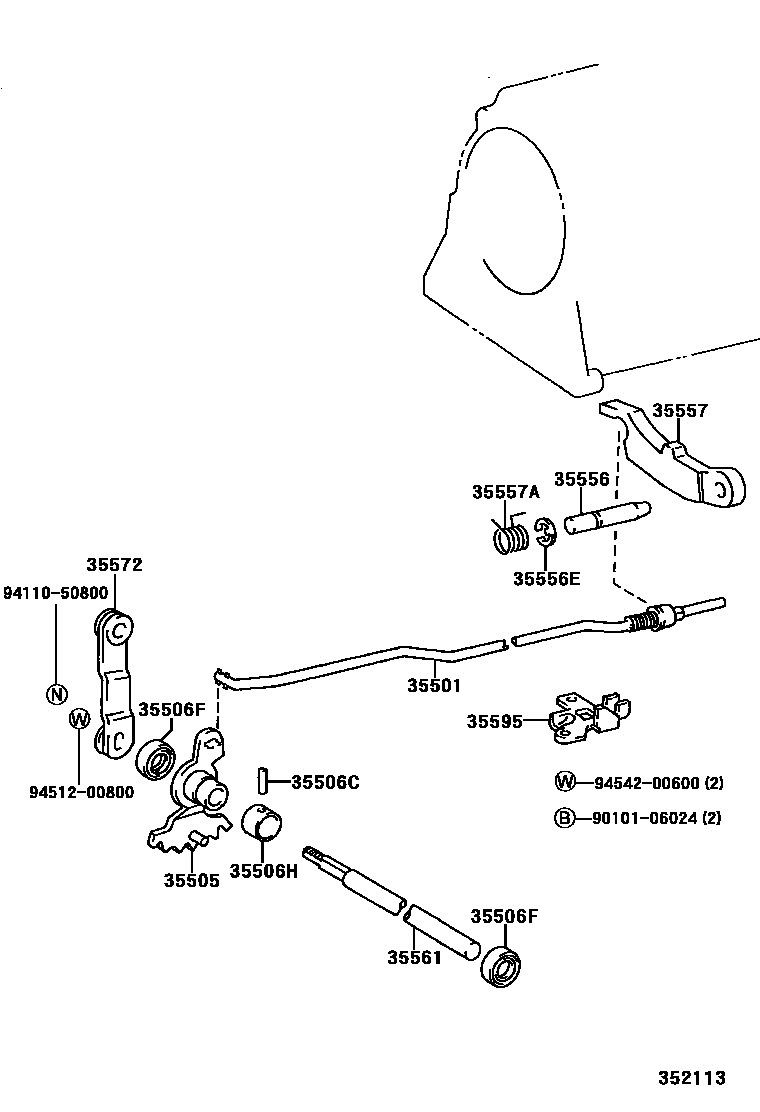

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A43DL 0002 1A43DL 0003 1A340E

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iLN190199908-200108

main35501-60010iKDN190200108-200508

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-28010iLN190199908-200108

main35505-30020iKDN190200108-200508

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iLN190199908-200508

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003iLN190199908-200108

main90311-12002iKDN190200108-200508

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iLN190199908-200108

sub90560-20025

main90560-20006iKDN190200108-200302

main90560-20025iKDN190200302-200508

35556SHAFT, PARKING LOCK PAWL

main35556-26010iLN190199908-200108

main35556-30020iKDN190200108-200508

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iLN190199908-200508

35557PAWL, PARKING LOCK

main35557-26031iLN190199908-200108

main35557-60020iKDN190200108-200508

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iLN190199908-200108

main90508-21002iKDN190200108-200508

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iKDN190200108-200508

main35561-40010iLN190199908-200108

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-35040iLN190199908-200508

35595BRACKET, PARKING LOCK PAWL

main35595-26010iLN190199908-200108

main35595-60010iKDN190200108-200508

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 3 diagrams in section
