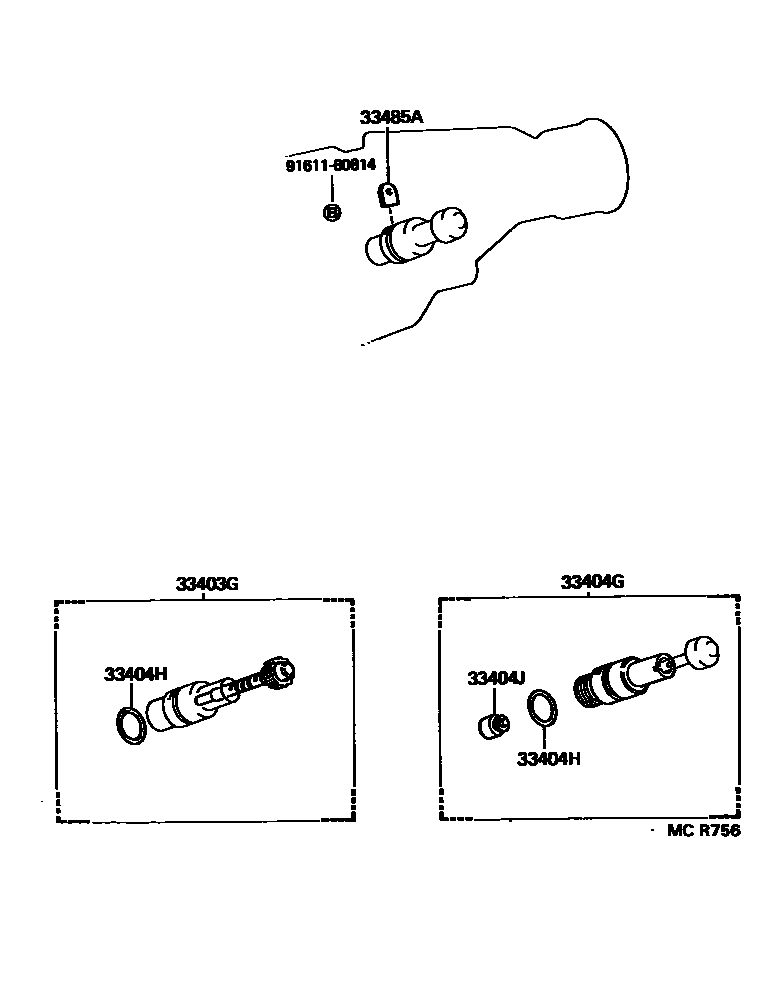

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-69135iLN190199908-200108

N=19,MARK 19:6

main33403-69195iKDN190200108

N=18,MARK 18:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLN190199908-200108

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iLN190199908-200108

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLN190199908-200108

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iLN190199908-200108

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
