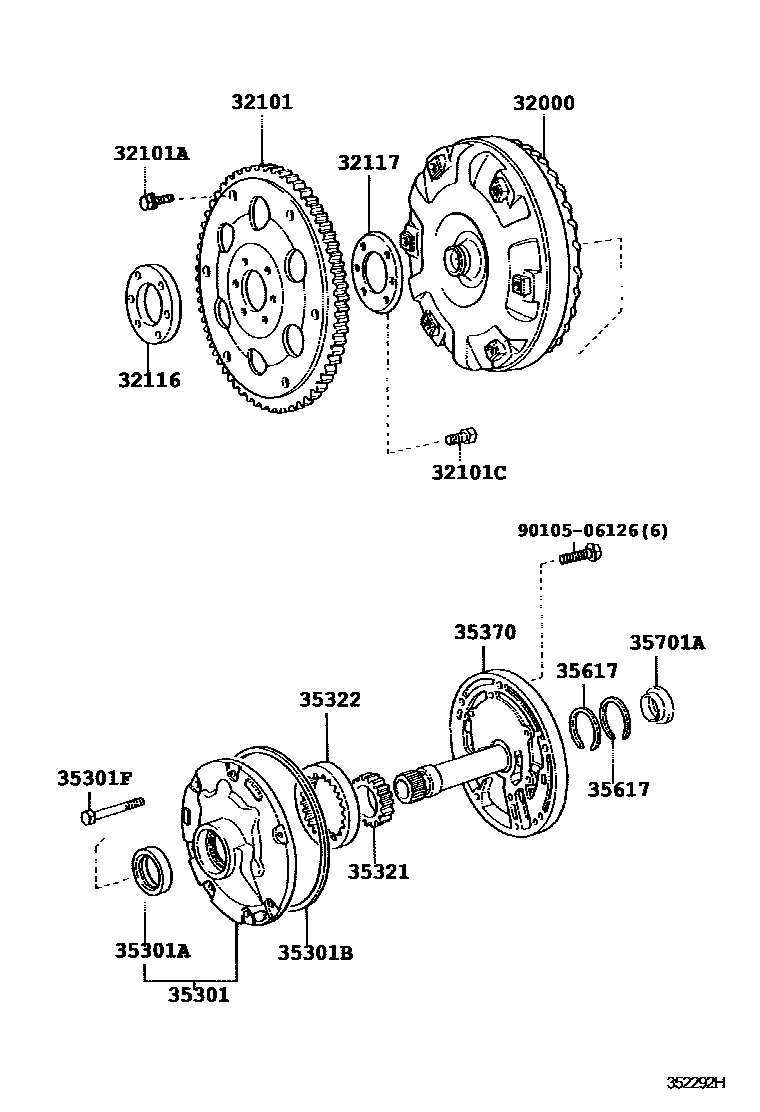

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.8-8.8,YELLOW
*9-1.25PX12.8-9,GREEN
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*13-1.5PX43.5-23.5
35301BODY SUB-ASSY, FRONT OIL PUMP
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX35-35
35321GEAR, FRONT OIL PUMP DRIVE
T=10.690-10.699
T=10.700-10.709
T=10.710-10.720
T=10.721-10.730
T=10.731-10.740
T=17.244-17.235
T=17.254-17.245
T=17.265-17.255
T=17.275-17.266
T=17.285-17.276
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.690-10.699
T=10.700-10.709
T=10.710-10.720
T=10.721-10.730
T=10.731-10.740
T=17.244-17.235
T=17.254-17.245
T=17.265-17.255
T=17.275-17.266
T=17.285-17.276
35617RING, CLUTCH DRUM OIL SEAL
35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)
9010506126
main90105-06126
16 parts on this diagram · 2 diagrams in section
