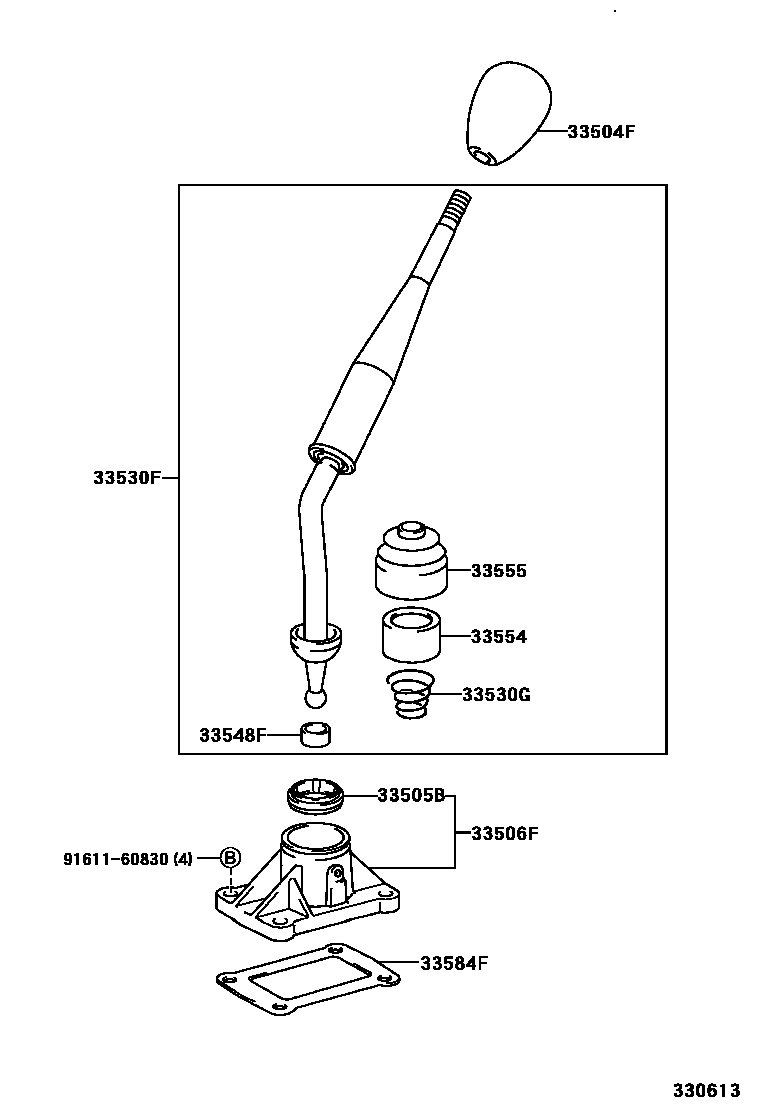

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B2iKDN145,150,165,170200108

MD.MOON MIST,TRIM1#

sub33504-12180¥3,810

main33504-20100-B1iLN145,150,165,170,RZN168,173199708-200108

MD.MOON MIST,TRIM1#

sub33504-24010¥1,710

sub33504-20100¥2,980

main33542-20150-B1iLN190199908-200108

MD.MOON MIST,TRIM1#

sub33542-20150¥4,910

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35020iLN145,150¥510199708-200508

main33505-35030iKDN165,170¥1,380200108-200508

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-35070iKDN145,150¥4,190199708-200508

main33506-35100iLN165,170,RZN168,173¥4,980199708-200106

main33506-35140iKDN165,170¥4,140200108-200508

main33506-35160iLN165,170,RZN168,173¥4,970200106-200108

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-35400iLN165..RHD¥10,700199708-200108

main33530-35410iLN165,170..LHD¥10,700199708-200108

main33530-35420iRZN168,173¥9,100199708-200108

main33530-35460iLN145..RHD¥10,700199708-200108

main33530-35510iLN145,150..LHD¥10,700199708-200108

main33530-35530iKDN165..RHD¥9,100200108-200508

sub33530-35531

main33530-35560iKDN145,150..LHD¥8,800200108-200508

main33530-35570iKDN145,150..RHD¥10,700200108-200303

main33530-35590iKDN165,170..LHD¥9,100200108-200508

sub33530-35591

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26007iLN145,150,165,170,RZN168,173¥220199708-200508

main90502-26008iKDN165,170¥190200108-200508

sub90502-26009¥120

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iLN145,150,165,170,RZN168,173¥270199708-200508

33554CAP, SHIFT LEVER

main33554-30012iKDN165;KDN145,150,170..LHD¥750199708-200508

33555BOOT, SHIFT LEVER

main33555-35040iLN145,150¥580199708-200508

main33555-35100iKDN190¥2,010199908-200508

main33555-60030iLN165,170,RZN168,173¥580199708-200508

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-60010iLN145,150¥280199708-200508

9161160830

main91611-60830¥100

10 parts on this diagram · 4 diagrams in section
