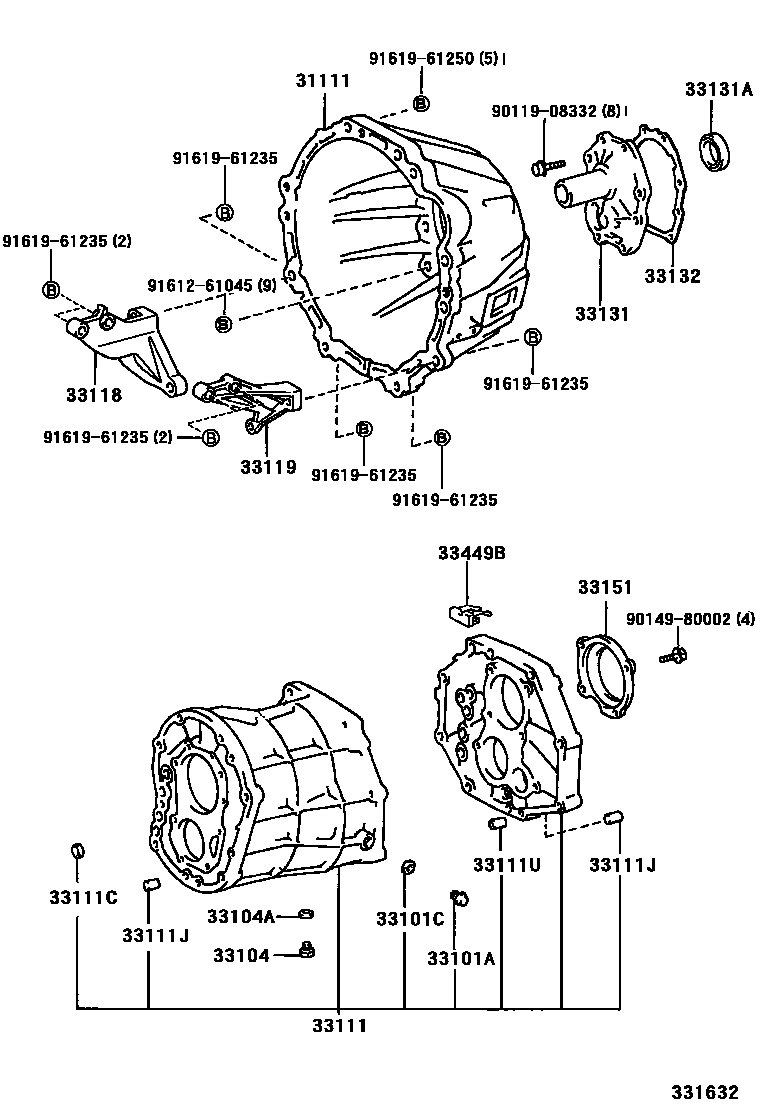

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G50 0002 1R151 0003 1G58 0004 1W56 0005 1W56

31111HOUSING, CLUTCH

main31111-22114iLN145,150199708-200108

main31111-25050iKDN145,150200108-200508

main31111-26032iRZN168,173199708-200108

main31111-35032iLN165,170199708-200108

main31111-35101iKDN165,170200108-200508

sub31111-35102

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKDN145,150,165,170199708-200508

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iLN145,150,165,170,RZN168,173199708-200508

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLN165,170,RZN168,173199708-200508

main90341-18057iLN145,150199708-200508

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKDN145,150,165,170199708-200508

33111CASE, MANUAL TRANSMISSION

main33101-30071iLN165,170,RZN168,173199708-200108

main33101-35050iLN145,150199708-200501

sub33101-35051

main33101-35051iKDN145,150200501-200508

sub33101-71020

main33101-35100iKDN165,170200108-200202

sub33101-60040

main33101-60040iKDN165,170200202-200508

sub33101-60041

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iKDN165,170199708-200508

OD=14

main96411-41800iLN165,170,RZN168,173199708-200508

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iKDN165,170199708-200508

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iKDN145,150199708-200508

L=14,OD=15

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLN145,150199708-200108

main33118-26011iRZN168,173199708-200108

main33118-35060iLN165,170199708-200108

main33118-35070iKDN145,150200108

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLN145,150,170199708-200108

main33119-25070iKDN145,150200108

main33119-26021iRZN168,173199708-200108

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iKDN145,150199708-200508

main33131-30080iLN165,170,RZN168,173199708-200108

main33131-35031iKDN165,170200108-200508

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLN145,150,165,170,RZN168,173199708-200508

main90311-32012iKDN165,170200108-200508

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLN145..RHD..IV3199708-200508

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iLN165,170,RZN168,173199708-200010

main33151-30051iLN165,170,RZN168,173200010-200108

main33151-35020iKDN165,170200108-200508

main33151-35030iLN145,150199708-200508

33449BMAGNET, TRANSMISSION

main33449-26010iLN145,150199708-200508

main33449-30010iLN165,170,RZN168,173199708-200108

REAR

main33449-30020iLN165,170,RZN168,173199708-200108

FRONT

main33449-35030iKDN165,170200108-200508

9011908332

main90119-08332

9014980002

main90149-80002

9161261045

main91612-61045

9161961235

main91619-61235

9161961250

main91619-61250

21 parts on this diagram · 5 diagrams in section
