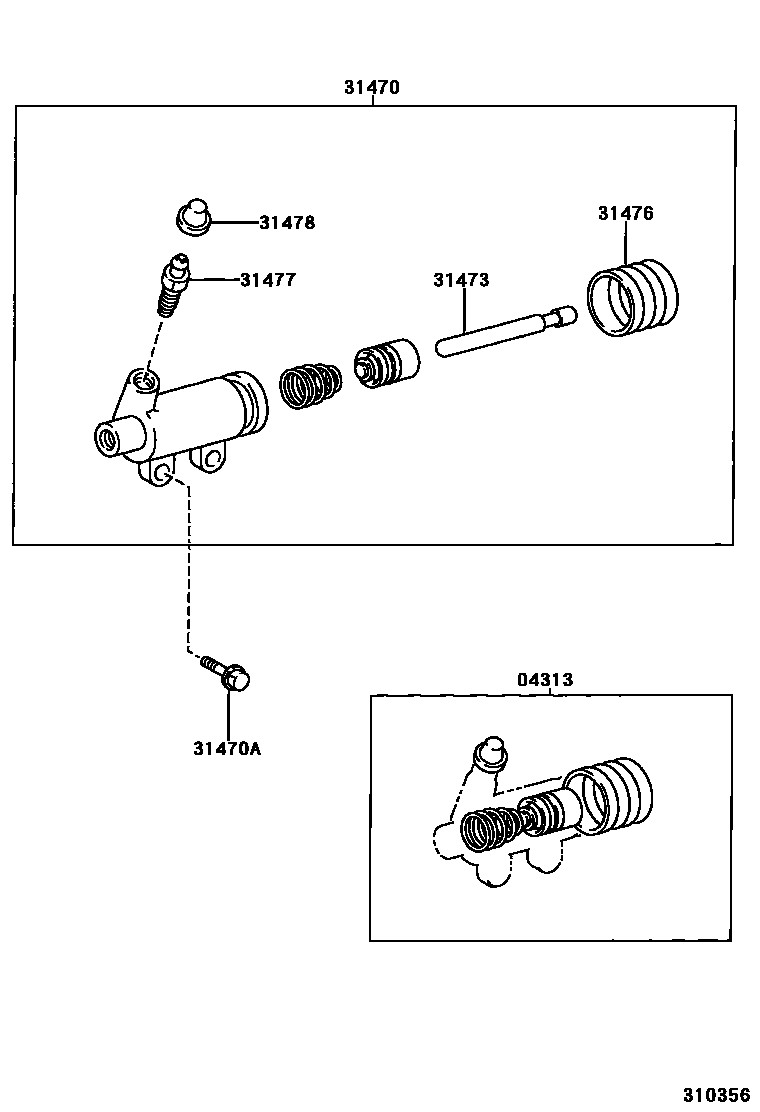

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iRZN168,173199708-200108

main04313-18020iKDN145,150,165,170200108-200212

main04313-35060iKDN165,170200212-200508

main04313-52020iKDN145,150200212-200508

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-30222iLN145,150199708-200108

main31470-35130iRZN168,173199708-200108

sub31470-43010

main31470-35150iLN165,170199708-200108

main31470-35160iKDN145,150200108-200508

main31470-35170iKDN165,170200108-200508

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iLN145,150,RZN168,173199708-200108

*8-1.25PX25-25

main91651-40825iLN165,170199708-200508

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iRZN168,173199708-200508

main31473-35050iLN145,150,165,170199708-200108

main31473-60141iKDN145,150,165,170200108-200212

sub31473-60142

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLN145,150,165,170,RZN168,173199708-200508

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLN145,150,165,170,RZN168,173199708-200508

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLN145,150,165,170,RZN168,173199708-200508

7 parts on this diagram · 3 diagrams in section
