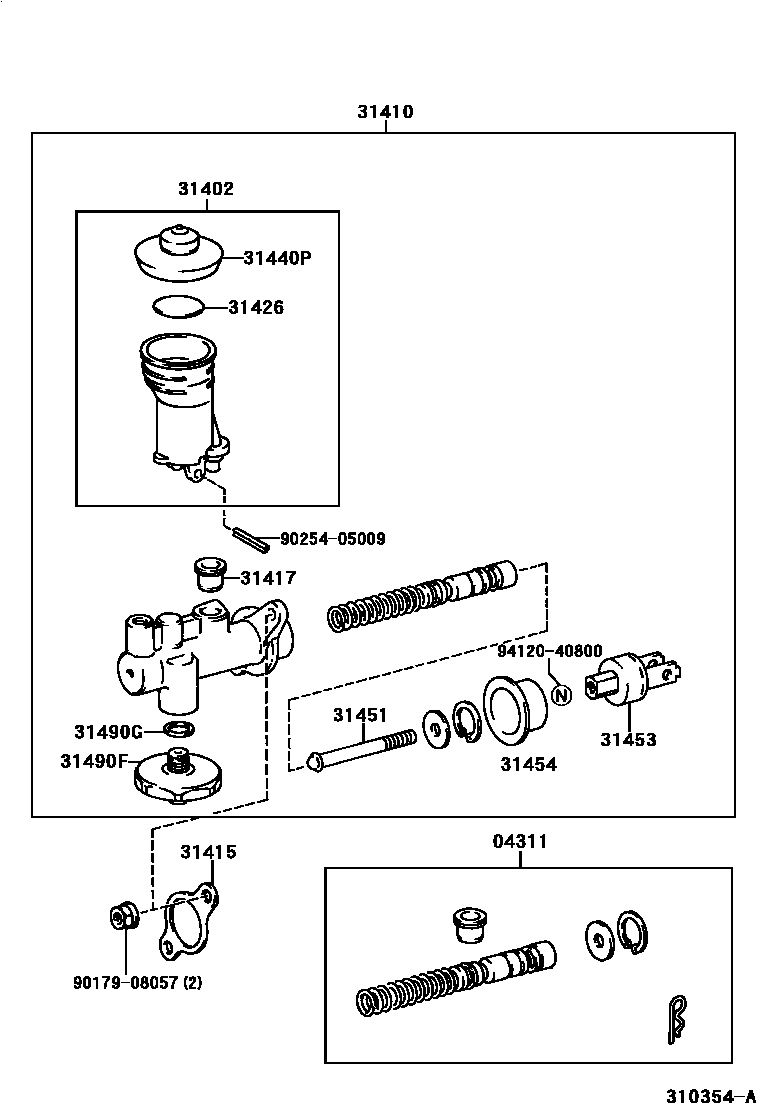

CLUTCH MASTER CYLINDER

0001 1 0002 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-26070iLN165..RHD;LN145,150,RZN168,173199708-200504

main04311-34010iLN165,170..LHD199708-200108

main04311-34020iKDN145,150,165,170200504

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35120iLN145,150,RZN168,173199708-200108

main31402-35130iKDN145,150,165..RHD199708-200108

sub31402-60070

main31402-35140iLN165,170..LHD199708-200108

31410CYLINDER ASSY, CLUTCH MASTER

main31410-34012iLN145..RHD;RZN168,173199809-200108

main31410-35360iKDN145,150,165..RHD199708-200108

main31410-35450iLN165,170..LHD199708-199810

sub31410-35451

main31410-35451iLN165,170..LHD199810-200108

main31410-60571iLN145,150..LHD199708-200108

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iLN145,150,165,170,RZN168,173199708-200108

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iKDN145,150,165,170199708-200108

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iKDN145,150,165,170199708-200108

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iLN145,150,165,170,RZN168,173199708-200108

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35080iKDN145,150,165..RHD199708-200108

main31451-36040iLN165,170199708-200112

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-22030iLN165,170..LHD199708-199807

sub31404-35030

main31404-28020iLN165..RHD;LN145,150,RZN168,173199708-200108

main31404-35030iLN165,170..LHD199807-200108

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iKDN145,150,165,170199708-200108

31490FACCUMULATOR ASSY, MASTER CYLINDER

main31490-60100iLN145,150..LHD199708-200108

sub31490-60101

31490GGASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)

main90430-16005iLN145,150..LHD199708-200108

9017908057

main90179-08057

9025405009

main90254-05009

9412040800

main94120-40800

15 parts on this diagram · 3 diagrams in section
