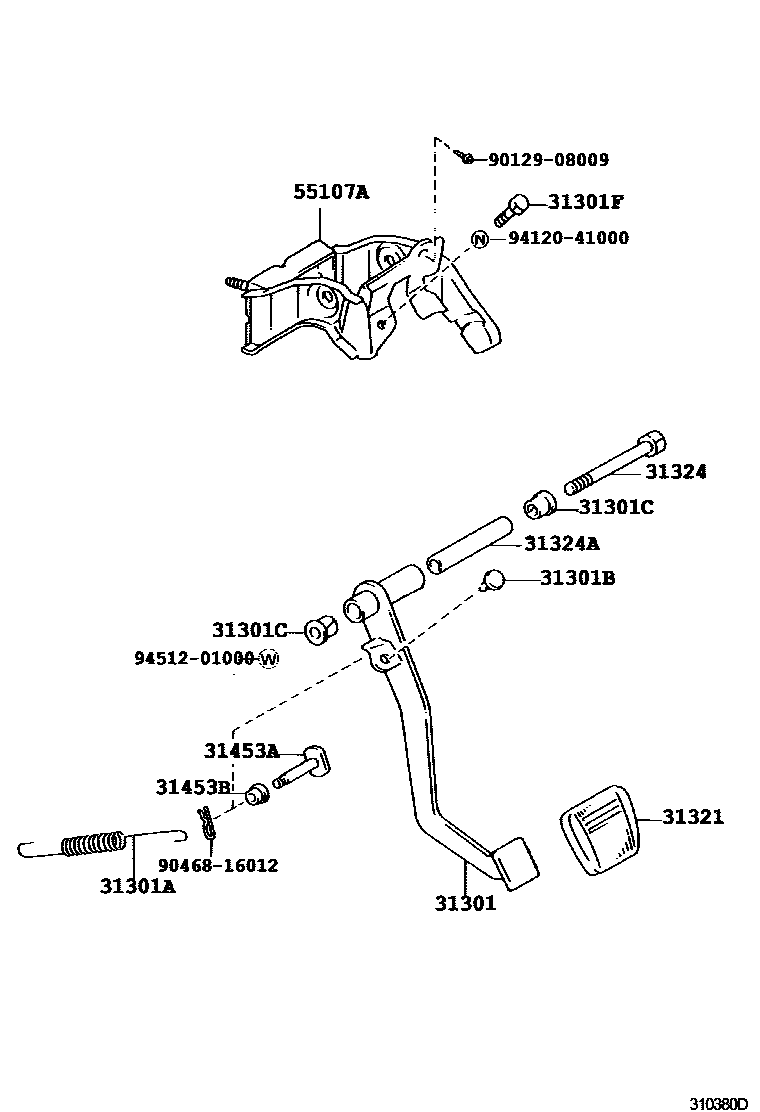

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-35240iKDN145,150..RHD199708-200508

main31301-35250iRZN168..SCB199708-200009

main31301-35251iLN145,150,165,170,RZN168,173..LHD200009-200508

main31310-35051iKDN165,170..LHD200108-200508

main31310-35060iKDN165..RHD200108-200508

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14030iLN145,150,165,170,RZN168,173199708-200508

main90949-03017iKDN165..RHD200108-200508

NO.2

main90949-03035iKDN165..RHD200108-200508

NO.1

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iRZN168..SCB;LN145..RHD..IV3199708-200508

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iLN145,150,165,170,RZN168,173199708-200508

main90386-13015iKDN165..RHD200108-200508

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKDN145,150,165,170199708-200508

31321PAD, CLUTCH PEDAL

main31321-14020iLN145,165..RHD..CBU199708-200508

main31321-52010iLN145,150,165,170,RZN168,173..LHD200009-200508

31324SHAFT, CLUTCH PEDAL

main90101-10177iLN145,165..RHD199708-200508

main91121-51090iKDN165,170..LHD200108-200508

main91121-61070iLN145,150,165,170,RZN168,173..LHD199708-200508

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10027iLN145,150,165,170,RZN168,173..LHD199708-200508

main90387-10082iLN145,165..RHD199708-200508

main90387-10121iKDN165,170..LHD200108-200508

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-34010iLN145,150,165,170,RZN168,173199708-200508

L=27

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iLN145,150,165,170,RZN168,173199708-200508

main90386-08033iKDN165..RHD200108-200508

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-35080iKDN145,150..LHD199708-200108

main55107-35090iKDN165,170..LHD200108

main55107-35100iLN145,165..RHD199708-200108

sub55107-35110

main55107-35110iKDN145,150..RHD200108

main55107-60170iKDN165..RHD200108

9012908009

main90129-08009

9046816012

main90468-16012

9412041000

main94120-41000

9451201000

main94512-01000

15 parts on this diagram · 10 diagrams in section
